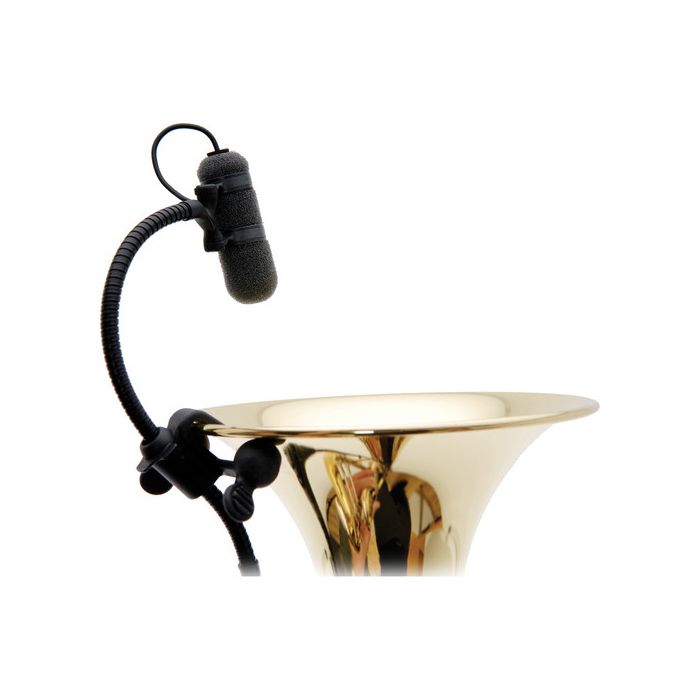

DPA VO4099T d:vote 4099 Clip Microphone for Brass
by DPAFor Trumpet, Trombone, or Other Brass, Fits Any Mute, One-Hand Mounting, 5.5" Adjustable Gooseneck, Detachable Cable
Includes XLR Adapter with Belt Clip
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- DPA Microphones d:vote 4099T Clip Microphone for Brass Instruments
- XLR Adapter
- Belt Clip
The d:vote 4099T Clip Microphone for Brass Instruments from DPA Microphones is designed for miking trumpet, trombone, or other brass instruments. It can be mounted with one hand and will work on a brass instrument with or without a mute. It has a maximum SPL rating of 152dB to handle a brass instrument's high output. The 4099T has a pre-polarized condenser capsule that is attached to a 5.5" gooseneck and provides flexibility for mic placement. It terminates in a MicroDot connector, making it compatible DPA's connection adapters for use with a variety of third-party wireless systems. An XLR adapter is included with a belt clip for use in a wired system with 48-volt phantom power.
Transducer Type | Pre-Polarized Condenser |
Polar Pattern | Supercardioid |
Principle of Operation | Pressure Gradient |
Frequency Range | 20 Hz to 20 kHz +/- 2 dB, 20 cm Distance: 80 Hz to 15 kHz, Second Order Low-Cut Filter @ 80 Hz with XLR Adapter |
Sensitivity | 2 mV/Pa; -54 dB Reference: 1 V/Pa (Nominal, +/- 3 dB) |
Equivalent Noise Level | Typ. 28 dB(A) Reference: 20 µPa (Maximum 31 dB(A)) (A-Weighted) |
Signal to Noise Ratio | 66 dB (Reference: 1 kHz @ 1 Pa, 94 dB SPL) |
Total Harmonic Distortion (THD) | < 1 % up to 123 dB SPL peak < 1 % up to 120 dB SPL RMS sine |
Dynamic Range | 95 dB |
Maximum SPL | 152 dB (Peak Before Clipping) |
Output Impedance | MicroDot: 30 to 40 Ω, XLR: 100 Ω |
Cable Drive Capability | XLR: 984' (300 m) |
Output Balance Principle | Signal balanced with XLR adapter |
CMRR | XLR Adapter: > 60 dB @ 50 Hz to 15 kHz |
Power Supply | Minimum 5 V to Maximum 50 V through DPA adapter for wireless systems 48 V phantom power ±4 V with XLR adapter |
Current Consumption | MicroDot: 1.5 mA XLR Adapter: 3.5 mA |
Connector | MicroDot XLR Adapter Included |
Polarity | Positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter) |
Operating Temperature | -40° to 113°F (-40° to 45°C) |
Relative Humidity | Up to 90% |
Cable Length | 6' (1.8 m) |
Gooseneck | Length: 5.5" (140 mm) |
Capsule Diameter | 0.2" (5.4 mm) |
Microphone Length | 1.8" (45 mm) |
Weight | 1.1 oz (31 g) |
Packaging Info | |
---|---|
Package Weight | 1.1 lb |
Box Dimensions (LxWxH) | 9.8 x 5.6 x 2.9" |
