DPA VO4099V d:vote 4099 Clip Microphone for Violin
by DPAFor Live Sound, Violin, Viola, Banjo, One-Hand Mounting, Holder Gentle on Instrument, 5.5" Adjustable Gooseneck, Microdot Connector, Detachable Cable
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- DPA Microphones d:vote 4099U Universal Clip Microphone
- XLR Adapter
- Belt Clip
- Clip with Hook and Loop Fastener

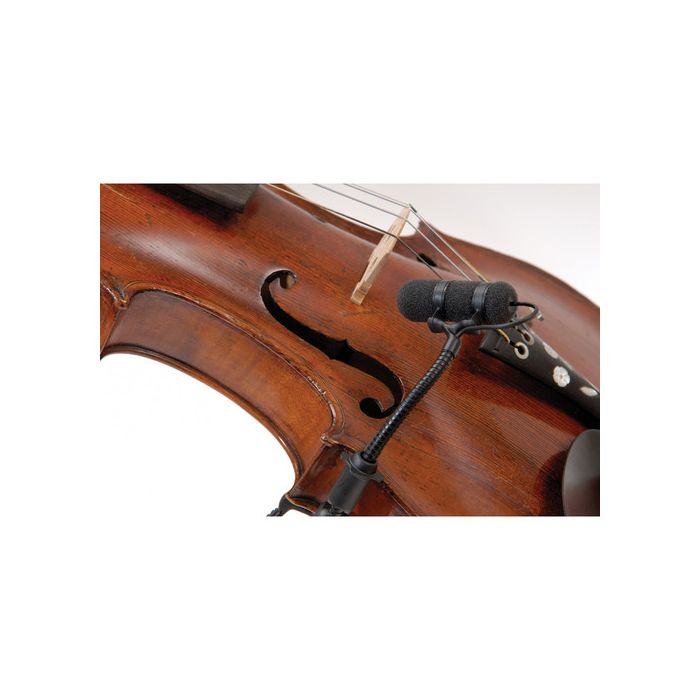

The d:vote 4099V Clip Microphone for Violin with XLR Adapter from DPA Microphones is designed to clip onto your violin, viola, banjo, or other string instrument with a body depth between 1.4 and 2.1". The clip has a holder that attaches gently to avoid damaging older and gentle instruments. It can be adjusted with one hand.
The microphone itself is a supercardioid condenser with a 5.5" adjustable gooseneck for ease in positioning. It also features a detachable cable, allowing you to attach your mic to your string instrument before connecting it. The 4099V terminates in a Microdot connector, allowing compatibility with DPA's connection adapters for use with a variety of third party wireless systems. An XLR adapter with a belt clip is included for use in a wired system with 48-volt phantom power.
| Transducer Type | Pre-Polarized Condenser |
| Polar Pattern | Supercardioid |
| Principle of Operation | Pressure Gradient |
| Frequency Range | 20 Hz to 20 kHz 80 Hz to 15 kHz with 2 dB Soft Boost @ 10 to 12 kHz, Second Order Low-Cut Filter @ 80 Hz (>+/- 2 dB, 20 cm Distance) |
| Sensitivity | 6 mV/Pa; -44.5 dB Reference: 1 V/Pa (Nominal, +/- 3 dB) |
| Equivalent Noise Level | Typ. 23 dB(A) Reference: 20 µPa (Maximum 26 dB(A)) (A-Weighted) |
| Signal to Noise Ratio | 71 dB (Reference: 1 kHz @ 1 Pa, 94 dB SPL) |
| Total Harmonic Distortion (THD) | < 1 % up to 123 dB SPL peak < 1 % up to 120 dB SPL RMS sine |
| Dynamic Range | 100 dB |
| Maximum SPL | 142 dB (Peak Before Clipping) |
| Output Impedance | MicroDot: 30 to 40 Ω, XLR: 100 Ω |
| Cable Drive Capability | XLR: 984' (300 m) |
| Output Balance Principle | Signal balanced with XLR adapter |
| CMRR | XLR Adapter: > 60 dB at 50 Hz to 15 kHz |
| Power Supply | Minimum 5 V to Maximum 50 V through DPA adapter for wireless systems 48 V phantom power ±4 V with XLR adapter |
| Current Consumption | XLR Adapter: 1.5 mA; 3.5 mA |
| Connector | Microdot XLR Adapter Included |
| Compatibility | Fits Instruments with a Body Depth Between 1.4 and 2.1" (35 and 55 mm) |
| Polarity | Positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD4099-BC XLR adapter) |
| Operating Temperature | -40 to 113°F (-40 to 45°C) |
| Relative Humidity | Up to 90% |
| Cable Length | 6' (1.8 m) |
| Gooseneck | Length: 5.5" (140 mm) |
| Microphone Length | 1.8" (45 mm) |
| Weight | 1.16 oz (33 g) |
| Packaging Info | |
|---|---|
| Package Weight | 1.15 lb |
| Box Dimensions (LxWxH) | 9.7 x 6.0 x 3.0" |
