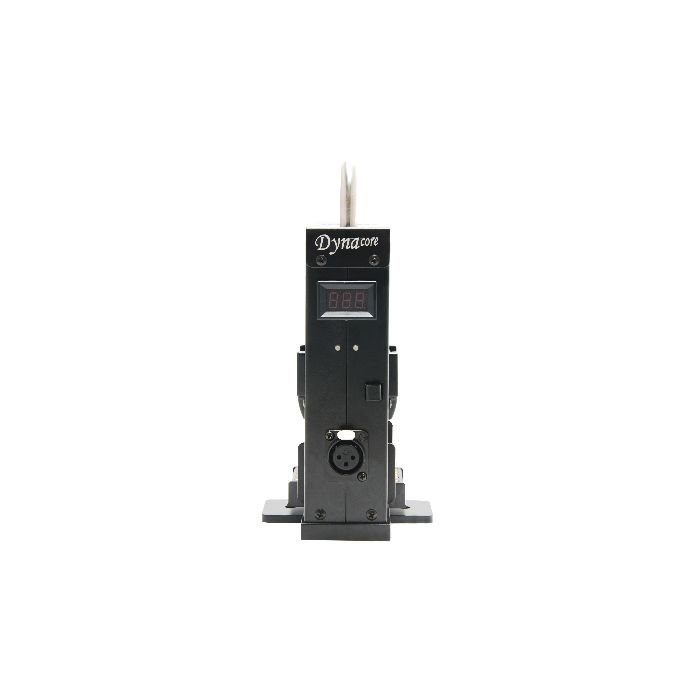

Dynacore D-2BS-24 Battery Extender

by Dynacore
Verfügbarkeit: 7-10 days delivery
SKU
DY-D-2BS-24

D-2BS/A-24 is the power station designed to integrate the power of 2pcs V-Mount and Gold Mount batteries into a power source as a 24V voltage output.

236,25 € 189,00 €

Paket beinhaltet

  • Dynacore D-2BS-24 Battery Extender

It can supply power of up to 240W output(24V, 10A).
To reach the best output performance, 2pcs batteries with the same capacity and charging status are required.
Battery models with bigger capacity are better.

LCD Display For Output Voltage
24.5V(+/-5mV on no-load,+/-1.2% on full load)

2 Channel Low Voltage Alarm Indicator LED Battery Indication
Color Red=Under/Over Voltage
Color Green=Good
Green Blinking=Battery Low

3 Pin Female XLR Output
24V, 10A, 240W(Max)

Hexagon Connector Makes It Easy To Be Connected To The Tripod With Convi Clamp.

D-2BS-24 Integrated Mount Plate Design Makes The Product Compact

D-2BS-24 For V-Mount Batteries
D-2BA-24 For Gold Mount Batteries

DC Input 12-17V
DC Output 24.5V
 Outlet  1 x 3-pin Female XLR
 DC Output Max Power  10A,240W
Applicable battery V-Mount batteries
Dimension 150X73X220mm(Including Metal Cylinder)
Weight 1.10Kg(Including Metal Cylinder)
