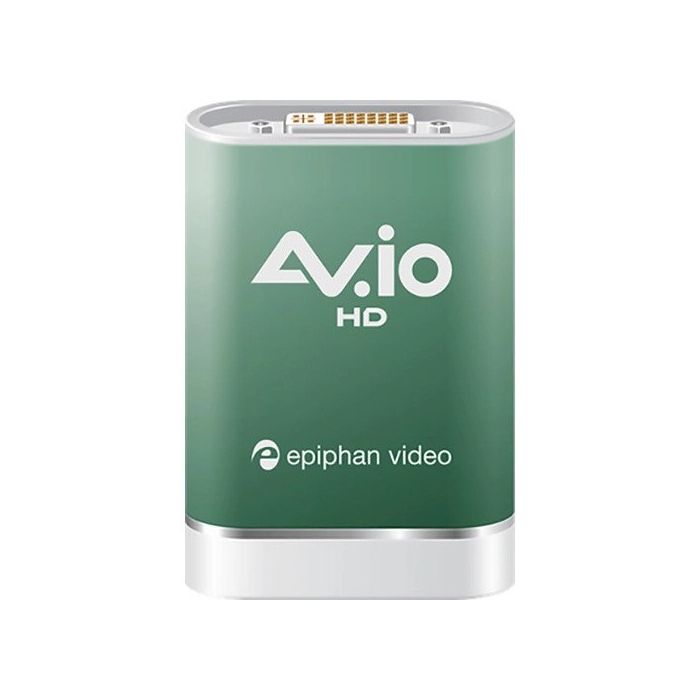

Epiphan AV.io HD
Transfer up to a 1080p / WUXGA DVI video signal to your computer with the robust and compact Epiphan AV.io HD Video Grabber.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Epiphan AV.io HD USB 3.1 Gen 1 Video Grabber
- DVI Cable
- DVI to VGA Cable
- DVI to HDMI Adapter
- USB 3.0 Cable
Transfer up to a 1080p / WUXGA DVI video signal to your computer with the robust and compact Epiphan AV.io HD Video Grabber. Using included adapters, do the same with HDMI and VGA signals.
The AV.io HD is a UVC device that shows up on your computer as a webcam. As a UVC device it's designed to integrate with a capture software on your computer, and it's seamlessly compatible with all the popular capture software, including Wirecast, Skype, QuickTime, Adobe FMLE, VLC media player, Windows Camera, and any conferencing software. The captured data can be used for a variety of purposes, like high-end streaming, webcam applications requiring higher image quality than standard webcams offer, and for recording, such as if a doctor needs to capture an ultrasound.
This sleek capture device features a DVI input and USB 3.0 output (USB 2.0 backwards-compatible), and includes a DVI-to-HDMI adapter and DVI-to-VGA adapter cable. It supports up to 1080p and 1920 x 1200 WUXGA resolution on both input and output at up to 60 fps. Connect cameras, mobile devices, home entertainment devices, and other DVI, HDMI, and VGA sources, and transmit the content to your computer uncompressed and with near-zero latency.
The AV.io HD is auto-detected on Windows, Mac, and Linux systems, allowing for for easy integration. This device has a tough build and can be relied on for long-term use. It has a metal exterior that's strong enough to withstand being dropped as well as stepped on. A DVI cable and USB 3.0 cable are also included, so you have everything you need right out of the box.
Note:
High-Bandwidth Digital Content Protection (HDCP) is a form of digital copy protection intended to prevent illegal copying of video and audio content. The AV.io 4K cannot capture from video sources protected by HDCP.
Key Features
Transfer up to a 1920 x 1200 resolution DVI/HDMI/VGA signal to your computer
DVI input and USB 3.0 output
DVI to HDMI adapter and DVI-to-VGA adapter cable included
UVC device that seamlessly integrates with popular capture software
Up to 1080p and 1920 x 1200 resolution on input and output
Near-zero latency
Auto-detected on Windows, Mac, and Linux systems
Tough, metal exterior
LED status indicators
DVI and USB cables included
System Requirements | Operating System: |
Windows 7, 8.1, 10 | |
Mac OS X 10.10 + | |
Linux distribution with kernel 3.5.0 or higher | |
Drivers | OS Driver: |
UVC and UAC device | |
Input | 1 x DVI-I (VGA and HDMI compatible using included adapter cables) |
Output | 1 x USB 3.0 (USB 2.0 backward compatible) |
Maximum Input Resolution | Up to 1920 x 1200, including 1080p |
Output Resolutions | 1920 x 1200, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768, 960 x 540, 848 x 480, 640 x 480, 640 x 360, all in YUV 4:2:2 at 15, 23.976, 24, 25, 29.97, 30, 50, 59.94, 60 fps |
*The 3rd-party software you use will set the frame size and bit rate. | |
Supported Audio | 16-bit and 24-bit PCM encoded audio via HDMI input at 32, 44.1, and 48 kHz sampling rates |
Audio Output | 16-bit 48 kHz stereo sampling rates |
Latency | Near-zero, but 3rd-party applications may cause capture delay |
HDCP | High-bandwidth digital content protection (HDCP) is a form of digital copy protection intended to prevent illegal copying of video and audio content. AV.io HD cannot capture from video sources protected by HDCP. |
Dimensions | 3.5 x 2.4 x 0.91" (9 x 6 x 2.3 cm) |
