Feelworld D71 Rack mount monitor

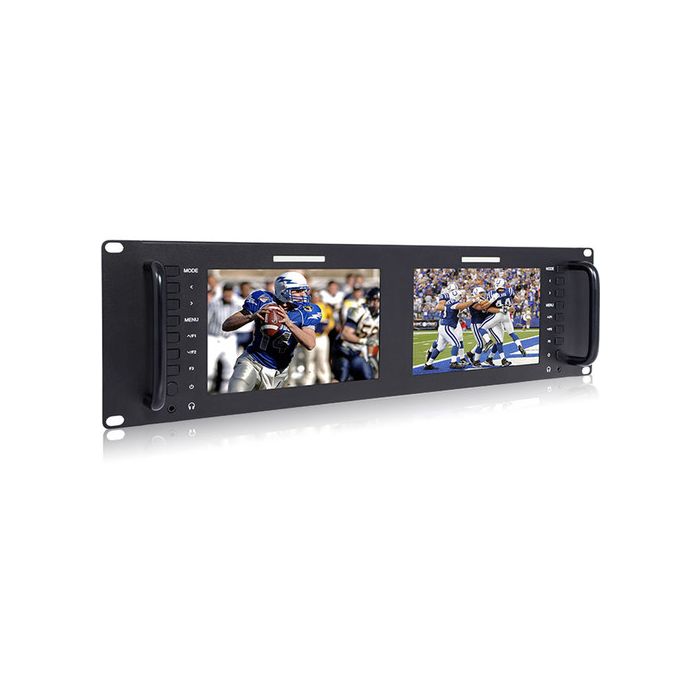

Featuring two 7" displays in an ultra-slim 3 RU design and offering a LAN port for GPIO network control, the D71 Dual 7" 3 RU Rackmount 3G-SDI/HDMI LCD Monitor from FeelWorld is designed to provide efficient broadcast monitoring of up to two 1080p60 signals. The D71 model has 3G-SDI, HDMI, and composite BNC inputs and outputs per display, as well as RCA audio inputs for each panel. A headphone outputs is provided for each panel for monitoring audio. There's a single tally port on the rear and a three-color tally light above each display. The displays are IPS panels with a 1280 x 800 resolution and 178° wide viewing angle, providing for more consistent monitoring.

Over the LAN 100 port, multiple D71 units can be controlled at the same time via a single control software. The D71 comes in a metal housing that allows for optimal heat dissipation and has cast-iron handgrips on the sides for convenient handling when installing into or removing from a rack.

A variety of image analysis functions includes peaking focus assist, check field, pixel-to-pixel, zoom all, and more, and three function buttons per monitor are provided on the front panel that these can be assigned to. For power, a barrel input and 4-pin XLR port are provided on the rear. A 12 VDC power adapter is included for the barrel input while an optional standard XLR power adapter can alternatively be used instead.

Key Features

• Two 7" 1280 x 800 resolution IPS displays in an ultra-slim 3 RU design
• LAN port for GPIO network control of up to multiple units
• 3G-SDI, HDMI, and composite BNC I/O
• Up to 1080p60 signal input
• 178° viewing angle
• 400 cd/m² brightness
• 800:1 contrast ratio
• RCA audio inputs
• Headphone outputs
• Single tally port
• Three-color tally light above each display
• Three user-assignable function buttons per display
• DC barrel / 4-pin XLR power ports (12 VDC power adapter included)
• Metal housing allows for optimal heat dissipation

Image Analysis Tools

• Peaking focus assist (red highlight over parts of the monochrome image)
• Check field (red, green, blue, mono)
• Pixel-to-pixel
• Center marker
• Safe marker (80, 85, 90, 93, 96, 2.35:1)
• Image flip (horizontal, vertical, horizontal/vertical)
• Image freeze
• Zoom all
• U/D and L/R zoom
• Custom color temperature
