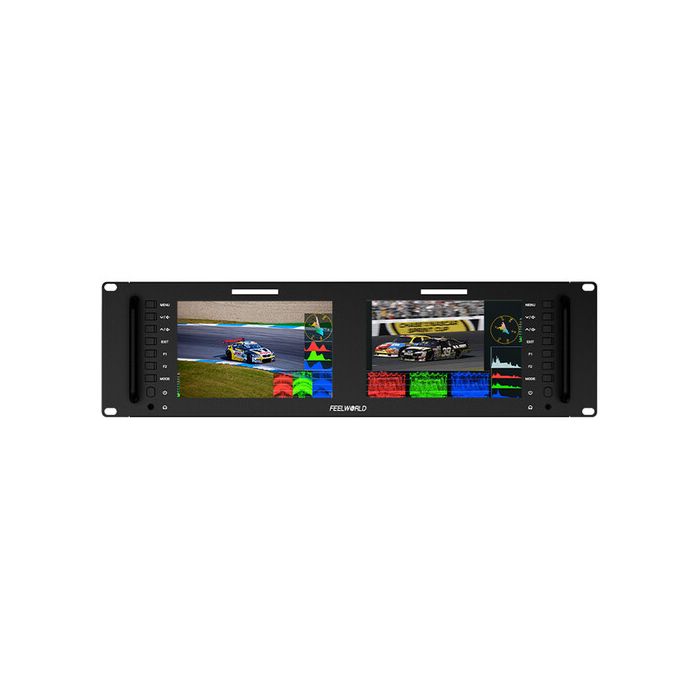

Feelworld D71PLUS Rack mount monitor

by FeelWorld
Verfügbarkeit: Auf Lager
SKU
D71PLUS

FEELWORLD D71 PLUS monitors are the ideal choice for 3G-SDI or 4K HDMI monitoring anywhere you need it.

769,00 € 615,20 €

Paket beinhaltet

  • Feelworld D71PLUS Rack mount monitor
  • Power Adapter
  • Tally Kit

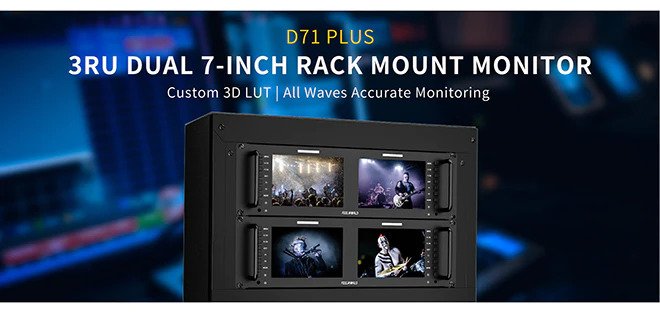

Ideal Choice for SDI/4K HDMI Monitoring

FEELWORLD D71 PLUS monitors are the ideal choice for 3G-SDI or 4K HDMI monitoring anywhere you need it. It has 2 independent 7 inch displays can be monitor two different cameras simultaneously, it easy to install in video wall or broadcast truck thanks to its 3RU form factor. You can use them for broadcast, post production, on set monitoring, flyaway kits, broadcast trucks and more.

Full HD LCD Panel

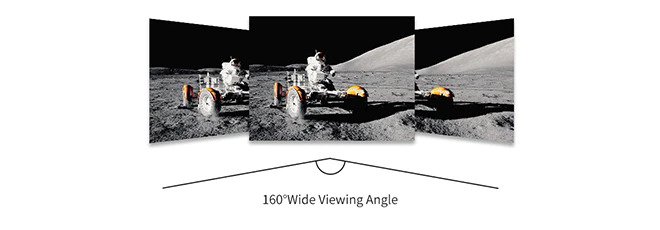

D71 PLUS is equipped with 2x7-inch high resolution 1920x1200 LCD panels.True color reproduction and provide excellent details.160°wide viewing angle allows you to enjoy a more perfect visual experience.

Ultra Thin Design

Ultra thin and metal housing, strong and durable. The 3RU installation size can be easy to install in TV wall or broadcast truck, etc.

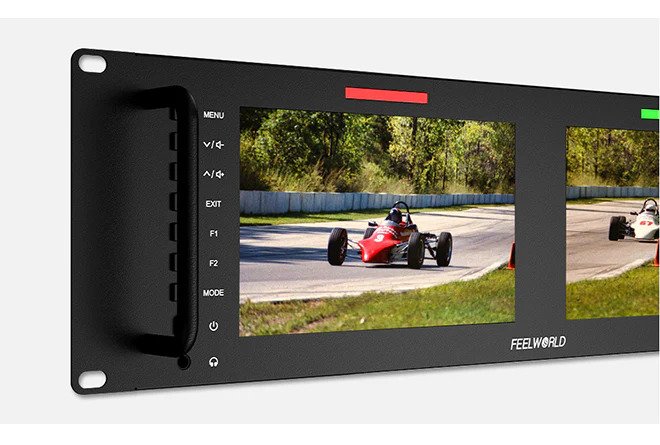

Intuitive Button Operation

D71 PLUS has 2 exquisite front panels equipped with intuitive buttons for independent control of the screen, as well as F shortcut key, the frequently used functions are clear at a glance, making the operation quickly and easily.

Multiple Video Interfaces

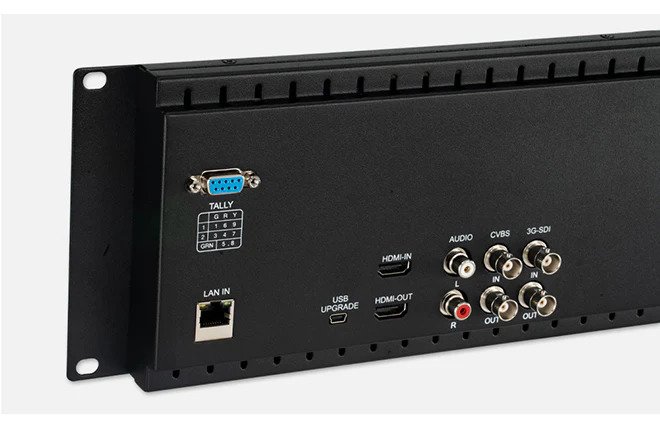

D71 PLUS is design for broadcast work and post-production, each panel with 3G-SDI, 4K HDMI and CVBS signal inputs and outputs. Plus, it also have L/R audio.

Ethernet Remote Control

Connecting Ethernet D71 PLUS can remotely adjustment for the monitor via software GPIO, which makes it very easy to set up a matching monitor.
Note: the software is suitable for Windows system at present.

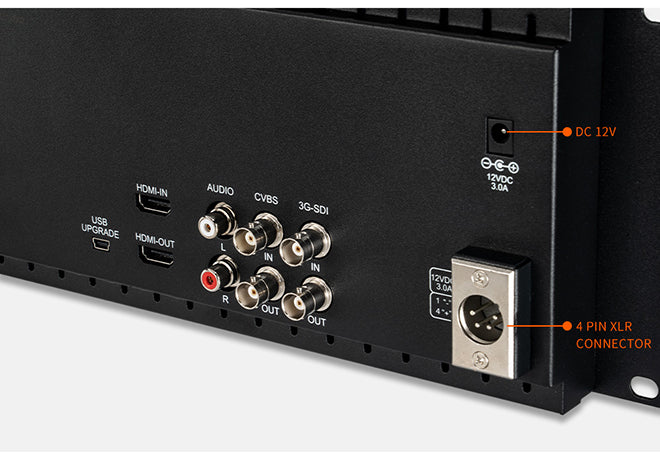

Flexible Power Supply

D71 PLUS comes with DC 12V and 4 pin XLR connector (suitable for 12V/3A power adapter), strong power for the screens.

Professional Auxiliary Tools, Inspire Your Creation

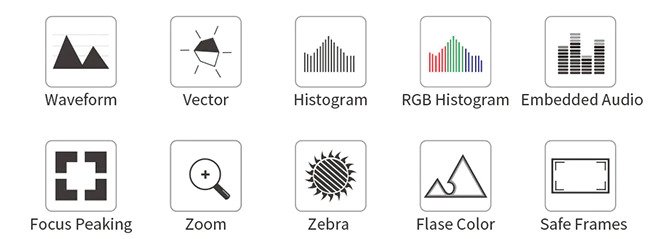

The monitor includes a plethora of useful features such as histogram, false color, focus assist, embedded audio, pixel to pixel, frame guides, nine grid etc. As well as a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files). And both screens can be set independently!

Load Custom 3D LUTs,Preview Filming Look in Field Shooting

Supports to load 32 custom LUTs

The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. The user stores the LUT document in the root directory of the U flash drive, and imports via connecting the USB adapter cable and the USB interface of the device (up to 32 custom files can be imported), maintaining creative intent, always.

Accurate waveform monitoring

Save your budget

When you need to analyze image quality more accurately than simply looking at the picture then use D71 PLUS's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vector, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. D71 PLUS becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

3-Color Tally Indicator, Enhance Team Cooperation

There is front TALLY indicator for each screen, with 3 colors display (Red,Green,Yellow), and controlled via DB-9 ports on the rear panel. Enhance the team cooperation.

APPLICATION

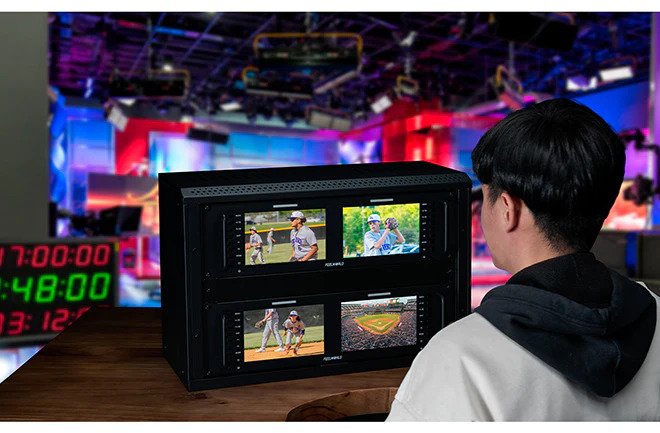

Perfect Monitoring for Broadcast Organization

Use multiple D71 PLUS units to monitor lots of camera inputs simultaneously. The built-in Tally function can display red, green or yellow indicator, allows you always know when you are recording or on-air.

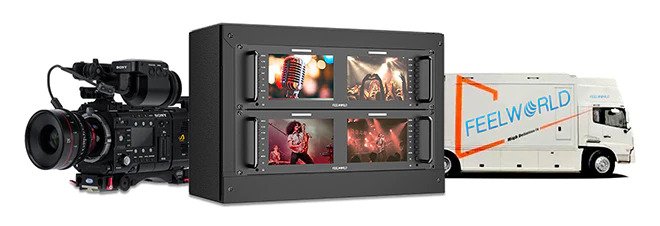

Broadcast Truck

Mobile Broadcast Monitoring Solution

In mobile broadcast truck, you need every inch of space and you need minimal heat so you need a monitoring solution that is lightweight and compact, the D71 PLUS is the ideal solution. Imagine having all your video sources displayed on 7 inch LCD screens so you can see camera detail and quality.

Display Spec.
 Model  D71 PLUS
 Screen Size  7"×2 IPS
 Resolution  1920×1200 pixels
 Dot pitch  0.07875(H)×0.07875 (W) mm
 Aspect Ratio  16:10
 Brightness  450cd/m²
 Contrast Ratio  1100:1
 Backlight  LED
 Viewing Angle  80°/80°(L/R) 80°/80°(U/D)
Input (Each LCD)
 1 X BNC  3G-SDI
 1 X HDMI  HDMI
 1 X BNC  Video
 2 X RCA  Audio(L/R)
Output (Each LCD)
 1 X BNC   3G-SDI
 1 X HDMI  HDMI
 1 X BNC  Video
Audio (Each LCD)
 Audio Out  Stereo Headphone × 1
SDI Support Format 720p(60/59.94/50/30/29/25/24/23.98)
  1080i(60/59.94/50)
  1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
HDMI Support Format 480i/576i/480p/576p
  1080i (60/59.94/50)
  720p (60/59.94/50/30/29/25/24/23.98)
  1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
  4K UHD 3840×2160p (30/29.97/25/24/23.98 Hz)
  DCI 4K 4096×2160p (24Hz)
CVBS (Video) Support Format PAL/NTSC auto recognize
General
 Input Voltage  DC9~24V
 Power Consumption  ≤21W
 Power Connector  DC/ 4-pin XLR
 Working Temperature  -10°C~60°C
 Storage Temperature  -30°C~70°C
 Install Way  Rack Mount

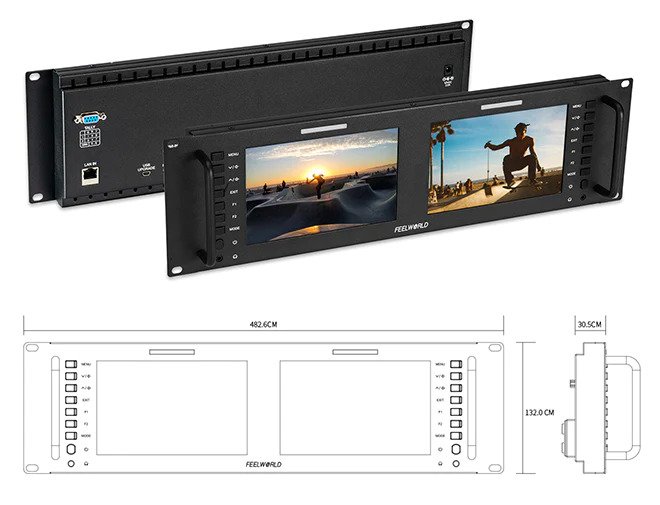

 Unit Size  482.6Lx132Hx30.5D mm
 Unit Weight  1890g
