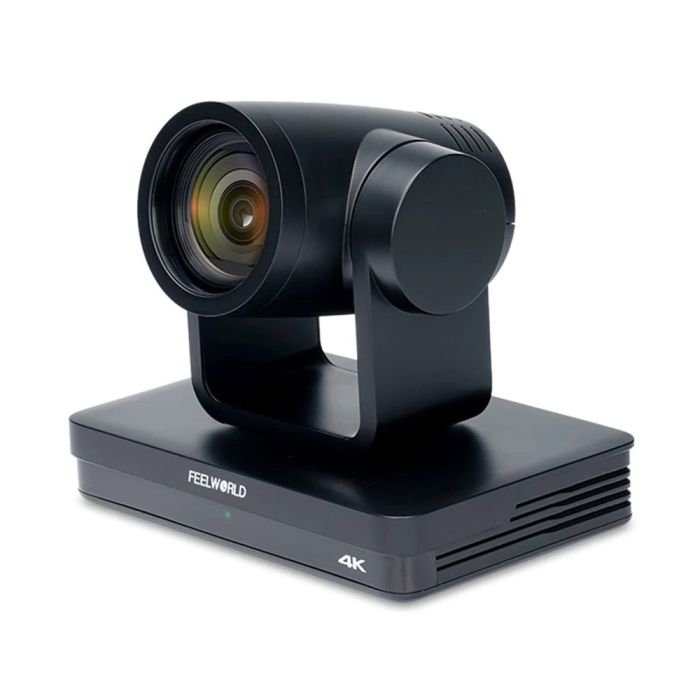

Feelworld PTZ UHD 4K SDI/HDMI Camera with 12x Optical Zoom
by FeelWorld8.51M megapixel high quality SONY CMOS sensor, Up to 4K@30fps , presenting ultra clear and vivid image, 12X optical zoom lens and 70° wide angle lens, Simultaneous SDI, HDMI, USB3.0, IP Streaming video out, easily for professional video production,PoE(Power over Ethernet) supported,Auto focus, smart frame capture everyone, Supports H.265/H.264 encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- PTZ Camera
- Remote Control
- USB3.0 Cable
- RS232 Control Cable
- RS422 Terminal Block
- Power Adapter
- Manual
4K PTZ Camera Solution
Do you want to feel the 4K Ultra HD video experience? FEELWORLD UHD4K12X PTZ camera can satisfy. It adopts 8.51megapixel high quality SONY CMOS sensor, 12X optical zoom lens and 70° wide angle lens. Equipped with 4K 3840x2160 resolution, present clear and smooth ultra HD video. Ideal for church live streaming, video conferencing , remote education,telemedicine, etc.
ptz ip camera
Multiple Video Outputs
Stream to Your Favorite Platforms
Simultaneous HDMI, 3G-SDI, USB3.0and IP streaming video output and multiple network protocol allow UHD4K12X to easily live streaming to your favorite platforms, such as YouTube, Facebook, Twitch, etc.
camera streaming
4K Ultra HD Streaming
Streams in amazing 4K ultra high-definition 30fps resolution, and with 8 bit color depth, good color reproduction.
4k ptz camera
AI Auto Tracking, Easily Capture Every Moment
The UHD4K12X has real-time tracking and zone tracking function, no matter where you are, it will always keep you in the frame.
Note: The zone tracking needs to be set in network control
ptz controls
12X Optical Zoom
The camera with 12x optical zoom lens and 70.9°wide angle lens, clearly capture the image.
conference camera
conference room camera system
H.264&H.265 Encoding, More Smooth and Clear Video motion
IP live streaming supports H.264&H.265 video compression, which makes motion video more fluent and clear under low bandwidth conditions.
video conference camera
PoE Support
The camera supports PoE ( (Power over Ethernet) allows you to only bring up a single network cable to both power and stream video when using LAN.
ptz camera controls
Auto Focus, Smart Frame Capture Everyone
Take close-ups on characters, details, and there is no need to worry about blurring your image when you're speaking choice.
4k ptz
Accurate, Smooth and Silent PTZ Movement
Capture every person in the room with multi-angle
Built-in two-way high speed and silent pan/tilt, the lens can rotate 340° horizontally (±170°) and 120° vertically (-30°～+90°).
livestream camera
Low Noise and High SNR
Super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.
Up to 255 Preset Positions
10 preset positions by IR remote controller，that can save pan, tilt, and zoom settings, and smoothly transitions between them at the touch of a button. Up to 255 preset positions via network control or keyboard controller.
Operate Nearby or Far Away
You can Pan, tilt, and zoom with the hand-held remote to see everything in your workspace. You can also operate it from a remote location with network control, FEELWORLD L2 PLUS video switcher or FEELWORLD KBC10 keyboard controller.
Multiple Mounting Options
The camera can be installed on any wall/ceiling/tripod/desktop to capture close-up shots for your every Live Video Production.
| Sensor | 1/2.8 inch high quality CMOS sensor |
| Effective Pixels | 8.51 megapixel, 16：9 |
| View Angle | H：6.5°（N）～70.9°（W） |
| Iris | F1.6 ～ F2.8±5% |
| Digital Zoom | 15X |
| Optical Zoom | 12X |
| Minimum Illumination | 0.5Lux(F1.8, AGC ON) |
| DNR | 2D & 3D |
| White Balance | Auto/Manual/One-push/Specified Color Temperature |
| Focus | Auto/Manual/One-push |
| Exposure | Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority |
| Iris Mode | F1.8 ～ F11, CLOSE |
| Shutter Speed | 1/25～1/20000 |
| BLC | On/Off |
| Dynamic Range | Off, 1 ～ 8 |
| Video Adjustment | Brightness, Chromaticity, Saturation, Contrast, Sharpness, Black And White Mode, Gamma Curve |
| SNR | >50dB |
Input/output Interface
| Interface | HDMI, SDI, LAN(POE), USB3.0, A-IN, RS232-IN, RS232-OUT, RS422(Compatible with RS485), DC12V Power Supply, Dial Switch, Power Switch |
| Video Output | HDMI, 3G-SDI, USB3.0, LAN(support PoE) |
| Video Compression Format | LAN: H.264, H.265; USB: MJPG, H264, YUY2, NV12 |
| Audio Interface | Double track 3.5mm linear input |
| Audio Compression Format | AAC, MP3, G.711A |
| LAN Interface | 10M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and video output |
| Control Interface | RS232-IN, RS232-OUT, RS422 compatible with RS485 |
| Control Protocol | VISCA/Pelco-D/Pelco-P |
| Serial Port Communication Protocols | VISCA/Pelco-D/Pelco-P |
| USB Communication Protocols | UVC（Video Communication Protocol）, UAC（Audio Communication Protocol） |
| Network Protocol | RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT, support remote upgrade, remote reboot, remote reset |
| Power Supply | HEC3800 Power Socket(DC12V) |
PTZ Parameters
| Pan Rotation | -170°～+170° |
| Tilt Rotation | -30°～+90° |
| Pan Control Speed | 0.1 ～60°/sec |
| Tilt Control Speed | 0.1～30°/sec |
| Preset Speed | Pan: 60°/sec, Tilt: 45°/sec |
| Preset Number | 255 presets(10 via remote control) |
Video Signal
| HDMI | 4KP30/25,1080P30/29.97/25 |
| SDI | 1080P30/29.97/25 |
| USB Main Stream | YUY2/NV12:1920×1080/1280×720/1024×576/800×600/800×448/640×360/480×270/320×180@10/5fps |
| USB Main Stream | MJPG/H264:3840*2160/1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps |
| USB Sub-stream | YUY2/NV12:1280×720/1024×576/800×600/800×448/640×360/640×480/480×270/320×180@30/25/20/15/10/5fps |
| USB Sub-stream | MJPG/H264: 1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps |
Other Parameters
| Input Voltage | 12V/1A |
| Input Current | <1A |
| Power Consumption | Maximum: 12W |
| Stored Temperature | -10℃～+70℃ |
| Storage Humidity | 20%～95% |
| Working Temperature | -10℃～+50℃ |
| Working Humidity | 20%～80% |
| Dimension (W*H*D) | 181mm×115mm×149mm |
| Unit Weight | 1.2kg |
