Glidecam Centurion 3-Achsen Gimbal
by Glidecam3-Axis Gimbal / Load Capacity 2,3 kg / 32 bit processor / Weight 2,0 kg
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Glidecam Centurion Gimbal
- Glidecam Centurion Stand
- 4× Batteries
- 2× Battery Chargers
- Camera Mounting Hardware
- USB Stick with Software

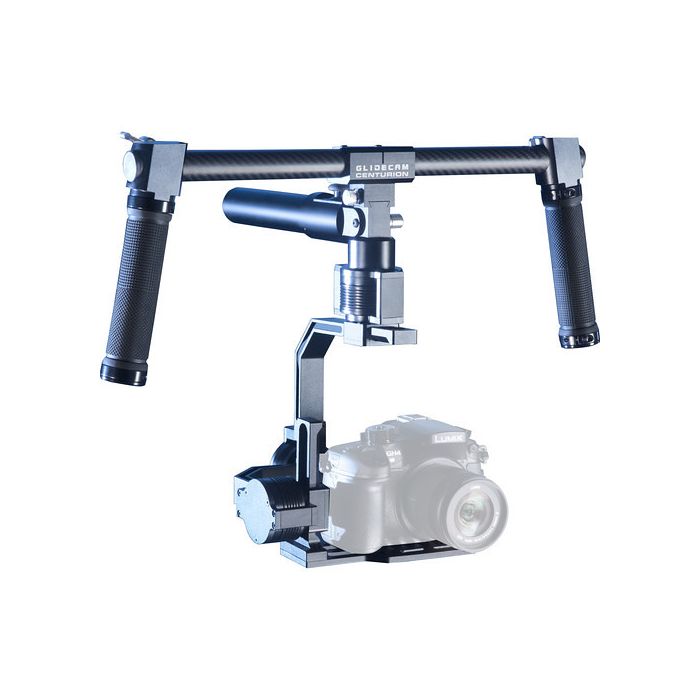

Glidecam Centurion 3-Axis Motorized Gimbal
The technologically advanced Glidecam Centurion is the lightest and most compact 3-axis Motorized Gimbal available in its class today. The Glidecam Centurion is designed to work with the majority of video cameras and DSLR and mirrorless cameras weighing from 1 to 5 pounds (.45 to 2.26 kg.)
Made with precision Aluminum and space-age Carbon Fiber composites, the versatile Glidecam Centurion offers virtually unlimited handle-grip positions and can be set up in single-grip, or dual-grip, handle bar modes.
Cameras can be easily and quickly positioned for neutral balance. The Centurion's computer controlled, direct-drive, brushless motors stabilize the camera by taking control of all three rotational axes of movement. The 32 bit accuracy of the Glidecam Centurion sensors coupled with the high speed of the controller delivers perfectly smooth and stable images while maintaining horizontal accuracy on all three axis within .02 degrees. Each brushless motor has an electric slip ring so the wires will never tangle.
The state-of-the-art Glidecam Centurion is battle-ready and will combat camera instability by delivering super-smooth, high production value imagery to your productions.
Five Operating Modes
1: Follow Mode
2: Lock Pitch/Follow Yaw
3: Lock Mode
4: Customizable
5: Calibrate ACC
3-Axis Motorized Gimbal
The Glidecam Centurion is a 3-axis Motorized Gimbal. The motors work with position feedback, encoders, and the IMU sensor (Inertial Measurement Unit) to communicate with our custom 32-bit controller. Combining the accuracy of our sensors with the speed of the controller equals perfectly stable video in all three axis with .02 degrees of accuracy.
Joystick
The joystick on top of the handle will manually control the pitch and yaw axis by toggling forward, backwards, left and right. The joystick will move exponentially faster as you push it further from the center position. If you want the camera to move a different direction or speed than how the joystick moves it, the function can be inverted or customized in the software.
Software
The Glidecam Centurion Software allows you to save and make adjustments to the Glidecam Centurion. Included with the Glidecam Centurion is a USB stick with the software and drivers enabling you to make adjustments if required to the Glidecam Centurion.
Load Weight
1-5 lbs. (.45 to 2.26 kg.)
Angular Vibration Range
±0.02°
Rotation Range
Pan Axis Control: 360°/s, Tilt Axis Control: 360°/s, Roll Axis Control: 360°/s
Motor Type
3 x Brushless with AS5600 (I2C) Encoders
Processing
32-bit processor
System Requirements
Windows: (32- or 64-bit): 8, 7, XP SP3 / Mac OS X: 10.9 or above
Control Modes
Profile 1: Follow Mode, Profile 2: Lock Pitch/Follow Yaw, Profile 3: Lock Mode, Profile 4: Customizable, Profile 5: Calibrate ACC, Additional profile: Inverted mode, briefcase, return home, RC
Supported Camera Dimensions
Maximum depth at center of mass on camera base plate: 7", Maximum height measured from top of camera base plate: 6", Maximum width: 7+" – available room for LCD to extend off the side
Power Requirements
4x Glidecam batteries (26350mah 3.7v)
Operating Temperature
15 to 105°F
Double Grip Dimensions(WxDxH)
18x12x12"
Weight
Single Grip 3.4lbs (with batteries)
Double Grip 4.5lbs (with batteries)
