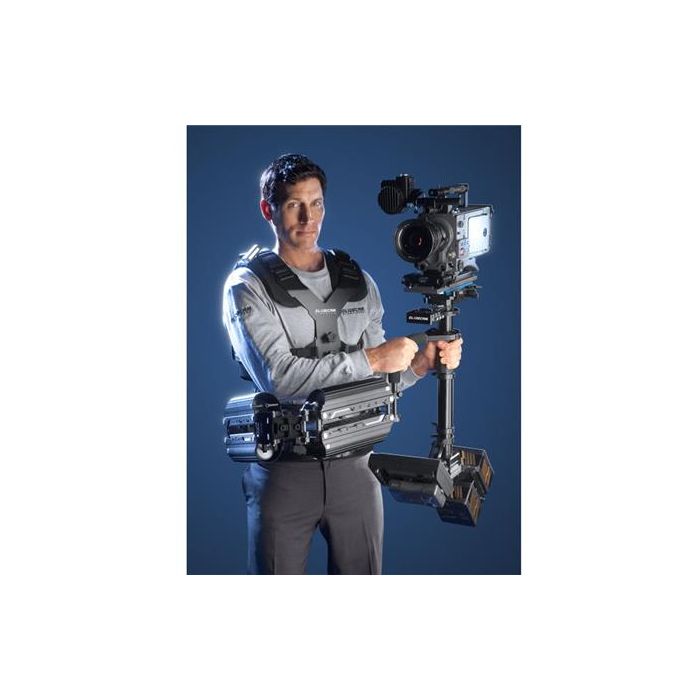

Glidecam X-45 System W/ Anton V-Lock Base
by GlidecamIncludes V-Mount Battery Plate, X-45 Support Arm, Support Vest, X-45 Support Sled, Docking Bracket, Arm Post
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Glidecam X-45 Support Arm
- Support Vest
- X-45 Support Sled
- Docking Bracket
- Arm Post
- Hardware and Operations Manual
- X-45 V-Mount Battery Plate
Glidecam x-45 Sled
The Glidecam x-45 Sled is designed to hold film and video cameras weighing from 25 to 45 pounds. The x-45 Sled incorporates sophisticated engineering and precision machining, making it both lightweight and strong. The Glidecam x-45 Sled is comprised of four major components. These are the Camera Balance Platform, the Three-Axis Gimbal, the Dynamic Base Platform and the Telescoping Center Post.
Camera Balance Platform
The precision, Camera Balance Platform (x-Y Head or Top Stage) incorporates a quick-release, no-tools, drop-in Dovetail Camera Plate that allows you to quickly attach or remove your camera. Ergonomic, fine-tuning, control knobs allow quick and precise adjustment of the Camera Balance Platform's front-to-back and side-to-side movement. These controls allow you to quickly adjust the system's horizontal balance.
Three-Axis Gimbal
A unique and proprietary, precision, no-tools Three-Axis Gimbal incorporates several adjustable, axis convergence controls. This allows all three axes to intersect for proper operational alignment. By changing the location of the Gimbal on the Central Post, you can quickly adjust the system's vertical balance. For improved operator control, a very tight knurling has been machined onto the Gimbal Tube.
Dynamic Base Platform
The unique and proprietary, Dynamic Base Platform is designed to manually expand or contract. This allows you to easily adjust the system's dynamic balance or to increase or decrease the system's rotational pan inertia. The x-45's Dynamic Base Platform can be set up with up to 3 Anton Bauer Batteries or up to 3 V-Mount style Batteries. The Glidecam x-45 sled also includes a Glidecam 7" HD Monitor, a custom LCD Battery Plate and a BNC-to-BNC/RCA video cable.
Telescoping Center Post
The Glidecam x-45 Sled has a lightweight and rigid, no-tools, 1.75" diameter, Telescoping Center Post. This allows you to easily adjust the sled's length and the position of the LCD Monitor and Battery.
Construction Aluminum
Tube Diameter1.75" / 44.45mm
Maximum Load Capacity 45lbs / 20.41kg
Battery Plate V Mount
