Hollyland Cosmo C2 2TX & 1RX

by Hollyland
Verfügbarkeit: 7-10 days delivery
SKU
HL-COSMOC2-2TX1RX

This kit comprises two transmitters and a receiver that communicate over the 5.1 to 5.85 GHz wireless frequency range.

1.500,00 € 1.200,00 €
Neu

Paket beinhaltet

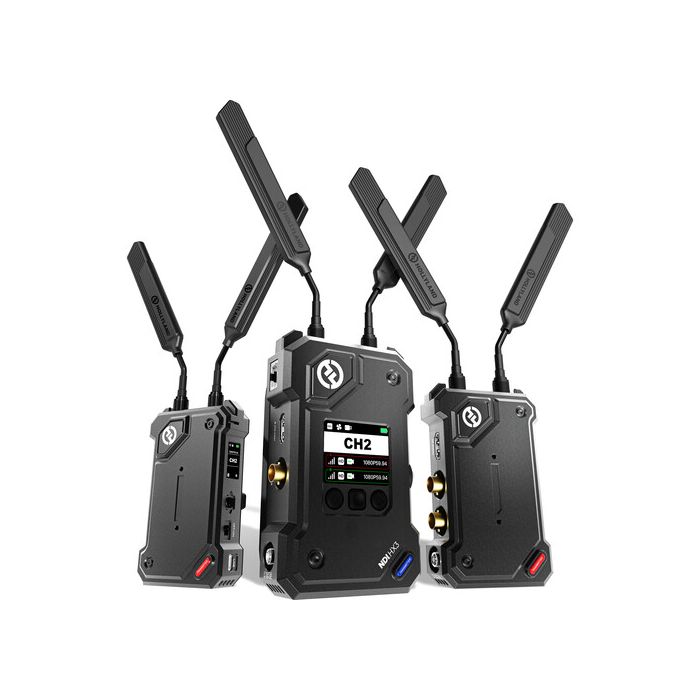

  • Hollyland Cosmo C2 HDMI/SDI Wireless Video 2-Transmitter System
  • 2 x Hollyland Cosmo C2 HDMI/SDI Wireless Video Transmitter
  • Cosmo C2 Receiver
  • 7 x Blade Antenna
  • USB-C OTG Adapter
  • 2 x Expansion Accessory
  • 2 x Cold Shoe Mount
  • Power Adapter (12 VDC, 2A)
  • Carrying Case

The Cosmo C2 HDMI/SDI Wireless Video 2-Transmitter System from Hollyland allows you to wirelessly transmit high-resolution video up to 1080p60 over long distances up to 3000' using two transmitters to a single receiver, allowing flexible video monitoring and distribution for your studio or field production. This kit comprises two transmitters and a receiver that communicate over the 5.1 to 5.85 GHz wireless frequency range. Additional improvements to the series include HEVO 2.0 technology, UVC/RTMP/NDI|HX streaming support, and expanded power options.

Strong Signal Strength, Seamless Frequency Hopping
The Cosmo C2 can transmit 1080p60 video up to 3000' line-of-sight with a low 33 ms latency. The system operates on the 5 GHz frequency band, automatically detecting surrounding frequency interference and seamlessly switching to a clean channel via HEVO 2.0 technology. This makes for an uninterrupted transmission signal.

Connectivity
The transmitters feature one HDMI input, one SDI input, and one SDI loop output.
The receiver features two HDMI outputs, two SDI outputs, and an RJ45 Ethernet port.
USB-C ports on all the units allow you to connect to the included USB-C OTG adapter and your personal computer for UVC streaming.


RTMP and NDI|HX Streaming
The Cosmo C2 unlocks RTMP streaming for direct live streaming to YouTube, Twitch, and other platforms. The receiver unit supports NDI|HX protocol, transmitting video streams via a single network cable for a cleaner production space.

FPS Booster, Fractional Frame Rate
Using a frame rate compensation algorithm, the Cosmo C2 receiver can convert low frame rate inputs like 1080p24/25/30 to high frame rate outputs at 1080p60, making smoother visuals. The Cosmo C2 can also transmit HDMI/SDI fractional frame rate input/output signals to ensure flexibility while filming.

Frozen Frame
If your transmission is interrupted, Cosmo C2 can freeze the last frame of your feed, effectively preventing the display of the manufacturer's logo. There is also the option to customize the logo image if you prefer to use a USB flash drive for a more professional appearance.

Versatile Power and Mounting Options
Each unit can be powered via DC input using the included power supply when working on set. In field applications or in studio spaces with limited outlets, both units offer battery plate options. The transmitters feature an L-series battery plate, and the receiver features a V-mount battery plate for higher-capacity power sources. Use the 1/4"-20 threads on the units or the cold shoe adapter to secure them to the mounting configurations of your choice.

Inputs/Outputs
Antenna I/O Transmitter/Receiver: 2x RP-SMA
Video I/O Transmitter: 1x HDMI 1.4b Input
  Transmitter: 1x BNC (3G-SDI) Input
  Transmitter: 1x BNC (3G-SDI) Loop Output
  Receiver: 2x HDMI 1.4b Output
  Receiver: 2x BNC (3G-SDI) Output
Embedded Audio HDMI/SDI
Audio I/O No
Power I/O Transmitter/Receiver: 1x Barrel Input
Other I/O Transmitter/Receiver: 1x USB-C
  Receiver: 1x RJ45 (10/100 Ethernet)
Encryption No
Wireless
Wireless Range 3000' / 914.4 m
Channel Bandwidth 40 MHz
Frequency Range 5.1 to 5.85 GHz
Latency 33 ms
RF Power < 23 dBm
RF Sensitivity -90 dBm
Wi-Fi Yes
Bluetooth No
Mobile App Compatible No
Cellular Support No
Format Support
Video Format HDMI/SDI
  1080p: 60/59.94/50/30/29.97/25/24/23.98
  1080i: 60/59.94/50
  720p: 60/59.94/50
Audio Format Not Specified by Manufacturer
Timecode Support No
Power
Input Power 6 to 16 VDC
Battery Receiver: 1x V-Mount on Fixed Plate
  Transmitter: 1x L-Series Mount on Fixed Plate
Power Consumption Transmitter: 10 W
  Receiver: 11 W
Mounting
Tripod/Accessory Mounting Receiver/Transmitter, Bottom
  1x 1/4"-20 Female
General
Status Display On Receiver Only
Environmental Resistance No
Dimensions Transmitter: 4.5 x 2.7 x 1.4" / 114.8 x 69 x 35.5 mm
  Receiver: 5.6 x 3.4 x 1.3" / 142 x 87.2 x 33.2 mm
Weight Transmitter: 7.4 oz / 210.00 g
  Receiver: 15.5 oz / 440.00 g
