Kinefinity TERRA 6K Pro Package

by Kinefinity
Verfügbarkeit: 7-10 days delivery
SKU
Kine-TERRA-6K-PRO-KM

TERRA, Smallest, Cine Camera with high performance, easy to be used like DSLR.

11.198,50 € 8.958,80 €

Paket beinhaltet

  • 1 x TERRA Camera Body
  • 1 x KineMON 5" FullHD monitor
  • 1 x SideGrip: Full Function Battery Grip
  • 1 x GripBAT 45Wh for SideGrip
  • 1 x KineMAG 500GB
  • 1 x Kine AC Adapter
  • 1 x Kine D-TAP Power Cord
  • 1 x KineBACK Module
  • 1 x KineKIT-TERRA
  • 1 x TERRA Solid Case
  • 1 x WIFI Control Option

TERRA, the smallest cinema camera with high performance, easy to be used like DSLR. Three models based on different CMOS imaging sensor: TERRA 4K/5K/6K. All models can work up to 100fps @4K Wide, 200fps@ 2K Wide, and record as Apple ProRes422HQ or lossless compressed RAW on standard 2.5″ SSD. Besides, TERRA 4K features Dual Native ISO : 3200/800.

TERRA Pro package includes nearly all accessories and the in-camera options: professional KineBACK module, solid and durable KineKIT-TERRA, WIFI control option and TERRA solid case compared to basic package.

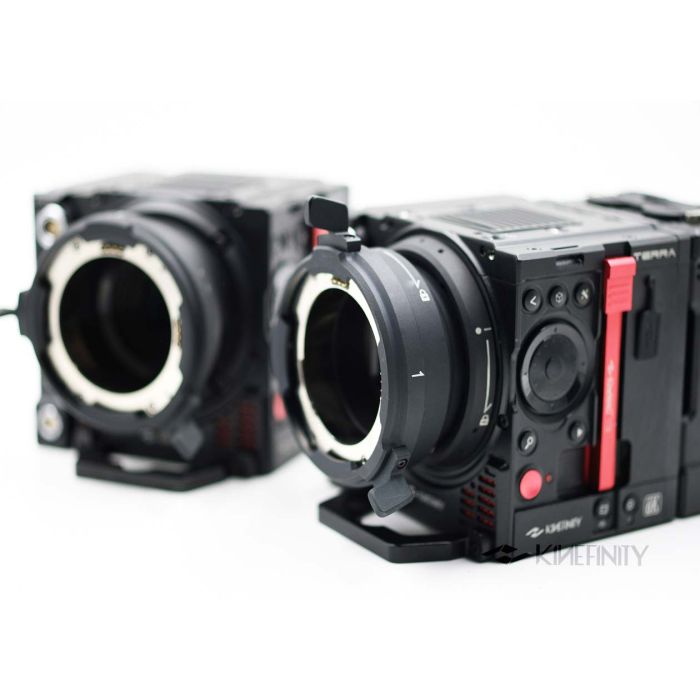

TERRA has universal KineMOUNT as the native mount, but it should work with different types of adapters for lenses.

With KineMOUNT, you will get the maximum possibility for using different lens even with different mounts: using different mounting adapter on demand. Besides, just like attaching a lens, it is very easy and fast to attach the adapter to KineMOUNT with no need of adjusting FFD.

 TERRA Lens mounts:

    1. PL mounting adapter II: For cinema PL lens;
    2. PL mounting adapter II with e-ND: For cinema PL lens with built-in electronic ND;
    3. EF Mounting Adapter II: For EF lens;
    4. EF mounting adapter II with KineEnhancer: For equivalent full-frame shooting with full-frame EF lens;
    5. EF Mounting Adapter II with e-ND: For EF lens with built-in electronic ND;
    6. SONY FE/E Mounting Adapter: For SONY FE/E lens, currently the E mounting adapter only supports full manual lenses like Fuji MK18-55, 50-135;
    7. Nikon F mounting adapter II: For Nikon lens;
    8. Nikon F mounting adapter II with KineEnhancer: For equivalent full-frame shooting with full-frame Nikon F lens.

Note: EF mounting adapter supports electronic iris-control, while Nikon F mounting adapter does not support electronic iris-control, but it can support only G lens iris-control by technical ring. In addition, individual mounting adapters are accessories, not included in the body when purchase.

Since 2014, every mount or mounting adapter made by Kinefinity is lock-type mount, like cinema PL mounting lock mechanism. It provides much better stability; fits very well in professional way when video shots using follow-focus gear.

RESOLUTION, FRAME RATE AND CODECS
Image Format Format Resolution Max FPS Codec
S35 6K HD 5760x3240 30 ProRes or KRW
6K HD Wide 5760x2400 40 ProRes or KRW
4K HD (Oversample) 3840x2160 30 ProRes
4K HD Wide  (Oversample) 3840x1600 40 ProRes
4K HD (HiSpeed) 3840x2160 74 ProRes or KRW
4K HD Wide (HiSpeed) 3840x1600 100 ProRes or KRW
Golden 3K 2880x1620 30 ProRes or KRW
Golden 3K Wide 2880x1200 40 ProRes or KRW
Golden 2K HD (Oversample) 1920x1080 30 ProRes
Golden 2K HD Wide (Oversample) 1920x800 40 ProRes
M4/3 4.3K 4:3 Anamorphic 4320x3240 30 ProRes or KRW
4K 4:3 Anamorphic 4096x3072 30 ProRes or KRW
4K 4096x2160 44 ProRes or KRW
4K Wide 4096x1716 56 ProRes or KRW
4K HD 3840x2160 44 ProRes or KRW
4K HD Wide 3840x1600 60 ProRes or KRW
3K HD (HiSpeed) 2880x1620 115 ProRes or KRW
3K HD Wide (HiSpeed) 2880x1200 150 ProRes or KRW
Golden 2.2K Ana 2176x1620 30 ProRes or KRW
Golden 2K Ana 2048x1536 30 ProRes or KRW
Golden 2K 2048x1080 44 ProRes or KRW
Golden 2K Wide 2048x860 54 ProRes or KRW
Golden 2K HD 1920x1080 44 ProRes or KRW
Golden 2K HD Wide 1920x800 60 ProRes or KRW
S16 3K 3072x1620 59 ProRes or KRW
3K Wide 3072x1280 75 ProRes or KRW
3K HD 2880x1620 59 ProRes or KRW
3K HD Wide 2880x1200 75 ProRes or KRW
2K (HiSpeed) 2048x1080 170 ProRes or KRW
2K Wide (HiSpeed) 2048x800 200 ProRes or KRW
2K HD (HiSpeed) 1920x1080 170 ProRes or KRW
2K HD Wide (HiSpeed) 1920x800 225 ProRes or KRW
16mm 2K 2048x1080 88 ProRes or KRW
2K Wide 2048x860 110 ProRes or KRW
2K HD 1920x1080 88 ProRes or KRW
2K HD Wide 1920x800 118 ProRes or KRW

TECHNICAL SPECIFICATION
Camera Type S35 Film-Style Digital Cinema Camera
Imaging Sensor 6K S35 Format CMOS Crop factor over FF: 1.6
Shutter Rolling Shutter
Lens Mount Native KineMOUNT as omni mount to be PL/EF/SONY E/Nikon F by solid mounting adapters *PL, PL e-ND *EF, EF e-ND, EF Enhancer *SONY E *Nikon F, F Enhancer
Record Formats Codec Type Codec Format Bit Depth
Compressed Lossless KineRAW .krw 12bits
ProRes422HQ/422/422LT/Proxy .mov 10bits
Record Res 6K 4K Golden 3K
5760x3240 3840x2160 2880x1620 4320x3240, 4:3
Max FPS 30@6K 100@4K Wide 150@3K Wide 225@2K HD Wide
Dynamic Range 16 stops/14 stops *Golden 3K/regular 6K
ISO/EI Base Max
1600/800 20480 *Golden 3K/regular 6K
Shutter Angle 0.7°~358°
Monitoring KineMON Port x1 HD Port x1 SDI x2* *Applicable on KineBACK
Record Media 2.5" SSD with 7mm Height
Audio Capture In-camera MIC; 3.5mm MIC-in; KineAudio* with 48V Phantom Power XLR *Applicable on KineBACK
Sync Function Tally, AutoSlate, Beeper, Trigger, SMPTE LTC*, 3D/Multi-cam Sync* *Applicable on KineBACK
LUT Preset: Neutral/Flat, Support Custom LUT
Power Power In Consumption
DC IN 11~19V/SideGrip/V-Mount* 21W *Applicable on KineBACK
Body Color Deep Grey
Weight 2.1 lb / 980 g *Only Body
Size 4.5x4.3x3.7" / 115x110x95 mm *W/o projections, WxHxL
Operating Temp 0°C to +40°C
