Kron Technologies Chronos 1.4 8GB Colour Sensor

SKU

CR14-1.1-8C-1

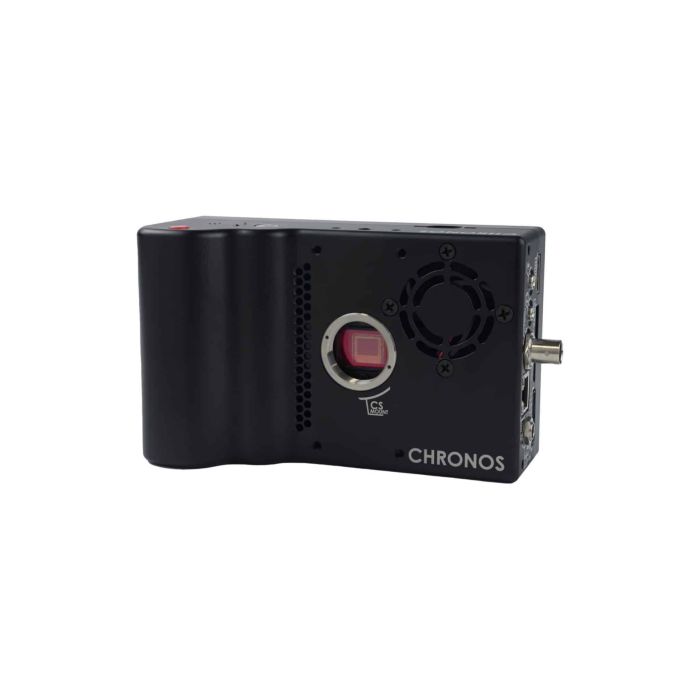

The Chronos 1.4 high-speed camera is a comprehensive tool, boasting high resolution and frame rates, trusted by leading R&D centers, Aerospace facilities, Universities, and Media Producers globally.

Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.

Neu

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Paket beinhaltet

Chronos 1.4 Camera Body
CS-C Adapter Ring
C Mount Dust Cap
2mm Allen Wrench
32GB SanDisk SD Card
EN-EL4a Battery
19V 40W AC Adapter
Region-specific AC Power Cord
User Manual

Details

Main Features
High-Resolution: 1280x1024 @ 1,069FPS (max res)

High Frame-Rate: 2/3″ format image sensor captures up to 40,413 Frames Per Second (FPS) at lower resolution.

All-in-One: Completely standalone, untethered operation with a 5″ inch touchscreen display and battery for portability.

Internal Storage: 8GB, 16GB, and 32GB RAM memory options allow for 4, 8, and 16 second recording times. Store footage via the SD card slot.

Recording Methods: Normal, Segmented, Gated Burst and Live Slow Motion offer versatile image capture options for dynamic environments.

Lens Mounting: Nikon F, Canon EF and C mounts available as field-swappable options.

Colour or Monochrome: High sensitivity ISO 320-5,120 (Colour) and 740-11,840 (Monochrome) allows filming in dynamic lighting conditions.

Trigger Options: I/O ports enable synchronization and remote triggering remotely via cable, sound, and web-triggers.

Focus Peaking: Highlights edges for quick and clear focus with zebra lines help correct exposure.

API: Open source, REST-based Application Programming Interface (API) is included for integration into custom software or control environments.

Mehr Informationen

CAMERA
Imaging	1280×1024 @ 1069FPS
Memory	8GB, 16GB, or 32GB
Record Time (in seconds)	4 (8GB), 8 (16GB), 16 (32GB) at max resolution
Lens Mount	CS/C mount included (options available)
Backfocus	Field adjustable
IR Filter	650nm, user removable, 24 x 16 x 1.1mm
Display	5” 800×480 capacitive touchscreen, 1000 nit daylight visible
Enclosure	Anodized CNC machined aluminum
Cooling	Active cooling, variable-speed fan (fan-off option)
Dimensions	155mm x 96mm x 67.3mm (6.11” x 3.78” x 2.65”) w/o lens
Weight	1.06 kg (2.34 lbs) without lens
VIDEO FORMATS
H.264	Standardized MP4 files at bitrates up to 60Mbps
Cinema / DNG Raw	Standard Adobe CinemaDNG raw files
TIFF	Standard TIFF raw files with timestamps
Storage Devices	SD, USB, SSD, or SMB/NFS network drives
IMAGE SENSOR
Resolution	1280x1024p maximum
Speed	1.4Gpx/s
Dimensions	8.45 x 6.76mm (2/3” format, 1.3-Megapixel, 3.9x Crop Factor)
Pixel Pitch	6.6um
Sensitivity (ISO)	Color – ISO 320 to 5120 / Mono – ISO 740 to 11840
Shutter	Electronic global shutter, 1/fps to 1μs (1/1,000,000 s)
Dynamic Range	9.4 stops (56.7 dB)
Bit Depth	12-bit
BATTERY
Type	EN-EL4a
Runtime	1.5 hour recording
Charge Time	2 hours (0-80%) with in-camera charger
Inputs/outputs
Power Input	17-20V 40W (5.5/2.5mm barrel jack, positive tip)
Network	Gigabit Ethernet
Trigger	2 trigger inputs/frame strobe outputs (BNC & Aux) Adjustable input threshold 0 to 6.6V Electrically isolated trigger input (Aux connector) Trigger with sound, laser, and lightning using accessories
Video	HDMI output 720p or 1080p (default) @ 60FPS, video only
USB	USB type A (host) and micro-B (device)
SATA	eSATA 3Gbps to SATA 2.5” lll SSD (5V power)
TRIGGER MODES
End Trigger	Records until a defined delay after trigger
Toggle	Starts and stops with button press
Exposure Trigger	External signal sets synchronization frame-rate
Shutter Gating	External signal sets the exposure synchronization and frame rate
Frame Sync Output	Outputs a signal indicating its frame rate and exposure
TRIGGER PORTS
BNC	Female BNC connector
AUX	Phoenix 1778890 8-pin terminal block connector, including isolated trigger input.
SOFTWARE
Control	Through web page or REST interface with USB or CAT ethernet cable
Stream	Live or Playback Mode network streaming via RTSP stream and VLC player.
APIs	HTTP REST Interface, open-source codebase
NETWORK CONTROL
Network Control	Through web page or REST interface with USB or CAT ethernet cable
RECORDING MODES
Normal	Records into the ring buffer. Once a trigger occurs, video can be reviewed and saved.
Segmented	Video memory is divided into segments, each recording as in the Normal mode above. Number of segments is user selectable.
Gated Burst	Frames are captured while trigger is active
Live Slow Motion	Short segment of video is recorded and then played back in a loop.
NORMAL SPEED RECORD
Continuous	Video is saved continuously at up to 60FPS to MP4 files on removable storage. Operates like a standard video camera.
ASSISTIVE
Focus Aid	Highlights sharp edges to aid focusing
Zebras	Rolling diagonal lines indicate clipped (overexposed) areas
Viewfinder Zoom	Zooms in to allow easier focusing
Overlay	Displays frame and time information on top of footage
ENVIRONMENTAL
Operating Temperature	-20 °C to +40 °C (-4 °F to +104 °F)
