Laowa 12mm T2.9 Zero-D Cine Lens (Dual Scales) L Mount

by Laowa
Verfügbarkeit: 7-10 days delivery
SKU
VE1229LD

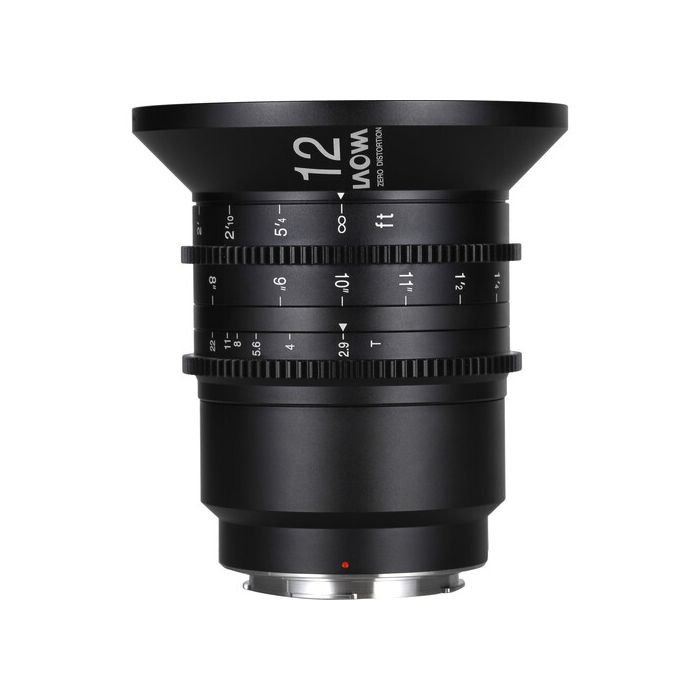

The Leica L-mount Laowa 12mm T2.9 Zero-D Cine Lens from Venus Optics provides a wide, 122° angle of view well suited for outdoor and landscape shots and in tight interior locations, and it is optimized for digital cinematography. It is so lightweight and compact that it can be used not only for handheld shooting, it is also light enough for use on gimbals.

1.907,00 € 1.525,60 €

Paket beinhaltet

  • Venus Optics Laowa 12mm T2.9 Zero-D Cine Lens (Leica L)
  • Front Lens Cap
  • Rear Lens Cap
  • 114mm Step-Up Ring
  • Shim Set
  • Waterproof Pelican Case

The lens produces an image circle that will cover full-frame, VistaVision, and ARRI ALEXA LF size sensors or smaller.

The 12mm cine lens features a maximum aperture of T2.9 with 16 elements in 10 groups. Its 7-blade aperture provides a soft, pleasing bokeh, a shallow depth of field with little to no distortion, and a 7" close focus distance from the camera sensor (4" from the lens front). The focus and aperture rings feature industry-standard 0.8-MOD gearing that will accommodate standard cine follow focus motors.

The 102mm front diameter can be stepped up to 114mm with the included adapter to fit industry-standard matte boxes to prevent glare and reflection, as well as to add filters. Focus, aperture, and depth of field markings are in feet on the side of the lens to aid focus pullers.

In addition to the 114mm step-up adapter ring, a shim set is included for calibration, as well as a hard-shell Pelican case with custom foam to protect and transport the lens.

Leica L Mount

Ultra wide-angle 12mm T2.9 prime designed for Leica L-mount cine cameras with up to full-frame/VistaVision/ALEXA LF sensor

Low Distortion, 7-Blade Iris

Designed with 16 elements in 10 groups, low distortion, and 7-blade iris

114mm Step-Up Ring

102mm front diameter with 114mm step-up adapter ring to fit industry-standard matte box

7" Close Focus

7" close focus from sensor (4" from lens front), smooth 270° focus rotation, and standard 0.8 MOD focus ring

Hard-Shell Case

Shim set and hard-shell Pelican case with custom foam are included



Focal Length 12mm
Lens Mount Leica L
Lens Format Coverage Full Frame
Image Circle 44.7 mm
Maximum Aperture T2.9
Minimum Aperture T22
Horizontal Angle of View Super35: 122°
Minimum Focus Distance From Camera Sensor: 17.8 cm
Optical Design 16 Elements in 10 Groups
Diaphragm Blades 7
Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
Front Diameter 102 mm
Filter Thread No
Focus Scales Imperial
Focus Rotation 270°
Image Stabilization No
Length 87 mm
Weight 675 g
