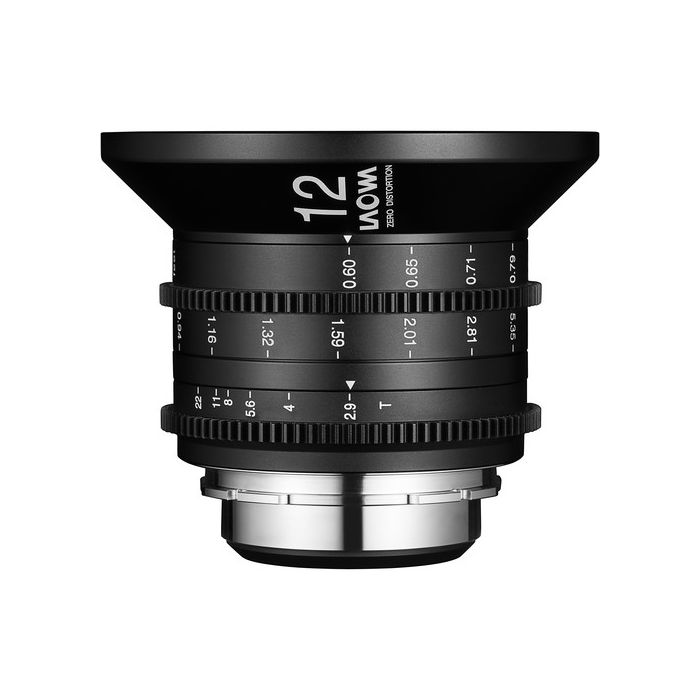

Laowa 12mm T2.9 Zero-D Cine (Meters) Canon EF

by Laowa
Verfügbarkeit: 7-10 days delivery
SKU
VE1229CCM

The Canon EF mount Laowa 12mm T2.9 Zero-D Cine Lens from Venus Optics provides a wide, 122° angle of view well suited for outdoor and landscape shots and in tight interior locations, and it is optimized for digital cinematography. It is so lightweight and compact that it can be used not only with handheld shooting, it is also light enough for use on gimbals.

1.907,00 € 1.525,60 €

Paket beinhaltet

  • Venus Optics Laowa 12mm T2.9 Zero-D Cine Lens (Canon EF)
  • Front and Rear Lens Caps
  • 114mm Step-Up Ring
  • Shim Set
  • Pelican Case

The lens produces an image circle that will cover full-frame, VistaVision, and ARRI ALEXA LF sized sensors or smaller.

The 12mm cine lens features a maximum aperture of T2.9 with 16 elements in 10 groups. Its 7-blade aperture provides a soft, pleasing bokeh, a shallow depth of field with little to no distortion, and a 7" close focus distance. The focus and aperture rings feature industry-standard 0.8 pitch gearing that will accommodate standard cine follow focus motors.

The 102mm front diameter can be stepped up to 114mm with the included adapter to fit industry-standard matte boxes to prevent glare and reflection, as well as to add filters. Focus, aperture, and depth of field markings are in feet on the side of the lens to aid focus pullers.

In addition to the 114mm step-up adapter ring, a shim set is included for calibration, and a hard-shell Pelican case with custom foam is included to protect and transport the lens.

Ultra wide-angle 12mm T2.9 prime designed for EF mount cine cameras with up to full-frame/VistaVision/ALEXA LF sensor

Designed with 16 elements in 10 groups, low distortion, and 7-blade iris

102mm front diameter with 114mm step-up adapter ring to fit industry-standard matte box

7" close focus, smooth 270° focus rotation, and standard 0.8 MOD focus ring

Shim set and hard-shell Pelican case with custom foam are included

Focal Length 12mm
Lens Mount Canon EF
Lens Format Coverage Full Frame
Image Circle 44.7 mm
Maximum Aperture T2.9
Minimum Aperture T22
Horizontal Angle of View Super35: 122°
Minimum Focus Distance From : 17.8 cm
Optical Design 16 Elements in 10 Groups
Diaphragm Blades 7
Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
Front Diameter 102 mm
Filter Thread No
Focus Scales Imperial
Focus Rotation 270°
Image Stabilization No
Length 87 mm
Weight 675 g
