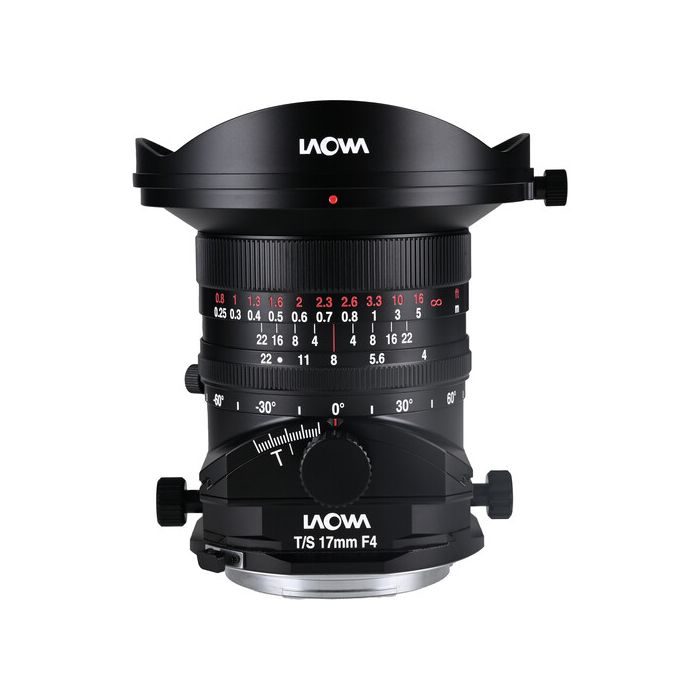

Laowa 17mm f/4 Zero-D Tilt-Shift Fuji GFX

by Laowa
Verfügbarkeit: 7-10 days delivery
SKU
VE1740TS-GFX

Combining an ultrawide 17mm focal length with precise perspective and focus plane control, the Laowa 17mm f/4 Zero-D Tilt-Shift Lens from Venus Optics is designed for medium format FUJIFILM G-mount cameras and applications that demand architectural accuracy.

1.522,00 € 1.217,60 €
Neu

Paket beinhaltet

  • Venus Optics Laowa 17mm f/4 Zero-D Tilt-Shift Lens (FUJIFILM G)
  • Front Lens Cap
  • Rear Lens Cap
  • Lens Hood

Combining an ultrawide 17mm focal length with precise perspective and focus plane control, the Laowa 17mm f/4 Zero-D Tilt-Shift Lens from Venus Optics is designed for medium format FUJIFILM G-mount cameras and applications that demand architectural accuracy. Its ±8mm shift capability allows photographers to correct converging vertical lines directly in-camera, while the ±10° tilt adjustment enables manipulation of the focus plane for expanded depth-of-field control or creative miniature-style effects. The lens provides a broad 104° angle of view while Laowa's Zero-D optical design minimizes distortion at the source, producing clean, natural geometry across the frame.

The optical system incorporates 18 elements in 12 groups, including extra-low dispersion, ultrahigh refraction, and aspherical elements to maintain sharpness and clarity across wide compositions. A 14-blade iris renders smooth out-of-focus areas, while the manual focus design allows precise control down to a close focusing distance of 9.8". Designed for professional workflows, the lens includes a built-in 360° rotating tripod support with an integrated Arca-type plate and sports a standard 86mm front filter thread.

Perspective and Focus Control
  • ±8mm shift capability for correcting converging vertical lines in architectural and interior photography
  • ±10° tilt adjustment allows manipulation of the focus plane for expanded depth of field or miniature-style effects
  • Wide 104° field of view provides expansive coverage for landscapes, real estate, and tight interior spaces
  • 360° rotating lens body enables quick orientation changes between vertical and horizontal compositions
Optical Performance
  • Zero-D optical design minimizes distortion for accurate geometry straight out of camera
  • 18-element, 12-group optical structure with four extra-low dispersion, five ultra-high refraction, and two aspherical elements
  • f/4 to f/22 aperture range enables depth control while maintaining edge-to-edge sharpness
  • 14-blade diaphragm contributes smooth bokeh and natural highlight rendering
Professional Design
  • Manual focus mechanism with a minimum focus distance of 9.8” for detailed close-up compositions
  • Integrated tripod support with Arca-Swiss plate for stable mounting and streamlined workflow
  • 86mm front filter thread allows direct use of screw-in filters without external holders
  • Compact design measuring 3.7 x 4.4” and weighing 1.8 lb for maneuverability
Focal Length 17mm
Aperture Maximum: f/4
  Minimum: f/22
Lens Mount FUJIFILM G
Lens Format Coverage Medium Format
Angle of View 104°
Tilt-Shift +/- 10° Tilt
  +/- 8 mm Shift
Minimum Focus Distance 9.8" / 25 cm
Optical Design 18 Elements in 12 Groups
Aperture/Iris Blades 14
Focus Type Manual Focus
Tripod Mounting Fixed and Rotating Collar
Filter Size 86 mm (Front)
Dimensions ø: 3.7 x L: 4.4" / ø: 93 x L: 111 mm
Weight 1.8 lb / 810 g
