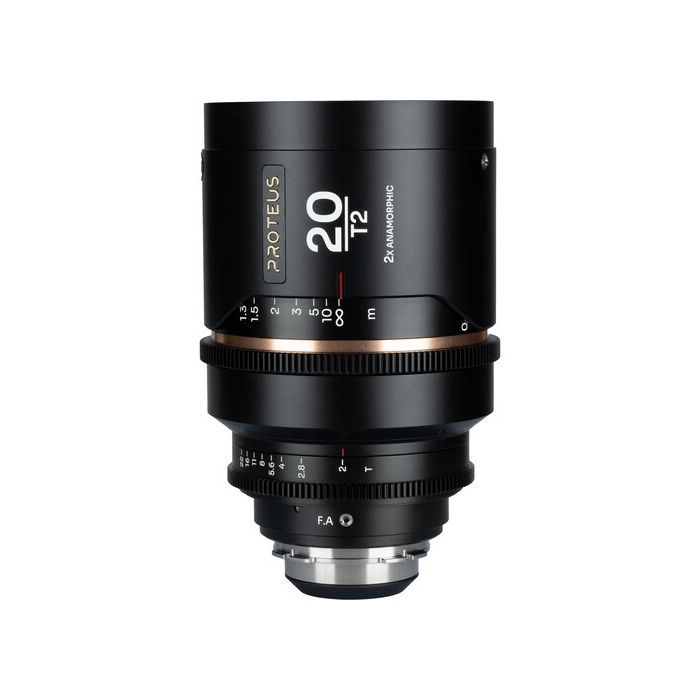

Laowa Proteus 2X Anamorphic 20mm T2 - Amber (Meters) Arri PL (Default) + EF

Patented Anamorphic Design

Laowa Proteus 2X Anamorphic Series adapted a front anamorphic design for a robust optical composition. It can deliver the image sharpness of modern quality while retaining the vintage look of anamorphic characteristics including elliptical bokeh and signature flares.

Constant 2X squeeze ratio

Laowa Proteus Series is delicately designed with a constant 2X squeeze ratio to exemplify the classic wide-screen anamorphic look for cinema use. It works comfortably with 4:3 or 6:5 sensors which are usually defaulted in professional cinema cameras to deliver a 2.66:1 or 2.4:1 image after de-squeeze. Cinematographers and filmmakers can use the footage entirely or crop it to a 2.39:1 with minimal loss of resolution.
With the precision in optical design, the 2X squeeze ratio can be achieved in any focus distance, maintaining the relative shape of the object and avoiding anamorphic mumps.

T2 Large Aperture

The iris ranges from T2 to T22 for the entire series, supporting filming in all light conditions and satisfying dynamic on-set needs. Ravishing shallow depth of field can be created at a large aperture and the lenses can render organic waterfall focus roll-off in the background, one of the distinct anamorphic characteristics that are wildly desired by the film industry.

Outstanding sharpness

The optical performance is fine-tuned to deliver excellent color rendition and contrast. The Proteus Series can reproduce high image quality and sharpness even when shooting wide open, the chromatic aberration is also well-controlled.

Close focusing distance

Laowa Proteus Series has a minimum focusing distance of 55cm (1.8 feet), super close-up shots can be easily captured, cinematographers can have more variety in framing for storytelling. Also, the close-up shots usually generate a shallower depth of field to the image, which adds aesthetic and cinematic vibes to the frame.

Pleasant oval bokeh

Compare to 1.5X or 1.8X Anamorphic lenses, the Proteus Series can create elliptical bokeh in the out-of-focus that are thinner and longer, providing a more prominently anamorphic look to the shots.

Amber, blue and silver flare colors

Comes with a classic sci-fi blue, warm and elegant amber and a neutral silver flare color options, cinematographers can choose the right flare color to set the tone for the film. The silver flare will change color according to the light source.

Low focus breathing

The Proteus lenses have a subtle change in the angle of view when the focusing distance is altered. It supports filmmakers to depict a scene by shifting the focus between subjects.

User-friendly cine housing

Built with modern convenience, all Proteus lenses have a wide array of tailored cine features to support demanding production needs and efficiently pair with other cine gears.

• Back focus adjustment mechanism – Calibrating the back focus with the lens mounted on the camera directly without going through a tedious shimming process.
• Unified gear position – All Proteus lenses can be switched quickly between focal lengths to work with the same set of gears.
• 0.8 mod gear – for both aperture and focus gear to work with the pitching
• Ø 114mm outer diameter
• Ø 105mm filter thread
• 300° focus throw – enhanced accuracy in focus adjustment
• lens support – included in the package

Full-frame coverage with 1.4X expander

All Proteus lenses are compatible with the Laowa 1.4X full frame expander to cover full-frame sensor, the image quality and sharpness are pleasantly maintained.
