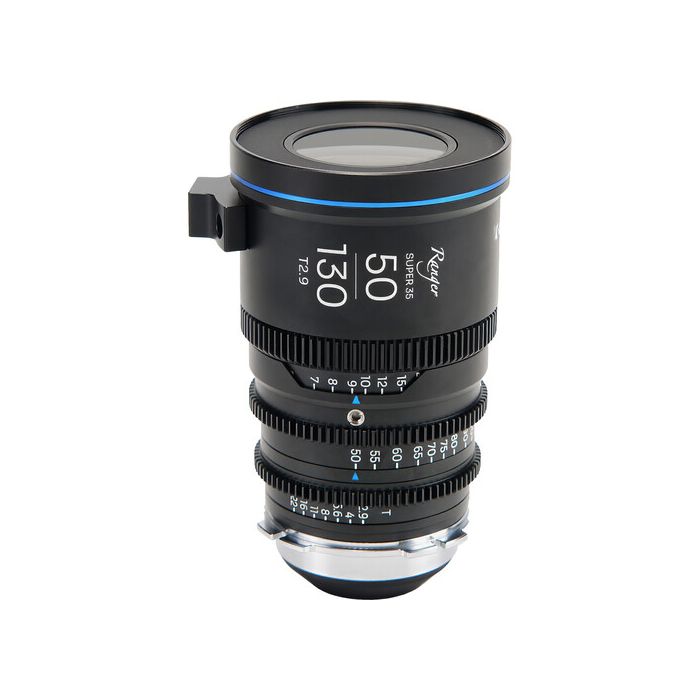

Laowa Ranger S35 Lite 50-130mm T2.9 Cine Lens

by Laowa
Verfügbarkeit: 7-10 days delivery
SKU
RANL50130PL

Measuring just 5.35" in length and weighing only 1.46 lb, the compact Laowa Ranger 50-130mm T2.9 S35 Lite Compact Cine Zoom Lens from Venus Optics covers Super35 sensors and is ideal for gimbal, drone, and handheld use.

3.295,75 € 2.636,60 €

Paket beinhaltet

  • Venus Optics Laowa Ranger S35 Lite 50-130mm T2.9 Cine Lens (ARRI PL)
  • Front Lens Cap
  • Rear Lens Cap
  • Support Foot

Compact S35 Cine Zoom

Measuring just 5.35" in length and weighing only 1.46 lb, the compact Laowa Ranger 50-130mm T2.9 S35 Lite Compact Cine Zoom Lens from Venus Optics covers Super35 sensors and is ideal for gimbal, drone, and handheld use. When combined with the separately available 11-18mm and 17-50mm Lite zooms, the three lenses provide an extensive 11-130mm total range. Zoom features include 0.8 MOD cine gears on focus, iris, and zoom rings, focus marks in both feet and meters, and a 77mm front filter thread.

ARRI PL with Optional Bayonet Mounts

The Laowa Ranger S35 zoom series includes a native ARRI PL mount that can be swapped out with separately available interchangeable Canon RF, Fuji X, Nikon Z, Sony E, and L mounts for use with select cameras.

Constant T2.9 Aperture

This 50-130mm zoom maintains a T2.9 maximum aperture across the entire zoom range, ensuring optimal exposure even in challenging lighting conditions.

Outstanding Optical Performance

Outstanding optical performance ensures consistently sharp, high-contrast images with accurate color reproduction.

Parfocal Design

This parfocal lens maintains precise focus even while zooming, ensuring that your subject stays razor-sharp and perfectly focused, whether zooming in or out.

Short Focus Distance

With a relatively short 29.5" close focus distance, this zoom excels at capturing intricate details and small subjects.

Minimal Breathing

Near-invisible focus breathing ensures smooth and uninterrupted storytelling with seamless focus transitions.

Optional 1.33x Adapter

Use this zoom with the separately available 1.33x anamorphic front-mounted adapter to increase its versatility across different shooting formats.

77mm Filter Thread

A 77mm filter can be attached directly to the lens for a variety of handy setups. This smaller diameter is preferable when doing run-and-gun shots or using an aerial drone.

Dual Focus Scales

Focus marks are printed on the lens body in both feet and meters.

0.8 MOD Gears

Industry-standard 0.8 MOD gears are installed on the focus, iris, and zoom rings.



Focal Length 50 to 130mm
Maximum Aperture T2.9
Minimum Aperture T22
Lens Mount ARRI PL
Interchangeable Mount Yes
Lens Format Coverage Super35/APS-C
Image Circle 31.5 mm
Angle of View Super 35
  Horizontal: 32.2 to 12.7°
Focus Scales Metric, Imperial
Optical Design 13 Elements in 17 Groups
Filter Thread 77 mm
Zoom Ratio 2.6x
Minimum Focus Distance From Unspecified Point in Lens: 29.5" / 75 cm
Maximum Magnification Ratio 0.18:1
Diaphragm Blades 11
Image Stabilization No
Lens Mounting 1x 1/4"-20 (via Included Support Foot)
Gear Standard Focus: 0.8 MOD
  Iris: 0.8 MOD
  Zoom: 0.8 MOD
Gear Rotation Focus 270°
  Iris 42°
  Zoom 100°
Electronic Communication No
Diameter Front: 3.1" / 80 mm
Length 5.35" / 135.89 mm
Weight 1.46 lb / 662 g
