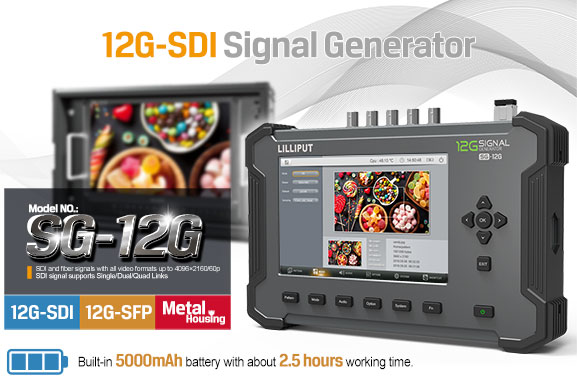

Lilliput 12G-SDI Signal Generator
by LilliputBuilt-in 5000mAh battery with about 2.5 hours working time – Support 12-SDI Fiber Signals
12G-SDI signal 4K 60/59.94p YCbCr 4:2:2 10 bits – Supports ITU-R BT.2020
Reference input support (Internal synchronization / external synchronization selectable)
12G-SDI Single-Link 4K 60/59.94p YCbCr 4:2:2 10 bits (SMPTE 2082-10)
6G-SDI Single-Link 4K 30/29.97p YCbCr 4:2:2 10 bits (SMPTE 2081-10)
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Lilliput 12G-SDI Signal Generator
Pattern Measurement
To test color temperature and grayscale of monitor with various types of patterns, such as color bar,
monochrome display, and customized pictures.

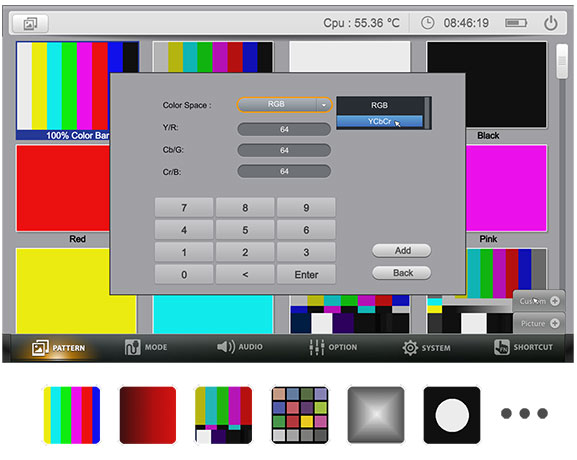

Preset & importable patterns
Custom: Free to create any color picture, based on two different color space -- RGB or YCbCr.
Picture: Built-in plenty of preset patterns, and user-definable pictures imported to the generator to meet various test requirements.

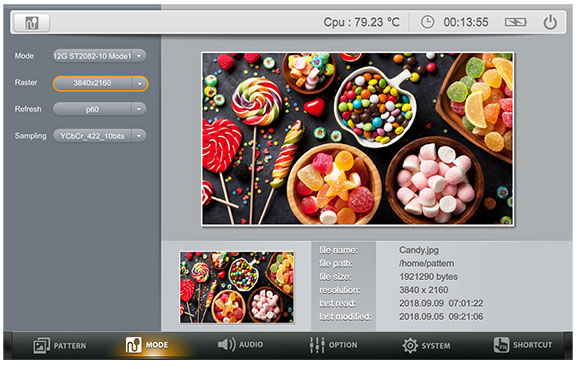

Signal Compatibility
Supports SD, HD, 3G, 6G and 12G-SDI signals;
SDI and Fiber signals up to 4K 60Hz. SDI conversion among of different link structures, SQ and 2SI.
Mode Options: Selection among of 12G-SDI/6G-SDI/3G-SDI/HD-SDI/SD-SDI signal formats.
Raster Options: Different resolutions options corresponding to different Modes.
Refresh Options: Different Raster rates corresponding to different Modes & Raster.
Sampling Options: Different GBR & YCbCr sampling rates based on the above options.

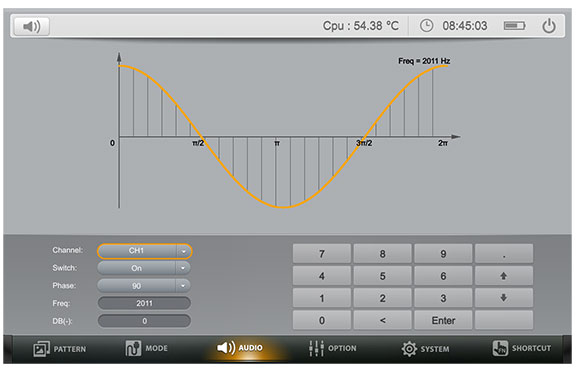

Audio Monitoring
A comprehensive audio monitoring tool supports up to 16 channels embedded AES/EBU audio,
with -60dB to 0dB range. And a 20 to 20000 frequency.
Channel Options: 16-channel SDI audio ranges from CH0 to CH15 for optional.
Switch Options: Off, On, All Off and All On are optional for 16-channel audio switch.
Phase Options: Options among of 0, 90, 180 and 270 for phase.
Frequency Options: Freq options can be customized from 20 to 20000 by users.
DB(-) Options : Freq options can be customized from -60bB to 0dB by users.

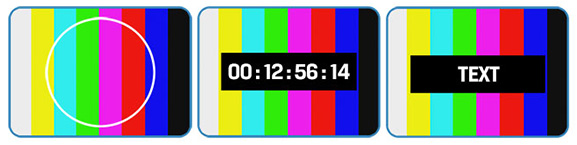

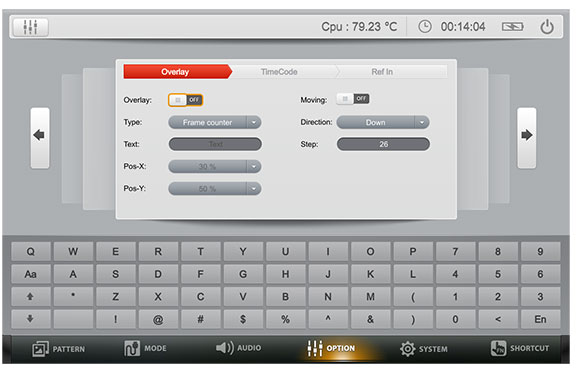

Ring Type: Ring type for optional under Overlay function.
Frame Counter Type: Frame counter type for optional under Overlay function.
Character Type: Character type for optional under Overlay function.
Text input will be displayed based on the specific X and Y axis that can be preset.

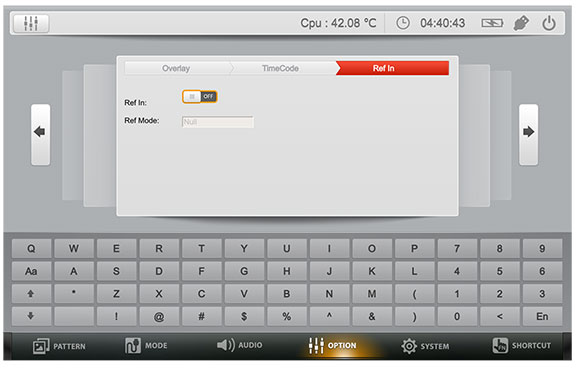

Ref In: Ref In used for frame synchronization to ensure input & output frames simultaneously.

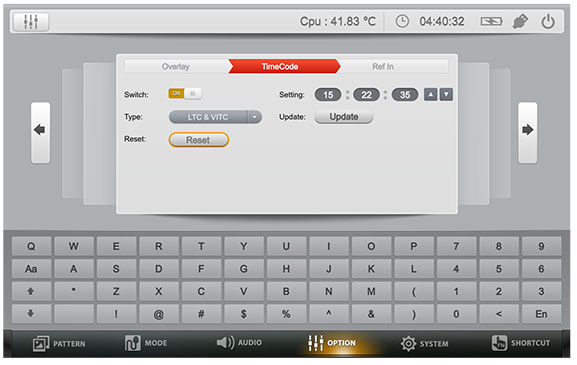

Time Code: Supports Linear time code(LTC) and Vertical interval time code(VITC).
Ring Type: Ring type for optional under Overlay function

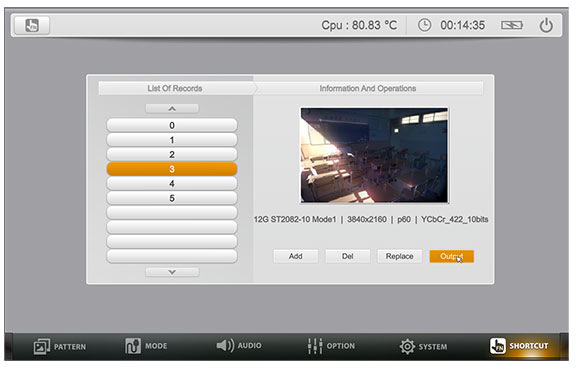

FN (Shortcut)
User-definable functions as shortcuts with great convenience.
Function Shortcut: Supports more than one hundred shortcut functions.
For time-saving and high efficiency when testing, users can manage shortcut functions through Add, Del, Replace and Output operations.

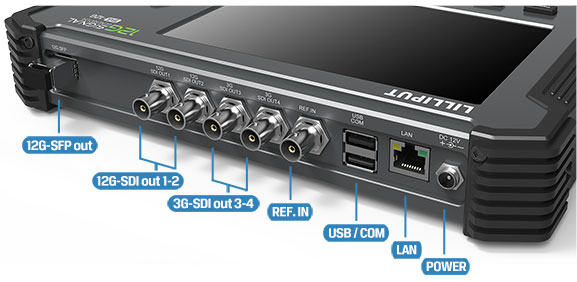

12G-SFP OUT: Support 12G-SDI fiber signals (Optional Module).
12G-SDI output×2: It supports single/dual/quad-link signal outputs, and backward compatible with 6G-SDI,
3G-SDI, HD-SDI & SD-SDI signals.
3G-SDI output×2: It supports 3G-SDI signal outputs, and backward compatible with HD-SDI & SD-SDI signals.
USB: USB used for external devices, such as USB flash disk, mouse and keyboard, etc.
DISPLAY
|
Display Screen | 7” IPS |
Physical Resolution | 1280×800 | |
Aspect Ratio | 16:10 | |
Brightness | 400cd/m² | |
Contrast | 800:1 | |
Viewing Angle | 178°/178°(H/V) | |
OUTPUT
|
12G-SDI | 2 |
3G-SDI | 2 | |
FIBER | 1 (Optional Module) | |
INPUT
|
REF | 1 |
USB | 2 | |
POWER
|
Current | 2.3A (12V) |
Input Voltage | DC 10-15V (XLR) | |
Power Consumption | ≤27W | |
Built-in Battery | 5000mAh | |
ENVIRONMENT
|
Operating Temperature | -10 +60 |
Storage Temperature | -30 +70 | |
DIMENSION
|

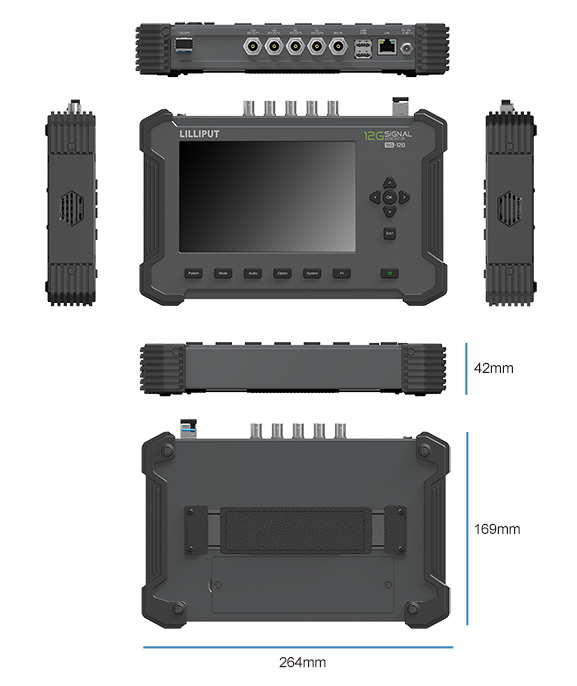

Dimension(LWD) | 264×169×42mm |
Weight | 3kg | |
12G-SDI Format
|
GBR 4:4:4 10bits | 23.98p/24p/25p/29.97p/30p |
GBR+A 4:4:4:4 10bits | 23.98p/24p/25p/29.97p/30p | |
YCbCr 4:4:4 10bits | 23.98p/24p/25p/29.97p/30p | |
YCbCr+A 4:4:4:4 10bits | 23.98p/24p/25p/29.97p/30p | |
GBR 4:4:4 12bits | 23.98p/24p/25p/29.97p/30p | |
YCbCr 4:4:4 12bits | 23.98p/24p/25p/29.97p/30p | |
YCbCr 4:2:2 12bits | 23.98p/24p/25p/29.97p/30p | |
YCbCr 4:2:2 10bits | 47.95p/48p/50p/59.94p/60p | |
6G-SDI Format
|
YCbCr 4:2:2 10bit | 23.98p/24p/25p/29.97p/30p |
GBR 4:4:4 10bit | 47.95p/48p/50p/59.94p/60p | |
GBR+A 4:4:4:4 10bit | 47.95p/48p/50p/59.94p/60p | |
YCbCr 4:4:4 10bit | 47.95p/48p/50p/59.94p/60p | |
YCbCr+A 4:4:4:4 10bit | 47.95p/48p/50p/59.94p/60p | |
GBR 4:4:4 12bit | 47.95p/48p/50p/59.94p/60p | |
YCbCr 4:4:4 12bit | 47.95p/48p/50p/59.94p/60p | |
YCbCr 4:2:2 12bit | 47.95p/48p/50p/59.94p/60p | |
3G-SDI/HD-SDI/SDI Format
|
Backward compatible | Backward compatible |
