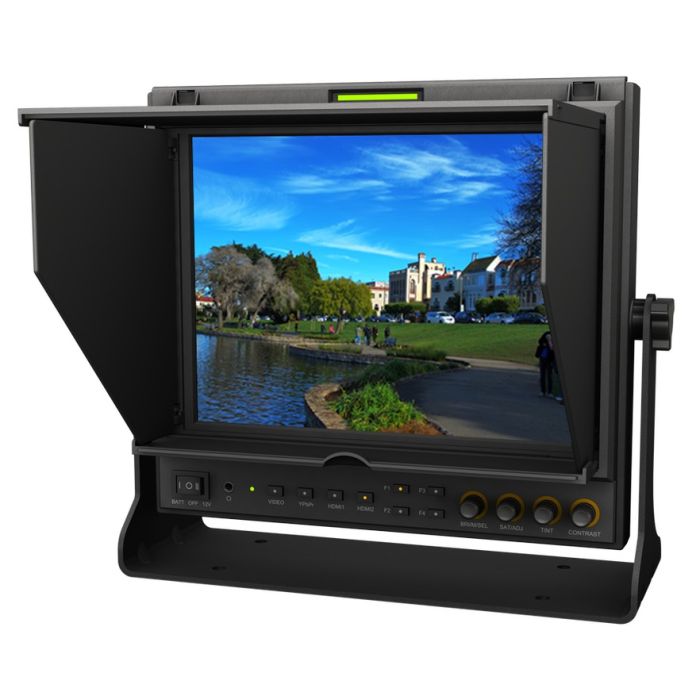

Lilliput 969A/O/P Monitor
by LilliputThe Lilliput 969A/O/P is a 9.7 inch 4:3 IPS LED HD broadcast monitor with dual HDMI inputs, component video and build-in sun hood. Optimised for studio and video editing work.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
The Lilliput 969A/O/P is a 9.7 inch 4:3 IPS LED HD broadcast monitor with dual HDMI inputs, component video and build-in sun hood. Optimised for studio and video editing work.
Note: 969A/P (with dual HDMI inputs, with BNC interfaces)
969A/O/P (with dual HDMI inputs & one HDMI output, with BNC interfaces)
9.7 inch monitor with 4:3 aspect ratio
The 9.7" LCD used in 969A/O/P is the ideal size for a small broadcast monitor. Large enough to pick out the finest details in a shot, but small enough to fit on any desk.
Physical high resolution broadcast monitor
High resolution is important to broadcast monitors because the higher resolution, the more detail you see. The physical high resolution (1024×768 pixels) provides clarity at an aspect ratio that works well with 16:9 content and 4:3 content.
600:1 contrast ratio
Lilliput understand that accurate colour representation is a vital attribute of a broadcast monitor. That's why 969A/O/P features a 600:1 contrast ratio LCD with IPS technology.
178° viewing angles
Broadcast monitors are often viewed by many different people at all angles, so the 178 degree viewing angle ensures the content does not get distorted.
Foldable sunhood becomes screen protector
Foldable sunhoods are now included across all Lilliput's pro-AV products. 969A/O/P's smart sunhood folds away to be a screen protector for the LCD, ideal for broadcast environments where mini monitors are exposed to lots of moving around!
1:1 pixel mapping - find the finest details
969A/O/P shows you the true detail your still shots. This feature is called 1:1 pixel mapping, allowing you to maintain the original resolution of your cameras output and avoid any unexpected focus issues in post-production.
Better Advanced Functions
Providing advanced camera auxiliary functions. Peaking, False Color, Histogram & Exposure, etc., are major concerns with DSLR users. Lilliput's field monitors are great at displaying accurate images, 969A/O/P makes photoing & recording even easier with its functionality. Values can be adjust under Level Meter, Peaking & Exposure functions, etc.
HDMI video output - no annoying splitters
969A/O/P includes an HDMI-output feature which allows customers to duplicate the video content onto a second monitor - no annoying HDMI splitters required. The second monitor can be any size and picture quality will not be affected.
Complete range of AV inputs
969A/O/P includes all the AV connections that a broadcast professional needs. Composite and component through BNC connectors and two HDMI inputs cover all the bases for common broadcast applications.
DISPLAY
|
Panel | 9.7" IPS |
---|---|---|
Physical Resolution | 1024×768, support up to 1920×1080 | |
Aspect Ratio | 4:3 | |
Brightness | 400cd/㎡ | |
Contrast | 600:1 | |
Viewing Angle | 178°/178°(H/V) | |
INPUT
|
HDMI | 2 |
YPbPr | 3(BNC) | |
VIDEO | 1 | |
TALLY | 1 | |
AUDIO | 2(L/R) | |
OUTPUT
|
HDMI | 1(optional) |
YPbPr | 3(BNC) | |
VIDEO | 1 | |
USB | 1(5V for charging) | |
AUDIO
|
Speaker | 1(build-in) |
Ear Phone Slot | 1 | |
POWER
|
Current | 1500mA |
Input Voltage | DC 7-24V (XLR) | |
Battery Plate | V-mount / Anton Bauer mount / F970 / QM91D / DU21 / LP-E6 |
|
Power Consumption | ≤18W | |
ENVIRONMENT
|
Operating Temperature | -20℃~60℃ |
Storage Temperature | -30℃~70℃ | |
DIMENSION
|
Dimension(LWD) | 246×224×31/167.5mm (with cover) |
Weight | 1068g / 1388g (with cover) |
