Lilliput 969A/S Monitor

Verfügbarkeit: 7-10 days delivery
SKU
LIL-969A/S

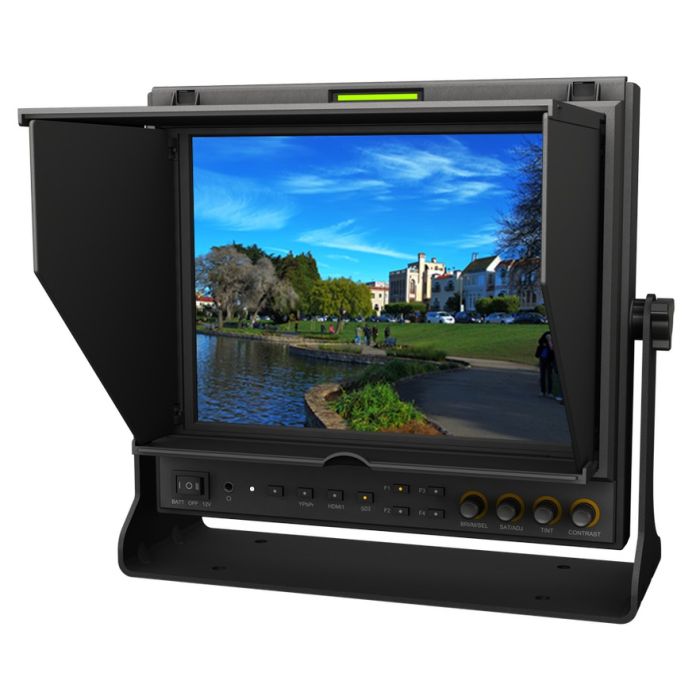

The Lilliput 969A/S is a 9.7 inch 4:3 IPS LED HD broadcast monitor with 3G-SDI, HDMI input, YPbPr, AV input, component video and build-in sun hood. Optimised for studio and video editing work.

Normalpreis 3.525,00 HRK Sonderangebot 3.348,75 HRK 2.679,00 HRK

The Lilliput 969A/S is a 9.7 inch 4:3 IPS LED HD broadcast monitor with 3G-SDI, HDMI input, YPbPr, AV input, component video and build-in sun hood. Optimised for studio and video editing work.

9.7" monitor with 4:3 aspect ratio

The 9.7" LCD used in 969A/S is the ideal size for a small broadcast monitor. Large enough to pick out the finest details in a shot, but small enough to fit on any desk.

Natively high resolution broadcast monitor

High resolution is important to broadcast monitors because the higher resolution, the more detail you see. The natively high resolution (1024×768 pixels) provides clarity at an aspect ratio that works well with 16:9 content and 4:3 content.

600:1 contrast ratio

Lilliput understands that accurate colour representation is a vital attribute of a broadcast monitor. That's why 969/S features a 600:1 contrast ratio LCD with IPS technology.

178° viewing angles

Broadcast monitors are often viewed by many different people at all angles, so the 178 degree viewing angle ensures the content does not get distorted.

Foldable sunhood becomes screen protector

Foldable sunhoods are now included across all Lilliput's pro-AV products. 969A/S' smart sunhood folds away to be a screen protector for the LCD, ideal for broadcast environments where mini monitors are exposed to lots of moving around!

1:1 pixel mapping - find the finest details

969A/S shows you the true detail your still shots. This feature is called 1:1 pixel mapping, allowing you to maintain the original resolution of your cameras output and avoid any unexpected focus issues in post-production.

Better Advanced Functions

Providing advanced camera auxiliary functions. Peaking, False Color, Histogram & Exposure,etc., are major concerns with DSLR users. Lilliput's field monitors are great at displaying accurate images, 969A/S makes photoing & recording even easier with its functionality.

HDMI video output - no annoying splitters

969A/S includes an HDMI-output feature which allows customers to duplicate the video content onto a second monitor - no annoying HDMI splitters required. The second monitor can be any size and picture quality will not be affected.

3G-SDI inputs

969A/S includes all the 3G-SDI connections that a broadcast professional needs. Composite and component through BNC connectors and HDMI inputs covers all the bases for common broadcast applications. It even includes one HDMI output, so no extra expensive HDMI splitters are required

DISPLAY
  Panel   9.7" LED backlit
  Physical Resolution   1024×768, support up to 1920×1080
  Aspect Ratio   4:3
  Brightness   400cd/㎡
  Contrast   600:1
  Viewing Angle   178°/178°(H/V)
INPUT
  3G-SDI   1
  HDMI   1
  YPbPr   3(BNC)
  TALLY   1
  AUDIO   2(L/R)
OUTPUT
  3G-SDI   1
  HDMI   1
  YPbPr   3(BNC)
  USB   1(5V for charging)
AUDIO
  Speaker   1(build-in)
  Ear Phone Slot   1
POWER
  Current   1500mA
  Input Voltage   DC 7-24V(XLR)
  Battery Plate   V-mount / Anton Bauer mount /
  F970 / QM91D / DU21 / LP-E6
  Power Consumption   ≤18W
ENVIRONMENT
  Operating Temperature   -20℃~60℃
  Storage Temperature   -30℃~70℃
DIMENSION
  Dimension(LWD)   246×224×31/167.5mm (with cover)
  Weight   1068g/1388g (with cover)
