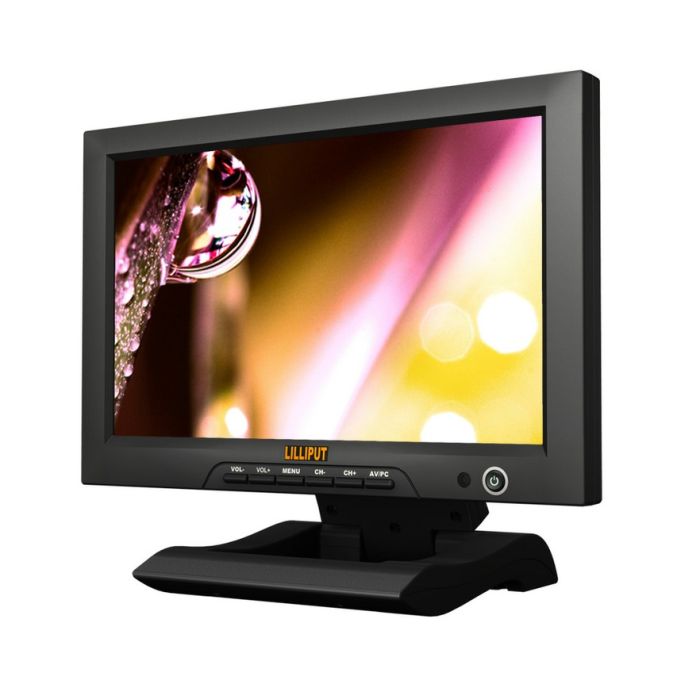

Lilliput FA1013 Monitor
by LilliputLilliput FA1013 10.1" Field Monitor.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Monitor Composite, Component, or HDMI sources with the Lilliput FA1013 10.1" Field Monitor. Featuring a sharp and bright 1024 x 600 LED LCD display, the FA1013 can display digital or analog SD and HD video signals, leveraging the 16:9 aspect ratio to avoid letterboxing HD video. The Component and Composite analog inputs have loop outputs for daisy-chaining other video equipment. Because of it's compact and portable design, the FA1013 can be implemented into studio, CCTV, A/V, and field production workflows.
As a field monitor, the FA1013 can be mounted in various ways for different purposes. The integrated stand allows for straightforward desk mounting, while 75mm VESA securing points open up more flexible installation options. Additionally, a 1/4"-20 mouting point is available for securing the FA1013 to your camera rig with a separately available arm. Along with the monitor, you'll receive an HDMI to mini-HDMI cable for connecting most common DSLR cameras and a 12V power supply.
|
DISPLAY
|
Panel | 10.1" LED backlit |
|---|---|---|
| Physical Resolution | 1024×600, support up to 1920×1080 | |
| Aspect Ratio | 16:9 | |
| Brightness | 250cd/㎡ | |
| Contrast | 500:1 | |
| Viewing Angle | 140°/110°(H/V) | |
|
INPUT
|
HDMI | 1 |
| YPbPr | 3(BNC) | |
| VIDEO | 2 | |
| AUDIO | 1 | |
|
AUDIO
|
Speaker | 1(build-in) |
| Audio Output | ≤1W | |
|
POWER
|
Current | 500mA |
| Input Voltage | DC 6-24V(XLR) | |
| Power Consumption | ≤6W | |
|
ENVIRONMENT
|
Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ | |
|
DIMENSION
|
Dimension | 259 x 170 x 36.5mm(LWD) |
| Weight | 1144g |
