Lilliput TM-1018/O/P Monitor

by Lilliput
Verfügbarkeit: 7-10 days delivery
SKU
LIL-TM-1018/O/P

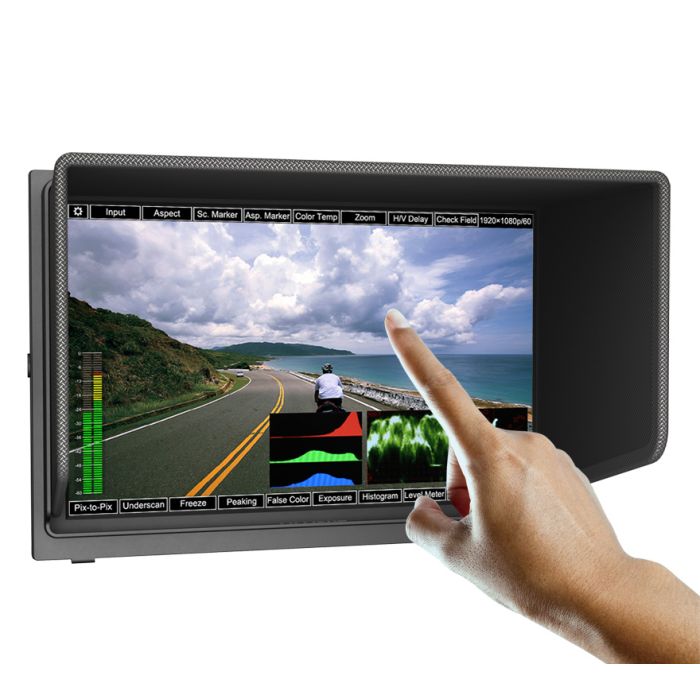

TM-1018/O/P 10.1” Touchscreen LED Backlit Camera Monitor from Lilliput is a field monitor with HDMI input & output, designed for use with DSLR and higher standard cameras.

454,75 € 363,80 €

TM-1018/P     (with new advanced Functions, with HDMI input)
TM-1018/O/P (with new advanced Functions, with HDMI input & output)

The TM-1018/O/P 10.1” Touchscreen LED Backlit Camera Monitor from Lilliput is a field monitor with HDMI input & output, designed for use with DSLR and higher standard cameras. With a high-quality panel, the monitor features a capacitive touchscreen function to access and operate the internal settings functions. The monitor also features a 3G-SDI connection for professional broadcasting.

The monitor’s integrated waveform, vectorscope, video analyzer, luminance/color/RGB histograms, luminance/RGB parade/YCbCr parade waveforms, and other waveform modes and measurement modes such as peaking, exposure, and audio level meter. These assist users to accurately monitor when shooting, making, and playing movies/videos.

Level meter, histogram, waveform, and vectorscope can be displayed horizontally at the same time, while professional waveform measurement and color control helps the user realize and record natural color. Composite and component through BNC connectors and HDMI inputs cover all the bases for common broadcast applications. Also included is an HDMI output, avoiding the need of HDMI splitters.

Histogram

  • RGB histogram shows the red, green, and blue channels in overlay histogram
  • Color histogram shows histograms for each of the red, green, and blue channels
  • Luminance histogram shows the distribution of brightness in an image as a graph of luminance

Waveform

  • Waveform monitoring consists of Luminance, YCbCr parade & RGB parade Waveforms, which are used for measuring the brightness, luminance or chroma values from a video input signal
  • It not only can warn the user for out-of-range conditions such as overexposure errors, but also assist with color correction & camera white and black balance

Vector

  • Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum
  • It can also be displayed in various sizes & positions, that allow users to monitor color gamut range in real time

Audio Level Meter

  • The Audio Level meters provide numerical indicators and headroom levels
  • They can generate accurate audio level displays to prevent errors during monitoring

Widescreen Panel

  • The 16:9 widescreen aspect ratio makes the TM-1018/S ideal for a variety of audio/video applications
  • It can be used in TV broadcast rooms, audio-visual installations, and as a preview monitor with professional camera crews for both on-camera and Video Village installations

IPS LED Screen

  • The TM-1018/S Monitor uses IPS screen panels that allow for high pixel pitch, which gives wide viewing angles and base resolutions of 1280 x 800, allowing upscaling to a full 1080p HD signal

800:1 Contrast Ratio for Crisp Sharp Colors

  • The TM-1018/s Monitor boasts a rich clear and sharp picture, thanks to a high contrast ratio and LED backlight
  • The onboard matt LCD display means that all colors are well represented, and that there are no reflections evident on the screen
  • The LED technology brings great benefits in terms of low power consumption, "instant-on" backlighting, and consistent brightness over years and years of use

Made for DSLR Cameras

  • The TM-1018/S Monitor has a large range of compatibility, with all major DSLR camera types supported using HDMI input
  • It allows for convenient shot-taking, letting you to see the shot clearly before taking

Advanced Camera Functions on the Fly

  • Packed with advanced features such as Peaking, Histograms, False Color Filtering, Exposure, and many more

HDMI Pass-Through

  • The TM-1018/S Monitor includes an HDMI output which allows the user to duplicate the video content onto a second monitor, without the need of HDMI splitters
  • The second monitor can be any size and picture quality will not be affected

Optional Battery Plates

  • Battery plate options allow for battery compatibility with 90% of major battery types, including a choice of 2 from Sony, Panasonic, and 2 types of Canon, with an extra charge Anton Bauer, and V-Type plates

Audio Monitoring on Device

  • TM-1018/S Monitor features an on-screen volume level for monitoring any excessive background noise or volume peaks whilst filming video and connecting via HDMI
DISPLAY
  Display Screen   10.1" LED IPS
  Touch Panel   Multi-touch capacitive
  Physical Resolution   1280×800, support up to 1920×1080
  Aspect Ratio   16:9
  Brightness   350cd/㎡
  Contrast   800:1
  Viewing Angle   170°/170°(H/V)
INPUT
  3G-SDI   1(optional)
  HDMI   1
  Composite   1
  TALLY   1
  VGA   1
OUTPUT
  3G-SDI   1(optional)
  HDMI   1(optional)
  VIDEO   1
AUDIO
  Speaker   1(build-in)
  Ear Phone Slot   1
POWER
  Current   1200mA
  Input Voltage   DC 7-24V
  Battery Plate   V-mount / Anton Bauer mount /
  F970 / QM91D / DU21 / LP-E6
  Power Consumption   ≤12W
ENVIRONMENT
  Operating Temperature   0℃~50℃
  Storage Temperature   -20℃~60℃
DIMENSION
  Dimension(LWD)   250×170×29.6mm
  Weight   630g
