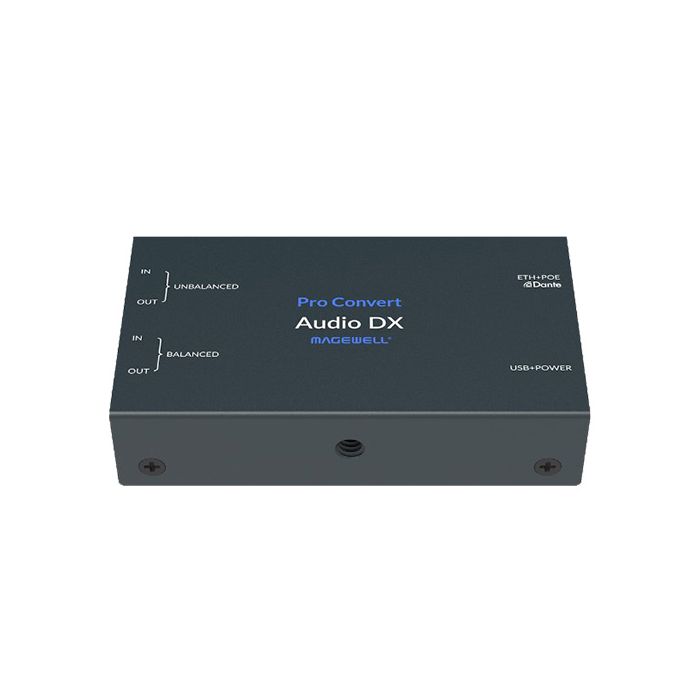

Magewell Pro Convert Audio DX
by Magewell
Verfügbarkeit:
7-10 days delivery
SKU
64260
A multi-format IP audio converter and capture device.
586,25 €
469,00 €
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Magewell Pro Convert Audio DX
Input/Receiving Features
- 1 x 2-channel 3.5mm unbalanced in
- 1 x 2-channel 4.4mm balanced in
- 1 x 4-channel 24-bit/48k UAC in
- Receiving 8-channel 24-bit Dante® streams in unicast or multicast
- Receiving 1 x 4-channel 16-bit SRT/NDI® audio stream simultaneously
Output/Sending Features
- 1 x 2-channel 3.5mm unbalanced out
- 1 x 2-channel 4.4mm balanced out
- 1 x 4-channel 24-bit/48k UAC out
- Encoding 8-channel 24-bit Dante® streams in unicast or multicast
- Encoding 1 x 4-channel 16-bit audio for RTSP/SRT/NDI® audio stream simultaneously
Audio routing and mixing Features
- Any analog or IP-based input channel can be routed and mixed into any analog, IP or UAC output via a web-based user interface
Others
- Support for Dante Controller, providing signal routing and configuration
- Plug-and-play as a UAC device
- Provide comprehensive information regarding the device and signals in real-time
- Remote control via Web GUI and Magewell Cloud
- Provide HTTP APIs
Receiving/Input Features | Support for sample rates of 96/48/88.2/44.1 KHz, and 16/24bit sample depth |
1 x 2-channel 3.5mm TRS unbalanced in (5k Ohm) | |
1 x 2-channel 4.4mm TRRRS balanced in (20k Ohm) | |
1 x 4-channel 24-bit/48k USB Audio Class in | |
Receiving 8-channel 24-bit Dante® flows in unicast or multicast | |
Receiving 2 x 4-channel 16-bit network audio streams of SRT and/or NDI® simultaneously | |
Support for PTP master/slave | |
Total harmonic distortion < 0.01% @ +4dBu | |
Frequency Response 20Hz ~ 20kHz (-/+0.5dB) | |
Signal to noise ratio > 100dB | |
Dynamic range > 100dB | |
Max signal level: unbalanced at 12dBu, balanced at 24dBu | |
Transmitting/Output Features | Support for sample rates of 96/48/88.2/44.1 KHz, and 16/24bit sample depth |
1 x 2-channel 3.5mm TRS unbalanced out (10 Ohm) | |
1 x 2-channel 4.4mm TRRRS balanced out (150 Ohm) | |
1 x 4-channel 24-bit/48k UAC out | |
Encoding 8-channel 24-bit Dante® flows in unicast or multicast | |
Encoding 2 x 4-channel 16-bit network audio streams of RTSP, SRT, NDI® protocols simultaneously | |
Support for PTP master/slave | |
Total harmonic distortion < 0.01% @ +4dBu | |
Frequency Response 20Hz ~ 20kHz (-/+0.5dB) | |
Dynamic range > 100dB | |
Signal to noise ratio > 100dB | |
Max signal level: unbalanced at 12dBu, balanced at 18dBu | |
Configuration Management | Support for Dante Domain Manager and Dante Controller, providing signal routing and configuration |
Registration with Magewell Cloud | |
Remote control via WebUI and Magewell Cloud | |
Provision of comprehensive information regarding the device and signals in real-time | |
Configuration of how an input is processed and codec, including volume setting, audio matrix, buffer, as well as the network connection | |
Support for updating firmware | |
Support for USB NET | |
Support for IE/Edge/Firefox/Chrome/Safari/Opera web browsers | |
Provision of HTTP APIs | |
Interfaces | 10/100/1000Mbps with PoE (IEEE 802.3af) |
USB2.0 Type B | |
5V/2.1A power supply | |
USB NET | |
3.5mm TRS unbalanced IN/OUT | |
4.4mm TRRRS balanced IN/OUT | |
LED Indicators | Power LED indications: |
on: power on | |
off: power off | |
PTP LED indications: | |
on: synced | |
off: not synced | |
blinking: syncing | |
Form Factor | 100.9mm (L) x 60.2mm (W)x 23.3mm (H) |
Accessories | 4.4mm to Dual XLR Male Cable |
4.4mm to Dual XLR Female Cable | |
USB 2.0 cable (Type A to Type B) | |
Universal power adapter | |
L bracket | |
On-board Control Buttons | 16 Position Rotary DIP Switch: set board-index from 0 to F |
Screw Mounting Hole | ¼–20 threaded hole |
Power Consumption | 5V max current: ~ 1 A |
Max power consumption: ~ 5 W | |
Working Environment | Operating temperature: 0 to 40 deg C |
Storage temperature: –20 to 70 deg C | |
Relative humidity: 5% to 90% non-condensing |
