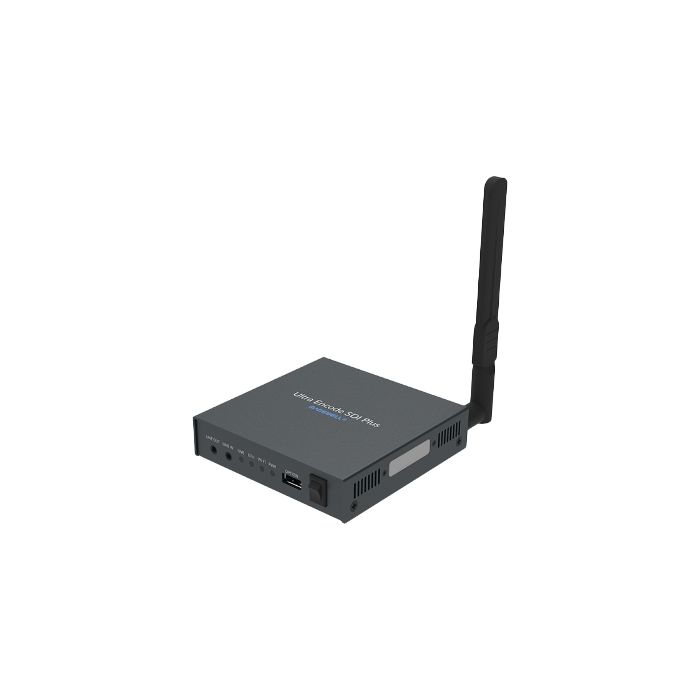

Magewell Ultra Encode SDI Plus

by Magewell
Verfügbarkeit: 7-10 days delivery
SKU
531600000

A Flexible & Universal Streaming and Recording Encoder.

686,25 € 549,00 €

Paket beinhaltet

  • Ultra Encode SDI Plus
  • Power Adapter (US/EU/UK/AU/JP)
  • USB 2.0 Type B cable
  • Wi-Fi Antenna
  • T-bracket
  • Live streaming and recording with support for H.264, H.265, NDI® HX2 and NDI® HX3
  • Flexible choice of streaming protocols including RTMP, RTMPS, SRT, HLS and more
  • Control via web interface or optional Control Hub centralized management software

Input Features

  • Support for up to 4096x2160 30fps input and loopthrough signals
  • Input & loopthrough 16-Channel SDI embedded audio
  • Input audio from 3.5 mm LINE IN

Encoding Features

  • Dual stream encoding profiles: main stream and sub stream up to 4096x2160p30
  • Max bitrate: 62Mbps (NDI® HX3), 32Mbps (Others)
  • Support for H.264/HEVC video encoding
  • Provide video aspect ratio conversion, image rotation and cropping for the main and sub streams
  • Encoding 8-channel AAC and audio channels mapping
  • Side-by-Side 3D video encoding

Streaming Features

  • Natively support Facebook, Twitch, YouTube and WOWZA
  • Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI® HX2/NDI® HX3/HLS/TS over UDP/TS over RTP/TVU ISSP
  • Allow simultaneous 6 sessions over multiple streaming protocols
  • Support for streaming schedule

Recording Features

  • Record to internal storage (128GB), external USB storage or network attached storage (NFS/CIFS)
  • Automatically upload recorded files to remote file storage platform
  • Video recordings in MP4, MOV or TS format
  • Normal recording and loop recording supported
  • Support for recording schedule

Others

  • PoE available
  • Tally lights for NDI® HX3
  • Remote control via Web GUI and Control Hub
  • Provide HTTP APIs
