Magewell XI104XUSB

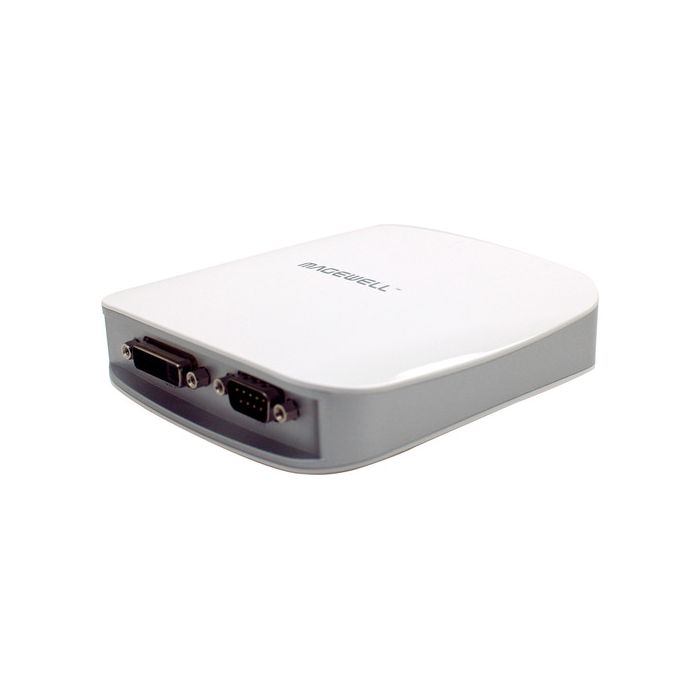

by MagewellWith the Magewell XI104XUSB USB 3.0 Video Capture Box you can capture both HD and SD video simultaneously. The front panel of the box has a DVI port and a DB9 port. The DVI port also supports HDMI and Component input using the included breakout cable.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Magewell XI104XUSB Single DVI + Quad CVBS USB 3.0 Video Capture Box
- DVI Breakout Cable
- DVI-I to VGA Adapter
- DB9 Breakout Cable
- USB 3.0 Cable
- Limited 1-Year Warranty
With the Magewell XI104XUSB USB 3.0 Video Capture Box you can capture both HD and SD video simultaneously. The front panel of the box has a DVI port and a DB9 port. The DVI port also supports HDMI and Component input using the included breakout cable.
Using the second breakout cable, the DB9 port breaks out into four composite video connections and two stereo RCA audio connections.
On the rear panel is a single USB 3.0 port. The box is bus-powered via the USB connection and needs no external power supply. If you don't have a USB 3.0 port available, the XI104XUSB is backward compatible with USB 2.0, though performance will be reduced.
USB 3.0 Interface
The XI104XUSB adopts a USB 3.0 interface for high-speed transmission. It can simultaneously capture one HD and four composite video signals with 2 channels of unbalanced stereo audio. It gets bus power directly from the PC.
Compared to the PCI-Express x1 GEN 1.1 interface, the Intel USB 3.0 chip enables faster data transmission at 1080p60. XI100XUSB-PRO is backward compatible with USB 2.0, though with reduced performance.
Automatic Signal Detection
Automatically determines the resolution of incoming VGA video signals, which occasionally use uncommon aspect ratios. Once the resolution is detected, the card will automatically adjust the signal's parameters, including timing and phase.
The VGA timing detection supports the following standards: GTF/CEA/DMT/IBM PC/Apple/VESA. For input signals which do not meet specific timing standards, the card will improve and adjust via its image analysis algorithm.
Video Processing
The XI104AE can perform functions like random image scale, image clip, color space switch, Gamma modification, and DMA transmission to satisfy your individual requirements.
It can also automatically remove black edges around the image, with manual settings for for effective image area; automatically detect the video source; deinterlace; and remove image aliasing.
Host Interface: USB 3.0, 300-350 MB/s throughput
Input Interface
- 1 x DVI-I interface (can switch to HDMI, VGA, YPbPr via breakout cable)
- 1 x DB9 interface (can switch to 4 x CVBS and dual stereo audio via breakout cable)
DVI Input: DVI 1.0 standard (480i, 576i, 480p, 576p, 720p, 1080i, 1080p)
HDMI Input: HDMI 1.3 standard (supports 36-bit Deep Color)
YPbPr Input Supports: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
VGA Input: 640×400 - 2048×1536 when the pixel rate is below 170 MHz.
CVBS Input: PAL/NTSC
Analog Audio Input: 2 x Stereo RCA inputs
Audio Sampling: Up to 24-bit, 96 kHz
Video Sampling
- Bit Depth: 10-bit
- RGB/Component: 170 MHz frequency
- HDMI/DVI: 225 MHz frequency
Color Space:
- YUYV, UYVY, I420, NV12, 24-bit RGB, 32-bit RGB
- Hardware adjustable
Deinterlacing: Vertical filter de-interlacing; motion-adaptive de-interlacing
Image Scale: Hardware 5-Tap scale
Image Flip: Horizontal; vertical
Image Crop: Yes
