Neumann AK 20

by Neumann
Verfügbarkeit: 7-10 days delivery

Neumann AK 20 - Bi-Directional Miniature Capsule for KM 100 and KM 100F Power

1.413,50 € 1.130,80 €

Paket beinhaltet

  • 1 x Neumann AK 20

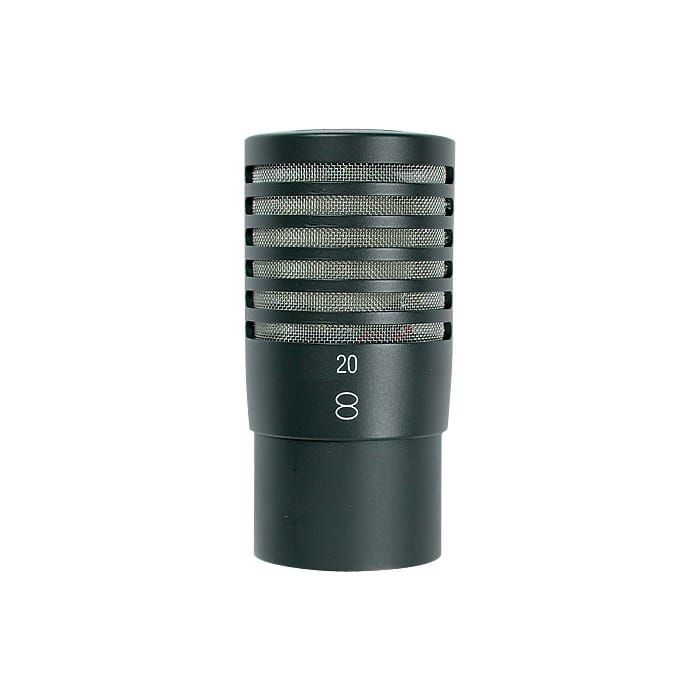

The Neumann AK 20 microphone capsule is part of the KM 100 miniature series microphone systems. The AK 20 features a pressure gradient, single diaphragm transducer with a figure 8 polar pattern. The diaphragm diameter is just 16mm and all sound field components reach the diaphragm directly.

The end result is even frequency response and output levels from 0 to 180 degrees in proximity. The figure 8 polar pattern is effective in stereo MS recording (with an AK 40 or other cardioid mic), ambiance capturing or lectures and conferences with 2 speakers at either ends of the microphone.

Figure Eight Pattern
The pressure gradient element provides a figure eight pattern providing even frequency response and output levels at 0 and 180 degrees.
Modular Design
The capsule is developed for use with the KM100 and KM100F modular power supplies.
Transducer Pressure Gradient Condenser
Polar Pattern Bi-Directional (Figure-8)
Frequency Response 20 Hz - 20 kHz
Dynamic Range (Typical) 122.5 dB
Signal-to-Noise Ratio 68 dB, Related at 1 Pa at 1 kHz (CCIR dB)
76.5 dB, Related at 1 Pa at 1 kHz (A-Weighted dB)
Maximum Input Sound Level 140 dB, Less than 0.5% THD (without Preattenuation)
150 dB, Less than 0.5% THD (with Preattenuation)
Power Requirements Phantom +48v (KM 100 Power Supplies)
Output Impedance 50 Ohms
Output Connectors XLR-3M Type (KM 100 Power Supplies)
Pad Yes, -10 dB Preattenuation
Low Frequency Roll-Off Use KM 100F
Dimensions 4.4 x 0.88" (110 x 22mm) (Length x Diameter)
Weight 3.6 oz. (102 g)
