Neumann AK 40

by Neumann
Verfügbarkeit: 7-10 days delivery
SKU
SEN-069007

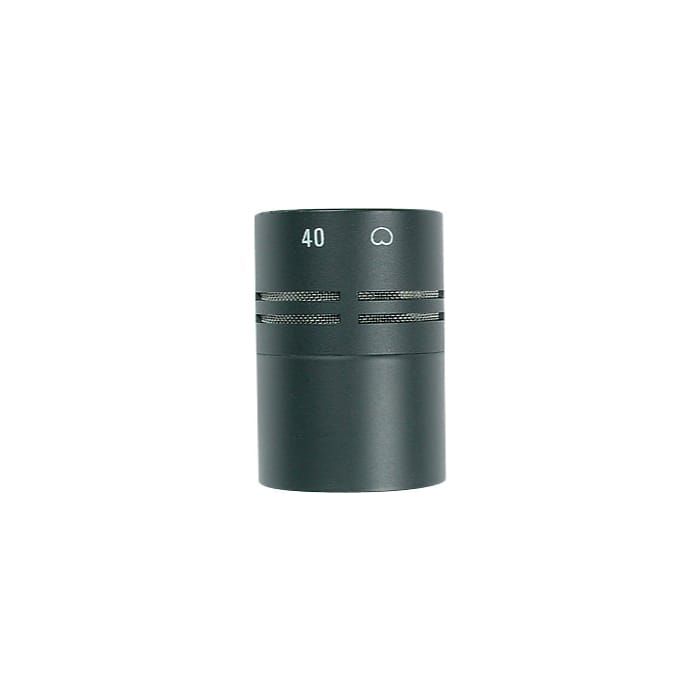

Neumann AK 40 - Cardioid Miniature Capsule for KM 100 and KM 100F Power Supplies

796,50 € 637,20 €

Paket beinhaltet

  • 1 x Neumann AK 40

The Neumann AK 40 microphone capsule is part of the KM 100 miniature series microphone systems. The AK 40 element features a pressure gradient, single diaphragm transducer with a cardioid polar pattern.

The cardioid polar pattern is highly effective in reducing off-axis ambiance and noise. This allows the element to be used in recording and sound reinforcement applications, in front of stage monitors or instrument miking.

Modular Design
The capsule is developed for use with the KM100 and KM100F modular power supplies.
Cardioid Polar Pattern
The AK 40 element features a cardioid pick up pattern which is effective in minimizing room ambiance, monitor noise and other off-axis signal.
Transducer Pressure Gradient Condenser
Polar Pattern Cardioid
Frequency Response 20 Hz - 20 kHz
Dynamic Range (Typical) 122 dB
Signal-to-Noise Ratio 69 dB, Related at 1 Pa at 1 kHz (CCIR dB)
78 dB, Related at 1 Pa at 1 kHz (A-Weighted dB)
Maximum Input Sound Level 138 dB, Less than 0.5% THD (without Preattenuation)
148 dB, Less than 0.5% THD (with Preattenuation)
Power Requirements Phantom +48v (KM 100 Power Supply)
Output Impedance 50 Ohms
Output Connectors XLR-3M Type (KM 100 Power Supply)
Pad Yes, -10 dB Preattenuation
Low Frequency Roll-Off Use KM 100F Power Supply
Dimensions (LxDiameter) 3.68 x 0.88" (92 x 22mm)
Weight 2.82 oz. (80 g)
