Neumann AK 50

by Neumann
Verfügbarkeit: 7-10 days delivery

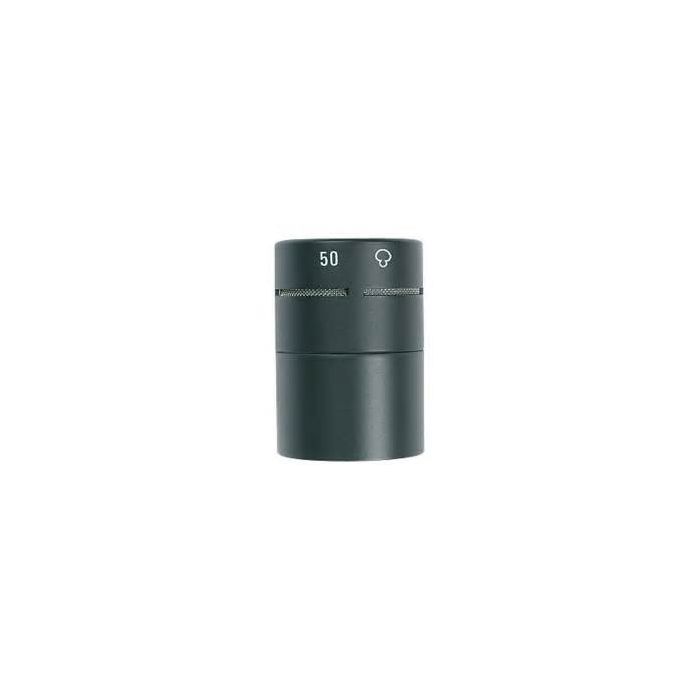

Neumann AK 50 - Hypercardioid Miniature Capsule for KM 100 and KM 100F Power Supplies

856,25 € 685,00 €

Paket beinhaltet

  • 1 x Neumann AK 50

The Neumann AK 50 microphone capsule is part of the KM 100 miniature series microphone systems. The AK 50 microphone element features a pressure gradient, single diaphragm transducer with a hyper-cardioid polar pattern.

The hyper-cardioid polar pattern is highly effective in reducing off-axis ambiance and noise. Attenuation of sound from the side or rear is about 10dB with the least sensitivity at an angle of 120 degrees. This allows the element to be used in recording and sound reinforcement applications, in front of stage.

Modular Design
The capsule is developed for use with the KM100 and KM100F modular power supplies.
Hyper-Cardioid Polar Pattern
The AK 50 element features a hyper-cardioid pick up pattern which is effective in minimizing room ambiance, monitor noise and other off-axis signal.
Transducer Pressure Gradient Condenser
Polar Pattern Hypercardioid
Frequency Response 20 Hz - 20 kHz
Dynamic Range (Typical) 121 dB
Signal-to-Noise Ratio 68 dB, Related at 1 Pa at 1 kHz (CCIR dB)
77 dB, Related at 1 Pa at 1 kHz (A-Weighted dB)
Maximum Input Sound Level 138 dB Less than 0.5% THD (without Preattenuation)
148 dB Less than 0.5% THD (with Preattenuation)
Power Requirements Phantom +48v (KSM 100 Power Supply)
Output Impedance 50 Ohms
Output Connectors XLR-3 Type (KSM 100 Power Supply)
Pad Yes, -10 dB Preattenuation
Low Frequency Roll-Off Use KSM 100F Power Supply
Dimensions (LxDiameter) 3.68 x 0.88" (92 x 22mm)
Weight 2.82 oz. (80 g)
