Neumann KM 183 mt

by Neumann
Verfügbarkeit: 7-10 days delivery
SKU
SEN-008438

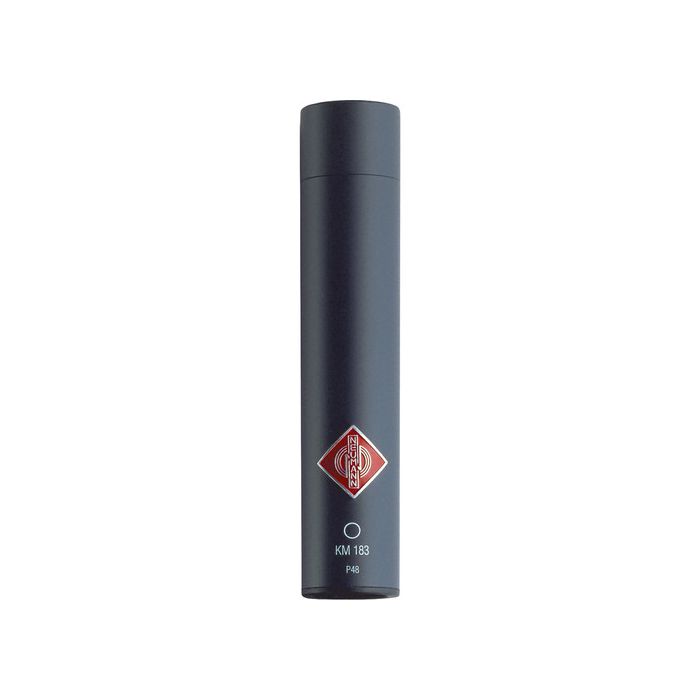

Neumann KM 183 MT Microphone (Matte Black)

898,75 € 719,00 €

Paket beinhaltet

  • Neumann KM 183 MT Microphone (Matte Black)
  • WNS100 Windscreen 45mm (Black)
  • SG21/17MT Swivel Mount with Clamp for 21mm Mics
  • Limited 2-Year Warranty

The matte black KM 183 MT Microphone from Neumann is an omnidirectional, pressure condenser microphone intended for live sound reinforcement and broadcast as well as recording applications. The KM 180 series microphones feature an output stage based on the KM 100. Transformerless circuitry and balanced output result in high output gain with a very low noise floor and no coloration to the output signal.

The KM 183 is powered via +48V phantom power. Its 20 Hz to 20 kHz frequency response provides flexibility for use in a wide range of recording situations. The KM 183's omnidirectional polar pattern provides a generous pick up area and is suitable for X,Y (with cardioid mic and baffle plate) stereo miking, ambiance miking or spot miking instruments such as piano, wind instruments organ and choir. The KM 183 handles sound pressure levels up to 140 dB allowing close miking of instruments high in transient (peak) level response.

Omnidirectional Polar Pattern
The omnidirectional polar pattern offers a generous pick up area, suitable for room ambiance capture as well as spot miking on piano, organ, wind instruments and choir.
KM 100 Based Output Stage
The KM 183 features the same output stage electronics as the KM 100. Transformerless circuitry and quiet balanced output design ensure a clean, high gain output signal without any coloration.
Compact Rugged Construction
The slim design and rugged construction allow easy microphone placement while remaining road worthy.
+48 Volt Phantom Power
The KM 183 is powered by +48V phantom power, and its 20 Hz to 20 kHz frequency response provides flexibility for use in a wide range of recording situations. The KM 183 handles sound pressure levels up to 140 dB, allowing close miking of instruments high in transient (peak) level response.
Operating Principle Pressure Gradient
Transducer Condenser
Polar Pattern Omnidirectional
Frequency Range 20 Hz to 20 kHz
Signal to Noise Ratio 69 dB CCIR
81 dB A-Weighted
Equivalent Noise Level 25 dB CCIR
13 dB A-Weighted
Maximum SPL 135 dB SPL
THD 0.5%
Impedance 50 Ohms
Load Impedance 1000 Ohms
Sensitivity 12 mV/Pa at 1 kHz into 1 kOhms
General
Output Connectors 1 x 3-Pin XLR
Operating Current Consumption 3.2 mA
Operating Voltage 48 V ± 4 V
Length 4.21" / 107 mm
Diameter 0.87" / 22 mm
Weight 2.82 oz / 80 g
