Neumann KM 184 D

by Neumann
Verfügbarkeit: 7-10 days delivery
SKU
SEN-008555

Neumann KM 184 D Small Diaphragm Cardioid Digital Microphone with S/PDIF Connection Kit (44.1 kHz, Black)

1.393,75 € 1.115,00 €

Paket beinhaltet

  • Neumann KM 184 D
  • S/PDIF Connection Kit (44.1 kHz)
  • WNS110 Foam Windscreen for KM Series Microphone
  • SG21/17MT Swivel Mount with Clamp for 21mm Mics
  • Wooden Box
  • Limited 2-Year Warranty

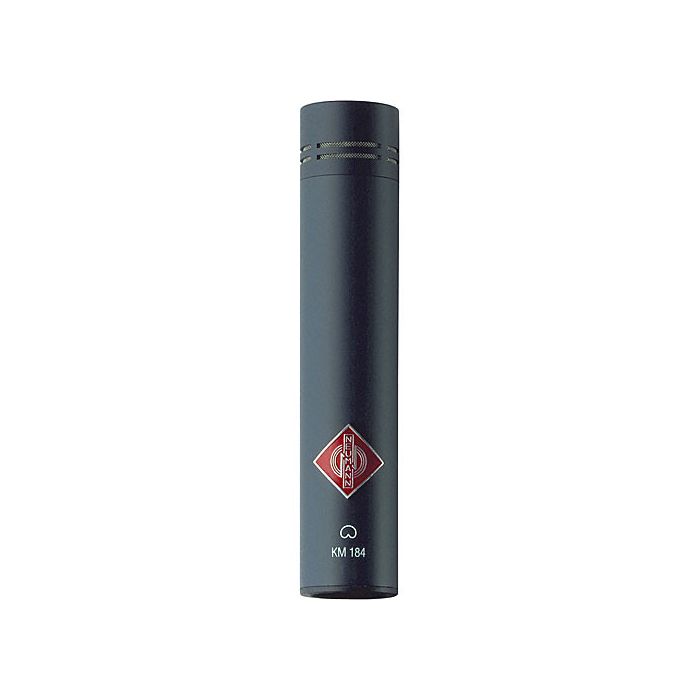

The KM 184 D S/PDIF from Neumann is a cardioid, pressure condenser microphone with an AES/EBU digital output and built-in A/D converter. Neumann continues to make strides in microphone technology with internal digital conversion and an AES/EBU 42 output standard. The included S/PDIF connection kit allows the microphone to be connected to the S/PDIF input of portable digital recorders, field mixers, etc.

The capsule, polar pattern and sonic characteristics are similar to the KM 184 analog model and is intended for live sound reinforcement and broadcast as well as recording applications. The cardioid polar pattern minimizes noise and off-axis audio signal. Vocals and instruments are captured without feedback, and ambiance. The KM 184D features a non-reflective finish.

S/PDIF Connection Kit
The included S/PDIF connection kit allows the microphone to be connected to the S/PDIF input of portable digital recorders, field mixers, etc. The connection kit supports 24-bit digital audio at 44.1 kHz.
AES/EBU Digital Output
The KM 184D features a 24-bit AES/EBU digital output stage and built-in A/D converter for direct connection to the AES/EBU inputs on field-recorders, digital mixers, or the Neumann DMI-2 direct remote control unit.
Cardioid Polar Pattern
The cardioid polar pattern minimizes off-axis noise and feedback.
Compact Rugged Construction
The slim design and rugged construction allow easy microphone placement while remaining road worthy.
Operating Principle Pressure Gradient
Polar Pattern Cardioid
Frequency Range 20 Hz to 20 kHz
Signal to Noise Ratio 70 dB CCIR
81 dB A-Weighted
Equivalent Noise Level 24 dB CCIR
13 dB A-Weighted
Maximum SPL 133 dB SPL
Pad -18 dB
Sensitivity -39 dBFS
Digital Performance
Bit Depth 24-Bit
Sample Rate 48 kHz
General
Output Connectors 1 x 3-Pin XLR
Operating Current Consumption 150 mA
Operating Voltage 48 V ± 4 V
Length 4.25" / 108 mm
Diameter 0.87" / 22 mm
Weight 3.00 oz / 85 g
