Neumann M 147 Tube
by NeumannFor General Studio Use
Large Diaphragm Condenser
Cardioid Polar Pattern
Vacuum Tube Based
Pressure Gradient DD Capsule
Transformerless Output Circuit
Allows Long Cable Runs
Minimizes Off-Axis Noise
Flat Freq. Response to Midrange
Enhanced Upper Frequency
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Neumann M147 Tube Microphone
- Swivel Stand Mount
- Universal Power Supply
- Cable
- Aluminum Case

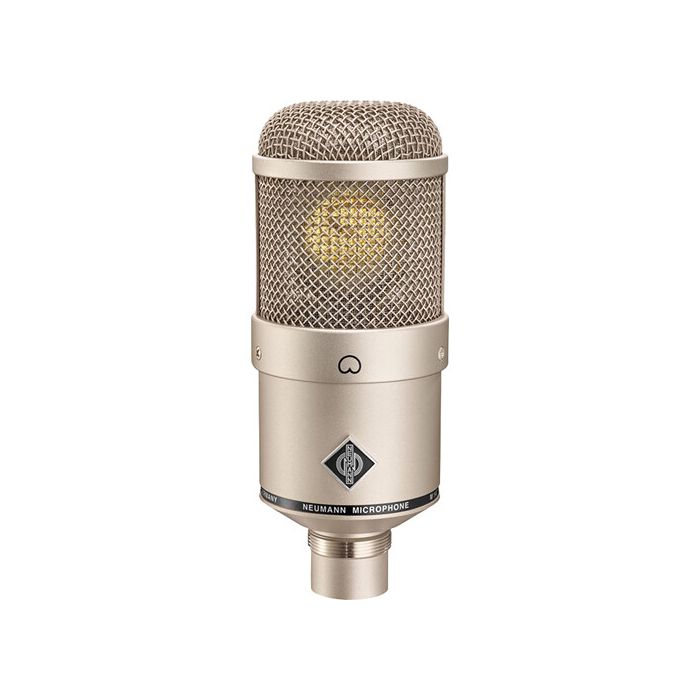

The M 147 Tube Microphone from Neumann is a vacuum tube large diaphragm condenser microphone with a cardioid polar pattern. The pressure gradient, dual diaphragm capsule is the K 47/49, inherited from the legendary U 47 and M 49 microphones. Following the tube is a transformerless output circuit providing low self-noise and high output gain without adding color to the signal.
The M 147 Tube delivers high output levels, allowing the microphone to feed cables up to 984.3' in length without signal degradation. The side address capsule features a cardioid polar pattern, which is effective in minimizing ambiance and noise coming from the off-axis sections of the microphone. The capsule features a flat frequency response to the upper mid-range, and a boost of up to 3 dB above 2 kHz. The M 147 Tube is a suitable microphone for recording vocals and general instruments such as strings, piano and wind instruments.
Tube Circuitry
The M 147 Tube features a combination of solid state and vacuum tube circuitry. The Vacuum tube design provides a type of warmth and definition not often found in solid-state circuitry.
K 47/49 Dual Diaphragm
Featuring the K 47/49 dual diaphragm, adapted from the legendary M 49 and U 47 Tube microphones. The M 147 maintains the level of sonic character at a modest price point.
Quality Output Circuitry
The Transformerless output design provides a low noise floor and output gain high enough to feed cables up to 984.3' in length without degradation in signal.
Cardioid Polar Pattern
The cardioid polar pattern effectively minimizes off-axis noise caused by room ambiance, instruments, monitors etc. The pattern offers a more generous pick up area with lower range frequencies.
N 149 A Power Supply
The Neumann N 149 A power supply effectively powers the microphone and is compatible with both the M 149 and 147 microphones.
Operating Principle | Pressure Gradient |
Capsule | Condenser |
Polar Pattern | Cardioid |
Circuitry | Tube |
Frequency Range | 20 Hz to 20 kHz |
Maximum SPL | 114 dB SPL 134 dB SPL |
Impedance | 50 Ohms |
Load Impedance | 1000 Ohms |
Sensitivity | 20 mV/Pa at 1 kHz into 1 Kilohms |
Signal-to-Noise Ratio | 70 dB CCIR 82 dB A-Weighted |
Equivalent Noise Level | 24 dB CCIR 12 dB A-Weighted |
THD | 0.5% |
Output Connectors (Analog) | 1 x XLR 3-Pin |
Dimensions | ø: 2.24 x L: 5.59" / ø: 57 x L: 142 mm |
Weight | 16.23 oz / 460 g |
Package Weight | 11.65 lb |
Box Dimensions (LxWxH) | 16 x 14.1 x 6" |
