Neumann TLM 103 Dby Neumann
Neumann TLM 103 D Large Diaphragm Condenser Microphone (Digital, Nickel)
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
- Neumann TLM 103 D Large Diaphragm Condenser Microphone (Digital, Nickel)
- SG 2 Stand Mount (Black)
- Wooden Box
- Limited 2-Year Warranty

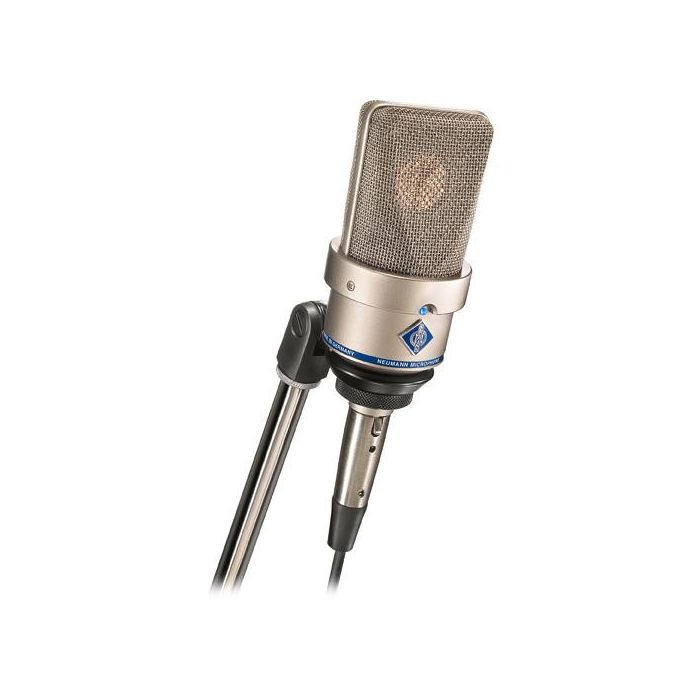

The nickel TLM 103 D Large Diaphragm Condenser Microphone from Neumann is a digital, cardioid, directional microphone that features low self-noise and high sound pressure level transmission. The capsule, derived from that used in the Neumann U 87, has a cardioid pattern, is acoustically well-balanced and provides great attenuation of signals from the rear.
The TLM 103 D is equipped with a large diaphragm capsule with cardioid pattern. By focusing on this pattern, the attenuation of unwanted rear sound has been optimized. Off-axis sounds are rendered naturally while isolation is increased. This also leads to a high feedback suppression when the microphone is used in live situations or where loudspeaker playback is a factor.
The TLM 103 D is addressed from the front. The K 103 large diaphragm capsule is based on the K 87, and has a flat frequency response up to about 5 kHz, and above that, a wide flat 4 dB presence boost.
The large wire mesh head-grille protects the capsule from plosive sounds and effectively prevents pop noises. These characteristics are achieved without resorting to corrective resonance effects. The microphone maintains a great impulse response and reproduces details of music and speech without coloration.
With just 7 dB-A and 17.5 dB CCIR, the self-noise level of the TLM 103 D is so reduced that even the smallest signals are reproduced almost noise-free. It is capable of handling sound pressure levels up to 134 dB without distortion.
With TLM technology the usual output transformer is replaced by an electronic circuit. As with traditional transformers, it ensures good common mode rejection, and prevents RF interference that may influence the balanced audio signal.
The entire internal construction is elastically mounted to attenuate any structure borne noise that could interfere with the TLM 103 D's operation. The capsule is set on an elastic mount and the frequency range reaches below 20 Hz, allowing even very low bass signals are reproduced without coloration. Due to this low frequency extension, the TLM 103 D is more sensitive to structure borne interference and wind noise.
This digital microphone is for use with Neumann AES/EBU, AES 42, or S/PDIF. The signal is converted directly at the capsule.
- Large diaphragm capsule cardioid microphone
- Pressure gradient transducer
- Transformerless circuitry
- Low noise
- Straightforward handling for home recording and professional studios
- High quality A/D conversion provides transparent direct-to-disc sound quality
|Operating Principle||Pressure Gradient|
|Frequency Range||20 Hz to 20 kHz|
|Signal to Noise Ratio||76.5 dB CCIR
87 dB A-Weighted
|Equivalent Noise Level||17.5 dB CCIR
7 dB A-Weighted
|Maximum SPL||134 dB SPL|
|Dynamic Range||127 dB A-Weighted|
|Output Connectors||1 x 3-Pin XLR|
|Operating Current Consumption||150 µA|
|Operating Voltage||6 to 10.5 V|
|Length||5.20" / 132 mm|
|Diameter||2.36" / 60 mm|
|Weight||16.23 oz / 460 g|
