Neutrik NBNB75IUU11 75ohm BNC Connector

by Sommer Cable

Raspoloživost: Isporuka 14-20 dana

SKU

NEU-NBNB75IUU11

NEUTRIK® BNC HD-SDI crimp-female connector, thread 1/2", silver-grey

14,75 €/111,13kn 11,80 €/88,91kn

Tečaj konverzije: 1 EUR = 7,53450 HRK

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Opis

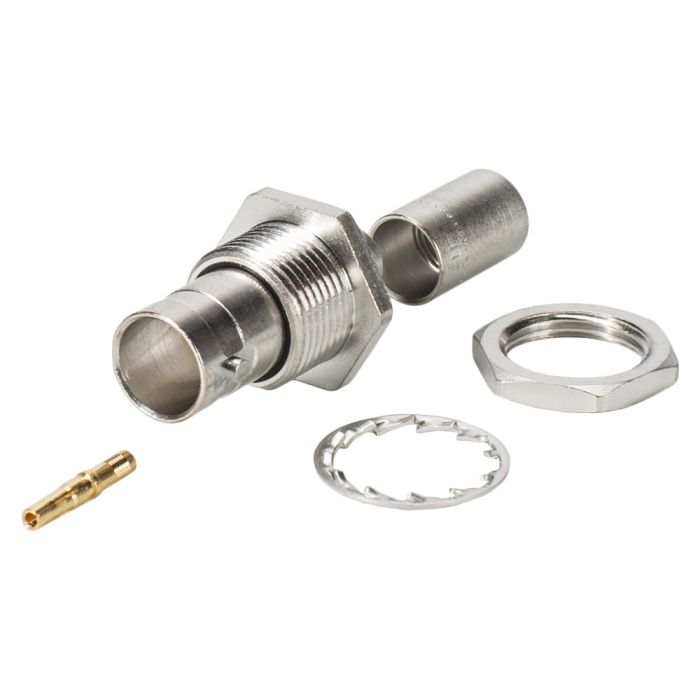

NEUTRIK® BNC HD-SDI crimp-female connector, thread 1/2", silver-grey

Technical Data:
- Article number: NBNB75IUU11
- EAN: 7613187002410
- Brand: NEUTRIK®
- Application: video
- Colour: grey
- Colour detailed: silver-grey
- Model: BNC
- Style variant: thread 1/2"
- Gender: female
- Material: metal
- Coding: none
- Codable: yes
- Pole number: 2-pole
- Connector / Socket: female connector
- Type of contact: crimp
- Contact coating: hard gold plated
- Mounting: mounting
- Cable diameter min.: 4 mm
- Cable diameter min.: 0.1575 "
- Max. cable diameter: 7,7 mm
- Max. cable diameter: 0.3031 "
- Transmission standard: HD-SDI
- Impedance: 75 Ω

Specifikacije

Article number	NBNB75IUU11
EAN	7,61E+12
Brand	NEUTRIK®
Application	video
Colour	grey
Colour detailed	silver-grey
Model	BNC
Style variant	thread 1/2"
Gender	female
Material	metal
Coding	none
Codable	yes
Pole number	2-pole
Connector / Socket	female connector
Type of contact	crimp
Contact coating	hard gold plated
Mounting	mounting
Cable diameter min. [mm]	4
Max. cable diameter [mm]	7,7
Transmission standard	HD-SDI
Impedance [Ω]	75
