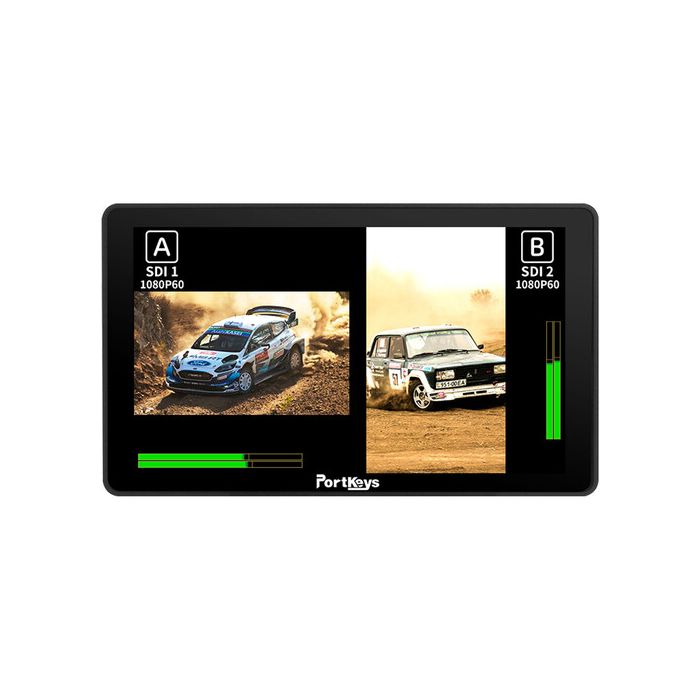

PortKeys BM7 II-DS Monitor
by PortKeys7" 1920 x 1080 Touchscreen Monitor
Supports up to 1080p Video / 3D LUTs
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- PORTKEYS BM7 II DS 7" High-Bright Monitor with Wireless Camera Control
- USB Drive
- DC Barrel to D-Tap Power Cable
- Carrying Case
Bright enough for outdoor use, the BM7 II DS 7" High Bright Monitor with Wireless Camera Control from PORTKEYS is a 1920 x 1080 display with support for up to 1080p resolution video. The BM7 II DS features a maximum brightness of 2200 cd/m², a contrast ratio of 1000:1, and a durable aluminum frame. The monitor's main feature is the ability to remotely control your camera via Wi-Fi, Bluetooth, or using an optional control cable, depending on your camera's model. It can also be used to control lens motors such as Tilta's Nucleus M/N.
Support for 3D LUTs enables you to view your log footage in your chosen color space or palette. This monitor incorporates one 3G-SDI input, one 3G-SDI output, one HDMI input, one HDMI output, a 3.5mm headphone audio output, and a USB-A port used to load 3D LUTs or upgrade firmware. A 170° viewing angle enables off-axis viewing without color and contrast shifts.
Integrated image display tools include a waveform, a histogram, focus peaking, false color, 3G-SDI-to-HDMI cross conversion, image flip, and selectable aspect ratios. You can power this super bright monitor via its dual Sony L-series type battery plate or from a D-Tap power source using the included DC cable. Four 1/4"-20 threads enable you to support the monitor from whichever side works best for each setup.
Key Features
High 2200 cd/m² brightness, 1000:1 contrast ratio, and 170°/170° viewing angle
7" 1920 x 1080 on-camera monitor supports up to 1080p video input/output
Remote control of the camera or focus motor via optional cable, Wi-Fi, or Bluetooth
3D LUT support via USB input
Dual L-series battery plates plus D-Tap power cable
Durable aluminum frame
Display tools include a waveform, focus peaking, false color, image flip, histogram, and 3G-SDI to HDMI cross conversion
Compatible Camera Control Models
Wi-Fi
RED V-RAPTOR, KOMODO 6K
Sony a9 II, a1, a7C, FX3, FX30, RX10, a7S III, a7 IV, RX0, a7 III
Bluetooth
Blackmagic Pocket Cinema Camera 4K
Blackmagic Pocket Cinema Camera 6K
Blackmagic Pocket Cinema Camera 6K Pro
Wired
Various camera models from Sony, Canon, RED, Panasonic, Z CAM
Tilta Nucleus-N and Nucleus-M lens motor
Display | |
Panel Type | LCD |
Display Size | 7.0" / 17.8 cm |
Resolution | 1920 x 1080 |
Aspect Ratio | 16:09 |
Viewing Angle | Horizontal: 170° (85/85) |
Vertical: 170° (85/85) | |
Touchscreen | Yes |
Maximum Brightness | 2200 nits / cd/m2 |
Contrast Ratio | |
Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) |
HDR Compatibility | Hybrid Log Gamma |
Pixels Per Inch (ppi) | 314 ppi |
Color Gamut | 85% DCI-P3 |
Image Controls | Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, Vectorscope, Waveform, Zebra |
Inputs / Outputs | |
Video I/O | 2 x BNC (3G-SDI) Input |
1 x HDMI Input | |
1 x BNC (3G-SDI) Output | |
1 x HDMI Output | |
Embedded Audio | HDMI: 2-Channel |
SDI: 8-Channel | |
Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker | None |
Power I/O | 1 x LEMO 2-Pin Input |
1 x Barrel 2.1 mm Input | |
Other I/O | 1 x Mini-USB (Camera Control) |
1 x Unspecified 5-Pin (Motor Control) | |
1 x USB-A (Firmware), (LUT Upload) | |
Media/Memory Card Slot | None |
Wi-Fi | Yes |
Bluetooth | Yes |
Mobile App Compatible | No |
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility | |
Format Support | |
Video Format | SDI (4:4:4/4:2:2 YUV) |
1080p: 30/29.97/25/24/23.98 | |
1080PsF: 30/29.97/25/24/23.98 | |
1080i: 60/59.94/50 | |
720p: 60/59.94/50 | |
SDI | |
1080p: 60/59.94/50 | |
HDMI | |
1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
1080PsF: 30/29.97/25/24/23.98 | |
1080i: 60/59.94/50 | |
720p: 60/59.94/50 | |
576p: 50 | |
576i: 50 | |
480p: 60/59.94/50 | |
480i: 60/59.94/50 | |
Video Signal Conversion | HDMI to SDI |
Power | |
DC Input Power | 7 to 24 VDC |
Battery Type | 2 x L-Series |
Power Consumption | 15 W (Maximum) |
Mounting | |
Mounting | 2 x 1/4"-20 Female |
Environmental | |
Operating Temperature | 32 to 104°F / 0 to 40°C |
General | |
Material of Construction | Aluminum |
Dimensions | 7.1 x 4.2 x 1.2" / 179.3 x 106.8 x 31 mm |
Weight | 1.0 lb / 460 g |
