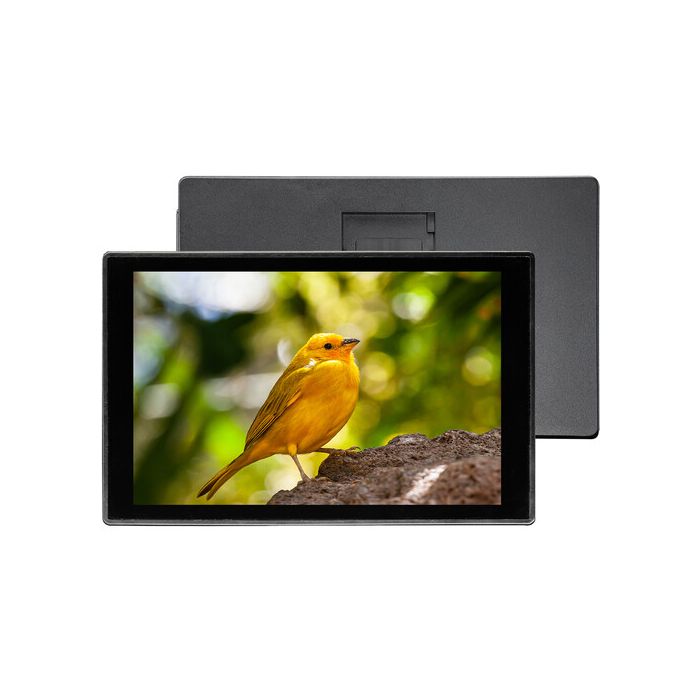

PortKeys HD7T Monitor

by PortKeys

Verfügbarkeit: 7-10 days delivery

SKU

HD7T

Add pro monitoring tools to your camera rig with the HD7T 7" Touchscreen Monitor with Professional Tools from PORTKEYS. This bright, 7" on-camera touchscreen display offers 1280 x 800 resolution, 1000 cd/m² brightness, and the ability to input up to DCI 4K24 or UHD 4K30 video via HDMI and NTSC/PAL formats via a coax A/V input.

126,25 € 101,00 €

Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.

Neu

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Paket beinhaltet

PORTKEYS HD7T 7" Touchscreen Monitor with Professional Tools
Sun Hood
Ball Head Shoe Adapter Mount
HDMI Type A Cable
HDMI Type A to Type D Cable
A/V Cable
Rubber Cover Set

Details

Bright 7" Touchscreen Monitor

This 7" IPS LCD on-camera monitor features 1000 cd/m² and a 1000:1 contrast ratio for daylight visibility. It has a wide viewing angle and reproduces accurate colors with 8-bit depth in the Rec. 709 color gamut from any angle. The UI has a simplified, clear layout, and it's controllable using simple touch gestures. It is easy and natural to use for both beginners and professionals.

HDMI and A/V Inputs

The monitor features HDMI input up to DCI/UHD 4K resolution, and it also features a coax A/V input for lower resolution NTSC/PAL input formats for viewing video for older applications.

3D LUTs

The USB-A input provides the ability to upload custom 3D LUTs from a flash drive, and you can store up to 20 LUT files on the monitor itself. When utilizing video from the HDMI input, this allows you to color grade on the fly with effects and adjustments to speed up your post-production workflow.

Sun Hood

The included sun hood easily snaps onto the front of the monitor using the included bracket, and it keeps all controls accessible.

By reducing glare, the image can be viewed more accurately in bright lighting situations.

Power Options

You can power the monitor using the built-in L-series battery plate, or you can provide power using the power adapter with the DC barrel input.

Physical Design

The monitor is designed with a durable yet lightweight plastic chassis that features a 1/4"-20 thread on the bottom and both sides for mounting onto stands, riggings, or the included ball head shoe mount. There are also customizable tactile shortcut keys on the top for when you want to keep your hands free of the screen to prevent accidental touch or access the controls from behind.

Image Tools

3D LUT support with custom LUTs via USB
Peaking
False color
Luma
RGB/luma waveform
Real-time eye focus
Anamorphic de-squeeze
Frame guides, crosshairs, grids
Color temperature
Brightness
Sharpness
Rectangular cropping
Check field
Zebra
Image flip
Luma histogram
Audio meters
HDR/HLG support

Mehr Informationen

Display
Panel Type	IPS-Type LCD
Display Size	7.0" / 17.8 cm
Native Resolution	1280 x 800
Aspect Ratio	16:10
Viewing Angle	Horizontal: 160° (80/80)
	Vertical: 160° (80/80)
Touchscreen	Yes
Maximum Brightness	1000 nits / cd/m2
Contrast Ratio	1000:01:00
Color Support	16.7 Million Colors (8-Bit)
HDR Support	Yes
Color Gamut	100% DCI-P3
LUT Support	Yes
Image Controls	Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, Image Rotate, Waveform, Zebra
Inputs/Outputs
Video I/O	1x HDMI 1.4 Input
	1x RCA (Composite) Input
Embedded Audio	HDMI
Audio I/O	1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	Mono
Power I/O	1x Barrel (24 VDC) Input
Other I/O	1x USB-A (Firmware/LUT Upload)
Media/Memory Card Slot	No
Wireless
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No
Format Support
Video Format	HDMI
	DCI 4K: 23.98
	UHD 4K: 30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	576i: 50
	480p: 60/59.94
	480i: 60/59.94
	Composite
	NTSC
	PAL
Power
Input Power	7 to 24 VDC
Battery	1x L-Series Mount on Fixed Plate
Power Consumption	10.5 W
Mounting
Tripod/Accessory Mounting	Bottom
	1x Anti-Twist 1/4"-20 Female
	Right
	2x Anti-Twist 1/4"-20 Female
General
Environmental Resistance	No
Dimensions	6.9 x 4.1 x 1.1" / 176.1 x 103.8 x 29.2 mm
Weight	8.6 oz / 245.00 g
