PortKeys LH7H Monitor
by PortKeys7" HDMI 1920 x 1080 Touchscreen
Up to DCI 4K24/UHD 4K30 Video Input
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- PORTKEYS LH7H 7" High-Bright Touchscreen Monitor
- Micro-USB Flash Drive
- 2 x Screen Protector
- HDMI Type-A Cable
- MH-2 Monitor Shoe Mount
- Cleaning Cloth
- Storage Box

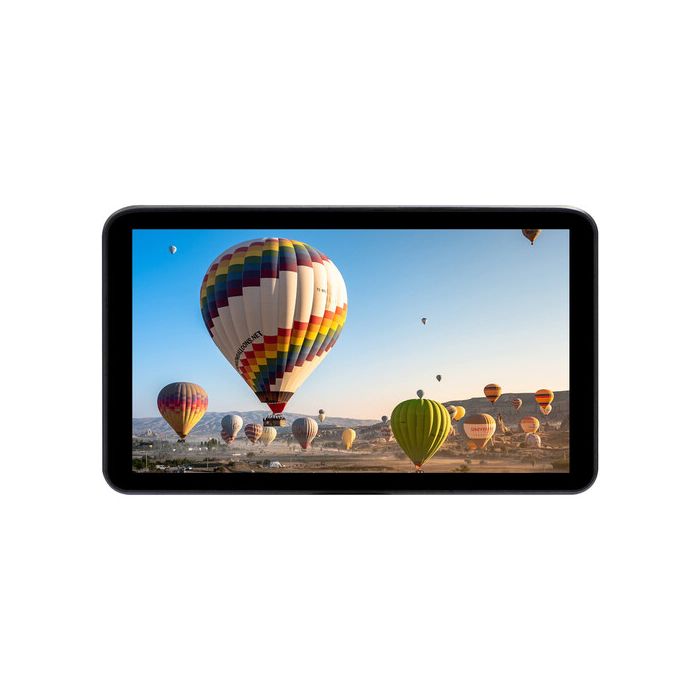

Add pro monitoring tools to your camera rig with the LH7H 7" High-Bright Touchscreen Monitor from PORTKEYS. This bright, 7" on-camera touchscreen display offers 1920 x 1080 resolution, 1000 cd/m² brightness, and the ability to input and output up to DCI 4K24 or UHD 4K30 video via HDMI.
The monitor is powered using the built-in L-series battery plate with a separately available battery, or it can be powered using an optional DC power supply. Other features include 3D LUT support, vertical shooting stretching, anamorphic correction on HDMI output, cropping, and a variety of image monitoring tools, including peaking, color temperature, waveform, histogram, and more.
High-Bright 7" Touchscreen Monitor
This 7" LCD on-camera monitor features 1000 cd/m² and a 1000:1 contrast ratio for daylight visibility.
DCI/UHD 4K Video
Supports HDMI input and output up to DCI 4K24 or UHD 4K30.
Sony L-Series Battery Plate
Power with the built-in L-Series battery plate or power your camera with a separately available dummy battery using the DC output.
Image Tools
- 3D LUT support with custom LUTs via USB
- Peaking
- False color
- Luma
- Waveform
- Real-time eye focus
- Anamorphic de-squeeze
- Anamorphic lens calibration
- Frame guides, crosshairs, grids
- Color temperature
- Brightness
- Sharpness
- Cropping
- Check field
- Zebra
- Luma histogram
- Custom RGB
- Audio meters
- HDR/HLG support
Display | |
Panel Type | LCD |
Display Size | 7.0" / 17.8 cm |
Resolution | 1920 x 1080 |
Aspect Ratio | 16:09 |
Viewing Angle | Horizontal: 170° (85/85) |
Vertical: 170° (85/85) | |
Touchscreen | Yes |
Maximum Brightness | 1000 nits / cd/m2 |
Contrast Ratio | 1000:01:00 |
Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) |
HDR Compatibility | Yes |
Pixels Per Inch (ppi) | 314 ppi |
Image Controls |
Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, Waveform, Zebra |
Inputs / Outputs | |
Video I/O | 1x HDMI 1.4 Input |
1x HDMI 1.4 Output | |
Embedded Audio | HDMI |
Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker | No |
Power I/O | 1x Barrel (24 VDC) Input |
1x USB-A (2 A / 5 VDC) Input | |
Other I/O |
1x USB-A (Firmware/LUT Upload) [Shared with USB-A Power Input] |
Media/Memory Card Slot | No |
Wi-Fi | No |
Bluetooth | No |
Mobile App Compatible | No |
Format Support | |
Video Format | HDMI |
DCI 4K: 24 | |
UHD 4K: 30/29.97/25/24/23.98 | |
1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
1080PsF: 30/29.97/25/24/23.98 | |
1080i: 60/59.94/50 | |
720p: 60/59.94/50 | |
576p: 50 | |
576i: 50 | |
480p: 60/59.94/50 | |
480i: 60/59.94/50 | |
Power | |
DC Input Power | 7 to 24 VDC |
Battery Type | 1x L-Series |
Power Consumption | 8 W |
Mounting | |
Mounting | 2x 1/4"-20 Female |
Environmental | |
Certifications | No |
General | |
Material of Construction | Plastic |
Dimensions | 6.9 x 4.1 x 0.7" / 176.2 x 103.8 x 18.4 mm |
Weight | 8.6 oz / 245 g |
