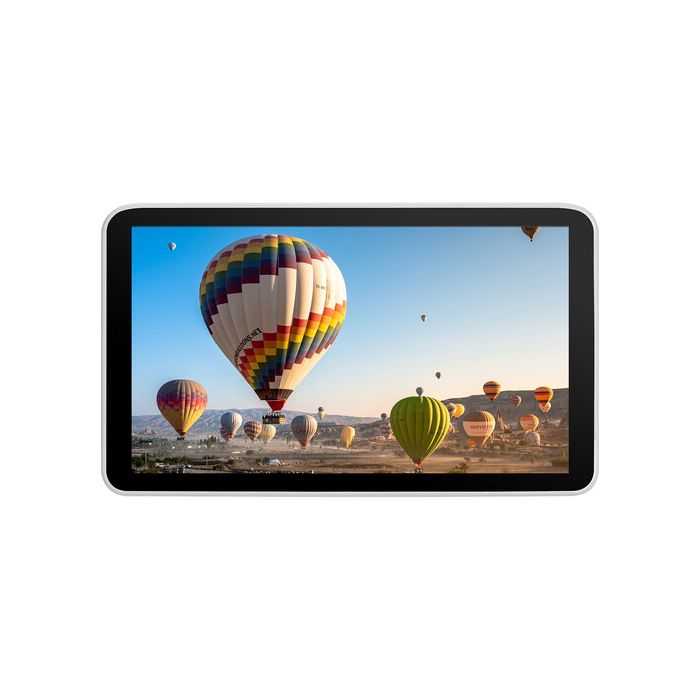

PortKeys LH7P Monitor White

Add pro monitoring tools and control for select Sony cameras to your camera rig with the LH7P 7" High-Bright Touchscreen Monitor with Wireless Control from PORTKEYS. This bright, 7" on-camera touchscreen display offers 1920 x 1080 resolution, 1000 cd/m² brightness, and the ability to input and output up to DCI 4K24 or UHD 4K30 video via HDMI. The monitor comes in a white color.

Compatible with Sony and Blackmagic Design cameras with wireless control capability, this monitor features a built-in wireless module that enables select camera functions, and a separately available control cable also allows you to connect your device to the monitor. Other features include 3D LUT support, vertical shooting stretching, anamorphic correction on HDMI output, cropping, and a variety of image monitoring tools, including peaking, color temperature, waveform, histogram, and more.

Wireless Camera Control Functions

Camera control is available via the integrated wireless module for Blackmagic Design cameras such as the Pocket Cinema Camera 4K/6K/6K Pro and Sony cameras, including the a1, a9, a7C, FX3, FX10, a7S III, a7 IV, RX0, and a7 III.

Control functions include iris, shutter, zoom, frame rate, ISO, color temperature, focus, and more.

High-Bright 7" Touchscreen Monitor

This 7" LCD on-camera monitor features 1000 cd/m² and a 1000:1 contrast ratio for daylight visibility.

DCI/UHD 4K Video

Supports HDMI input and output up to DCI 4K24 or UHD 4K30.

Sony L-Series Battery Plate

Power with the built-in L-Series battery plate or power your camera with a separately available dummy battery using the DC output.

Image Tools

3D LUT support with custom LUTs via USB

Peaking

False color

Luma

Waveform

Real-time eye focus

Anamorphic de-squeeze

Anamorphic lens calibration

Frame guides, crosshairs, grids

Color temperature

Brightness

Sharpness

Cropping

Check field

Zebra

Luma histogram

Custom RGB

Audio meters

HDR/HLG support
