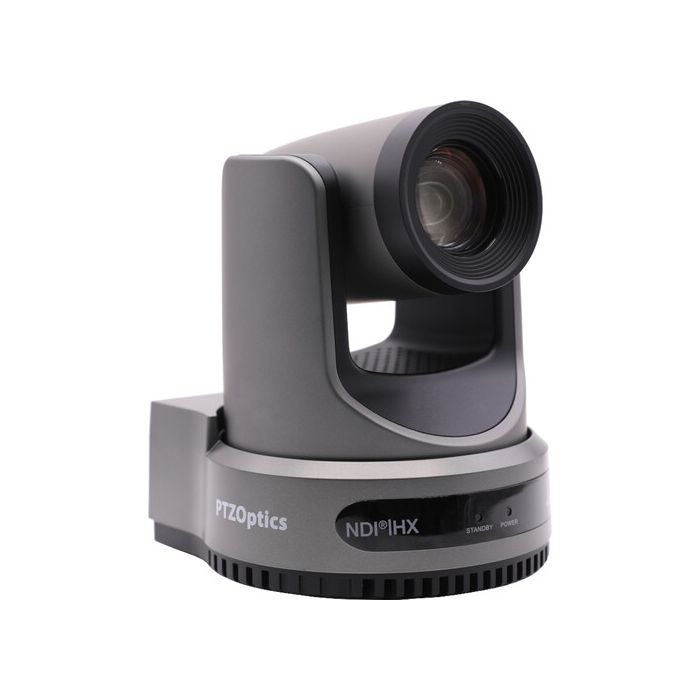

PTZOptics PT20X-4K-GY-G3 Move 4K 20X camera
by PTZOpticsThe Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking for a more intelligent video production workflow.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (Gray)
- IR Remote Control
- 12 VDC Power Adapter
- USB-A to USB-A Cable
- RS-232 Cable
- 2 x AA Battery
A New Standard for PTZ Cameras
The Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking for a more intelligent video production workflow. The Move 4K is capable of 4K at 60fps (1080p at 60fps over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolutions equipment. The Move 4K offers high performance in low-light scenarios, PoE+ capabilities, and a built-in tally light.
Designed with the Future in Mind
Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI®|HX for unparalleled performance and versatility. The Move 4K offers built-in auto-tracking capabilities — no need to run software on another computer — freeing teams of the need for a camera operator. With 12x, 20x, and 30x optical zoom available, the Move 4K can fit seamlessly into any production scenario.
Pan, Tilt, Zoom, Track.
Control your production from behind the scenes – or right in front of them. With the Move 4K’s unique Presenter Lock™ technology, the camera can lock onto a specific person from up to 300 feet away, even while other people are in frame. Plus, this built-in auto-tracking feature allows users to seamlessly switch between on-stage presenters with the simple click of a button.
In addition to the Move 4K’s auto-tracking features, users also have access to PTZOptics’ latest Web UI — updated to provide everything you need in one simple menu. Nearly every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.
Discreet Mounting Options
Mount your PTZOptics Move 4K camera above, below or beside the action to capture the ideal view every time. The new automatic video inversion feature senses the camera’s orientation and saves time on installation and setup.
Free Software for PTZOptics Users
PTZOptics cameras are compatible with a wide range of free software solutions, including:
- Camera Management Platform (CMP) for camera management, control, color correction, auto-tracking
- Control apps for desktop and mobile devices
- Plugins and integrations for popular platforms, including OBS and Twitch
- Camera configuration and management tools
- Support and testing utilities
- And more!
| Imaging | |
| Image Sensor | 1/1.8"-Type CMOS |
| Sensor Resolution | Effective: 8.42 Megapixel (3840 x 2160) |
| IR Cut Filter | No |
| Built-In ND Filter | No |
| Focus Control | Autofocus |
| Manual Focus | |
| Exposure Control | |
| Shutter Type | Electronic Global Shutter |
| Shutter Speed | 1/30 to 1/10000 Seconds |
| Signal-to-Noise Ratio | 55 dB |
| Minimum Illumination | 0.5 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| Lens | |
| Focal Length | 6.2 to 125mm |
| Optical Zoom Ratio | 20x |
| Max Digital Zoom | 16x |
| Field of View | Horizontal: 60.7 to 3.5° |
| Vertical: 34.1 to 1.89° | |
| Maximum Aperture | f/1.58 to 3.95 |
| Video Capture | |
| External Recording Modes | SDI/BNC |
| HD (1920 x 1080p) at 25/29.97/50/59.94/60.00 fps | |
| HD (1920 x 1080i) at 50/59.94/60.00 fps | |
| HD (1280 x 720) at 59.94/60.00 fps | |
| HDMI / RJ45 / USB | |
| UHD 4K (3840 x 2160) at 25/29.97/50/59.94/60.00 fps | |
| HD (1920 x 1080p) at 25/29.97/50/59.94/60.00 fps | |
| HD (1920 x 1080i) at 50/59.94/60.00 fps | |
| HD (1280 x 720) at 59.94/60.00 fps | |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264, H.265, MJPEG, NDI|HX, RTMP, RTSP, SRT |
| 640 x 360 to 3840 x 2160 to | |
| 320 x 240 to 720 x 480 to | |
| IP Multi-Stream Support | Simultaneous |
| H.264, H.265, MJPEG, RTMP, RTSP: 2160p, 1080p, 720p, 480p, 360p | |
| Control | |
| Presets | 255 |
| Move Speed | Pan: 1.7 to 100°/sec |
| Tilt: 1.7 to 69.9°/sec | |
| Movement Range | Tilt: 120° (-30 to 90°) |
| Tally Light | Yes |
| Supported Control Protocols | IP |
| IR | |
| NDI | |
| Pelco-D | |
| Pelco-P | |
| RS-232 | |
| RS-485 | |
| VISCA | |
| Interface | |
| Video I/O | 1 x HDMI 2.0 Output |
| 1 x BNC (3G-SDI) Output | |
| 1 x RJ45 (NDI) Output | |
| 1 x USB-A 2.0 Output | |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input |
| 1 x 1/8" / 3.5 mm TRS Stereo Line Output | |
| Other I/O | 1 x D-Sub 8-Pin (RS-232) Control Input |
| 1 x D-Sub 8-Pin (RS-232) Control Output | |
| 1 x Block 2-Pin (RS-485) Control Input/Output | |
| Built-In Speaker | No |
| Power | |
| PoE Support | PoE+ 802.3at |
| Power I/O | 1 x DC (12VDC) Input |
| Power Consumption | Device: 12 VDC at 2 A (12 W) |
| Environmental | |
| Operating Temperature | 22 to 72°F / -10 to 40°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| General | |
| Material of Construction | Aluminum, Plastic |
| Dimensions (W x H x D) | 6.6 x 6.5 x 5.6" / 168.4 x 164.5 x 141.5 mm |
| Weight | 3.24 lb / 1.47 kg |
