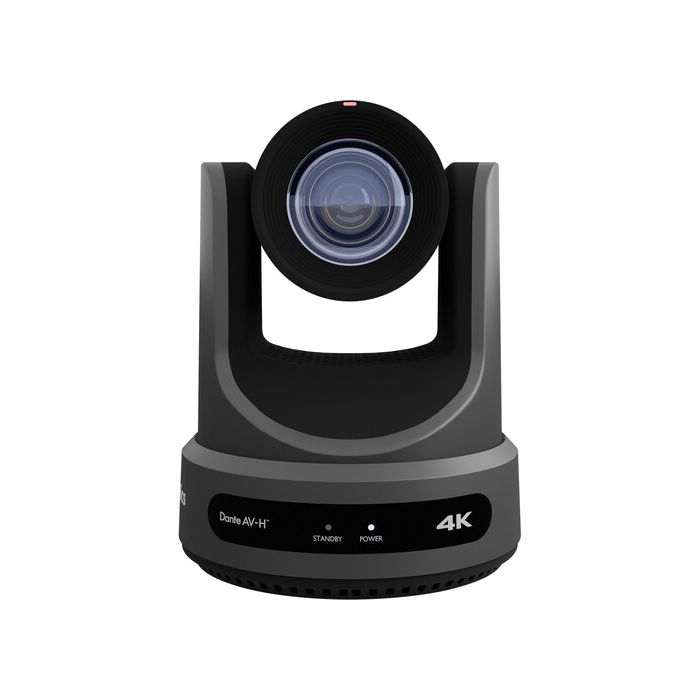

PTZOptics PT20X-LINK-4K-GY Link 4K 20X camera
by PTZOpticsAdd a high-resolution streaming and tracking camera to your classroom, house of worship, or conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with the gray Link 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom from PTZOptics.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- PTZOptics Link 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (Gray)
- 12 VDC Power Adapter
- IR Remote Control
- USB-A to USB-A Cable
- RS-232 Cable
- 2 x AA Battery
Add a high-resolution streaming and tracking camera to your classroom, house of worship, or conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with the gray Link 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom from PTZOptics. The Link 4K camera features the same 4K capture resolutions up to UHD 4K60 via IP and HDMI, up to 1080p60 over 3G-SDI, and it adds support for Dante AV-H audio and video routing.
The Link 4K features auto-tracking for presentations where your subject moves around the room, great for education, how-to, and corporate environments without the need for an operator. Its wide dynamic range, 3D noise reduction, and handy Dante AV-H workflow capabilities provide a sharp, consistent image, even in low light.
The camera's features include a 1/1.8" 4K CMOS 8.42MP sensor for crisp imagery. The built-in zoom lens has an optical zoom range of 20x, and you can zoom in further with up to 16x digital zoom. With 255 programmable preset positions via serial, you can set the camera to rapidly move between positions using IP, RS-232, or RS-485 with separately available controllers or by using IR control with the included remote. It also features a tally light, and it is photo booth capable. The video output is compressed using H.265, H.264, or MJPEG formats, and you can transmit up to two simultaneous streams using Dante AV-H, SRT, RTSP, and RTMP protocols.
The camera supports external audio input via a 3.5mm stereo line-level jack for embedding audio into your stream and a 3.5mm audio output. Power is provided by the included AC adapter or via PoE (Power-over-Ethernet) on a supported network.
Dante AV-H Support
Dante AV-H brings device interoperability and the power of Dante to H.26x endpoints. With Dante AV-H all video and audio routing, configuration, and management of devices is done with one easy-to-use platform. Dante AV-H adds Dante audio to video devices that are independently routable and compatible with thousands of Dante products.
Connectivity Features
Every Link 4K camera features SDI, HDMI, USB, and IP output for unparalleled performance and versatility. Using technology by Dante, the Link 4K can provide 1080p60 resolution over Dante AV-H, as well as SDI.
PTZ and Tracking Movement
The Link 4K's auto-tracking can lock onto a specific person, even while other people are in frame. Users can switch between on-stage presenters with the click of a button. The Link 4K can track subjects up to 300' away.
In addition to the Link 4K's auto-tracking features, users will also have access to the latest Web UI, updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.
Control Options
Users can control Link 4K cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive, or Tricaster, or via a hardware joystick controller such as a PTZOptics IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.
Link 4K cameras can be controlled remotely from anywhere in the world using a variety of tools, including NDI and cloud-based software such as Zoom. Users can also live stream directly to content delivery networks such as Facebook and YouTube.
Multiple Mounting Options
Mount the Link 4K camera above, below, or beside the action using optional wall or ceiling mounts to capture the ideal view every time. The Link 4K's automatic video inversion feature senses the camera's orientation and saves time on installation and setup.
Software Compatibility
Upgrade your meetings and presentations with NewBlueFX Titler Live 5 Present, now free for any PTZOptics customer. Create stunning graphics and data visualizations in minutes with the easy-to-use software, or use it to control your PTZOptics camera from anywhere on the network.
Imaging | |
Image Sensor | 1/1.8"-Type CMOS |
Sensor Resolution | Effective: 8.42 Megapixel (3840 x 2160) |
IR Cut Filter | No |
Built-In ND Filter | No |
Focus Control | Autofocus |
Manual Focus | |
Exposure Control | |
Shutter Type | Electronic Global Shutter |
Shutter Speed | 1/10000 to 1/30 Second |
Signal-to-Noise Ratio | 55 dB |
Minimum Illumination | 0.5 Lux |
Flip / Mirror Support | Image Flip, Mirror (Vertical) |
Lens | |
Focal Length | 6.25 to 125mm |
Optical Zoom Ratio | 20x |
Max Digital Zoom | 16x |
Field of View | Horizontal: 60.7 to 3.5° |
Vertical: 34.1 to 1.9° | |
Maximum Aperture | f/1.58 to 3.95 |
Video Capture | |
External Recording Modes | SDI/BNC |
HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps | |
HD (1920 x 1080i) at 50/59.94/60.00 fps | |
HD (1280 x 720) at 59.94/60.00 fps | |
HDMI / RJ45 / USB | |
UHD 4K (3840 x 2160) at 25/29.97/30.00/50/59.94/60.00 fps | |
HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps | |
HD (1920 x 1080i) at 50/59.94/60.00 fps | |
HD (1280 x 720) at 59.94/60.00 fps | |
Broadcast Output | NTSC/PAL |
IP Streaming | RTMP, RTMPS, RTSP, SRT |
640 x 360 to 3840 x 2160 to | |
320 x 240 to 720 x 480 to | |
Dante AV-H | |
1920 x 1080 at 60p | |
Control | |
Presets | 255 |
Move Speed | Pan: 1.7 to 100°/sec |
Tilt: 1.7 to 69.9°/sec | |
Movement Range | Pan: 340° (-170 to 170°) |
Tilt: 120° (-30 to 90°) | |
Tally Light | Yes |
Supported Control Protocols | IP |
IR | |
NDI | |
Pelco-D | |
Pelco-P | |
RS-232 | |
RS-485 | |
VISCA | |
Wireless Range | 30' / 9.1 m (IR) |
Max Cable Length | 98.5' / 30 m (RS-232) |
3937' / 1200 m (RS-485) | |
Interface | |
Video I/O | 1 x HDMI 2.0 Output |
1 x BNC (3G-SDI) Output | |
1 x RJ45 Output | |
1 x USB-A 2.0 Output | |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input |
1 x 1/8" / 3.5 mm TRS Stereo Line Output | |
Other I/O | 1 x D-Sub 8-Pin (RS-232) Control Input |
1 x D-Sub 8-Pin (RS-232) Control Output | |
1 x Block 2-Pin (RS-485) Control Input/Output | |
Built-In Speaker | No |
Power | |
PoE Support | PoE+ 802.3at |
Power I/O | 1 x Barrel (12VDC) Input |
Power Consumption | Device: 12 VDC at 2 A (18 W) |
Environmental | |
Operating Temperature | 14 to 104°F / -10 to 40°C |
Storage Temperature | -40 to 140°F / -40 to 60°C |
General | |
Material of Construction | Aluminum, Plastic |
OS Compatibility | Windows |
macOS | |
Linux | |
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility | |
Mobile App Compatible | Yes |
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility | |
Dimensions (W x H x D) | 5.6 x 5.9 x 6.9" / 141.5 x 151 x 176 mm |
5.6 x 5.9 x 7.9" / 141.5 x 151 x 201 mm (With Tilt Up) | |
Weight | 3.24 lb / 1.47 kg |
