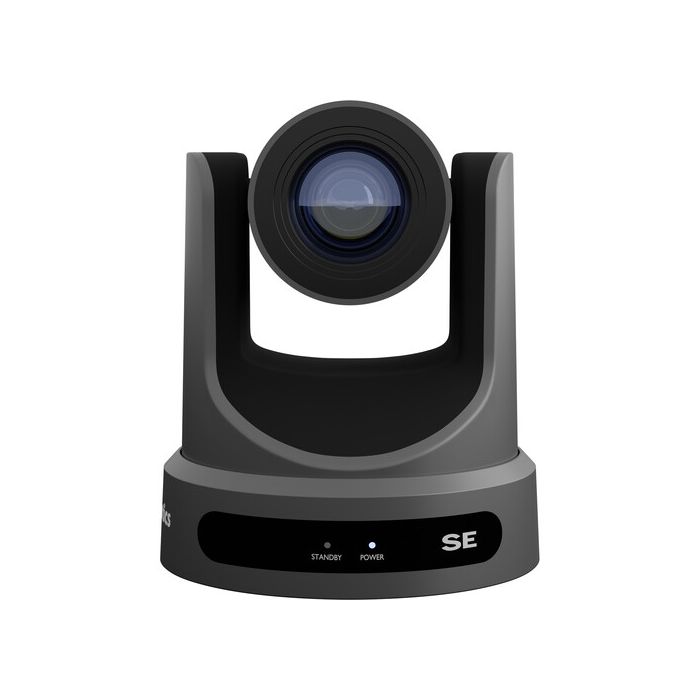

PTZOptics PT20X-SE-GY-G3 Camera

by PTZOptics
Verfügbarkeit: 7-10 days delivery
SKU
PT20X-SE-GY-G3

Add a high-resolution streaming and tracking camera to your classroom, house of worship, or conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with the gray Move SE SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom from PTZOptics.

1.436,25 € 1.149,00 €

Paket beinhaltet

  • PTZOptics Move SE SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (Gray)
  • IR Remote Control
  • 12 VDC Power Adapter

Add a high-resolution streaming and tracking camera to your classroom, house of worship, or conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with the gray Move SE SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom from PTZOptics. The Move SE camera captures resolutions up to 1080p60 IP, HDMI, USB-C, and 3G-SDI, and it features auto-tracking for presentations where your subject moves around the room, great for education, how-to, and corporate environments without the need for an operator. It features wide dynamic range, 3D noise reduction, and superior low-light performance. An optional upgrade is available for NDI|HX support.

The built-in zoom lens has an optical zoom range of 20x, and you can zoom in further with up to 16x digital zoom. With 255 programmable preset positions via serial, you can set the camera to rapidly move between positions using IP, RS-232, or RS-485 with separately available controllers, or by using IR control with the included remote. The video output is compressed using H.265, H.264, or MJPEG formats, and you can transmit up to two simultaneous streams using SRT, RTSP, and RTMP protocols.

The camera supports external audio input via a 3.5mm stereo line-level jack for embedding audio into your stream. Power is provided by the included AC adapter or via PoE (Power-over-Ethernet) on a supported network.

  • Capture up to 1080p60, Auto-Tracking
  • 20x Optical Zoom, 16x Digital Zoom
  • HDMI, 3G-SDI, USB & IP Output
  • Optional Upgrade to NDI|HX Support
  • 255 Presets, 3.5mm Stereo Audio In/Out
  • 60.7° Angle of View
  • High Performance in Low Light
  • RS-232, RS-485 & IP Control Support
  • Supports H.265/H.264/MJPEG Compression
  • DC & PoE Support
Imaging
Image Sensor 1/2.8"-Type CMOS
Sensor Resolution Effective: 2.07 Megapixel
IR Cut Filter No
Built-In ND Filter No
Focus Control Autofocus
  Manual Focus
Exposure Control
Shutter Type Electronic Rolling Shutter
Shutter Speed 1/10000 to 1/30 Seconds
Signal-to-Noise Ratio 55 dB
Minimum Illumination 0.5 Lux
Flip / Mirror Support Image Flip, Mirror (Vertical)
White Balance Presets: Auto, Indoors, Manual, One Push, Outdoors
Lens
Focal Length 4.42 to 88.5mm
Optical Zoom Ratio 12x
Max Digital Zoom 16x
Field of View Horizontal: 60.7 to 3.4°
  Vertical: 34.1 to 1.9°
Maximum Aperture f/1.8 to 2.8
Video Capture
External Recording Modes SDI/BNC
  HD (1920 x 1080p) at 25/29.97/50/59.94/60.00 fps
  HD (1280 x 720) at 50/59.94/60.00 fps
  HDMI / RJ45 / USB
  HD (1920 x 1080p) at 25/29.97/50/59.94/60.00 fps
  HD (1280 x 720) at 50/59.94/60.00 fps
Audio Recording AAC Audio
Broadcast Output NTSC/PAL
IP Streaming H.264, H.265, MJPEG, ONVIF, RTMP, RTMPS, RTSP, SRT, TCP, UDP
  320 x 240 to 1920 x 1080 at 60p (0.03 to 102.4 Mb/s)
IP Multi-Stream Support Simultaneous
  H.264, H.265, MJPEG, RTMP, RTSP: 1080p, 720p, 480p, 360p
Control
Presets 255
Move Speed Pan: 1.7 to 100°/sec
  Tilt: 1.7 to 69.9°/sec
Movement Range Tilt: 120° (-30 to 90°)
  Pan: 340° (-170 to 170°)
Tally Light Yes
Supported Control Protocols IP
  IR
  Pelco-D
  Pelco-P
  RS-232
  RS-485
  VISCA
Wireless Range 29.5' / 9 m (IR)
Max Cable Length 98.4' / 30 m (RS-232)
  3937' / 1200 m (RS-485)
Interface
Video I/O 1 x HDMI 1.4 Output
  1 x BNC (3G-SDI) Output
  1 x RJ45 (Unspecified Signal) Output
  1 x USB-C 3.0 / 3.1/3.2 Gen 1 Output

Audio I/O 1 x 1/8" / 3.5 mm TRS Stereo Line Input
  1 x 1/8" / 3.5 mm TRS Stereo Line Output

Other I/O 1 x D-Sub 8-Pin (RS-232) Control Input
  1 x D-Sub 8-Pin (RS-232) Control Output
  1 x Block 2-Pin (RS-485) Control Input/Output
  1 x USB-A (Firmware)
Built-In Speaker No
Power
PoE Support PoE 802.3af
Power I/O 1 x DC (12VDC) Input
Power Consumption Device: 2 A (12 W)
Environmental
Operating Temperature 14 to 104°F / -10 to 40°C
Storage Temperature -40 to 140°F / -40 to 60°C
Operating Humidity 10 to 80%
General
Material of Construction Aluminum, Plastic
Environmental Protection No
OS Compatibility Windows 7
  Windows 8.1
  Windows 10
  Windows 11
  macOS
  Linux
  *As of November, 2023: Check with manufacturer for the most up-to-date compatibility
Certifications FCC Part 15 Class A
Security Lock Support Kensington Lock Slot
Dimensions (W x H x D) 6.7 x 6.5 x 5.6" / 169 x 164 x 142 mm (With Tilt Up)
Weight 3.00 lb / 1.36 kg
