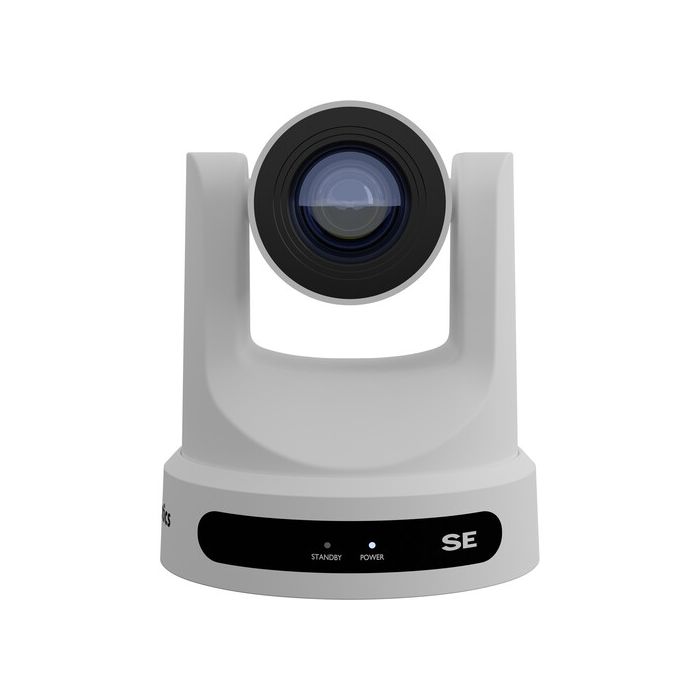

PTZOptics PT20X-SE-WH-G3 Camera
by PTZOpticsAdd a high-resolution streaming and tracking camera to your classroom, house of worship, or conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with the white Move SE SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom from PTZOptics
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- PTZOptics Move SE SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (White)
- IR Remote Control
- 12 VDC Power Adapter
Add a high-resolution streaming and tracking camera to your classroom, house of worship, or conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with the white Move SE SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom from PTZOptics. The Move SE camera captures resolutions up to 1080p60 IP, HDMI, USB-C, and 3G-SDI, and it features auto-tracking for presentations where your subject moves around the room, great for education, how-to, and corporate environments without the need for an operator. It features wide dynamic range, 3D noise reduction, and superior low-light performance. An optional upgrade is available for NDI|HX support.
The built-in zoom lens has an optical zoom range of 20x, and you can zoom in further with up to 16x digital zoom. With 255 programmable preset positions via serial, you can set the camera to rapidly move between positions using IP, RS-232, or RS-485 with separately available controllers, or by using IR control with the included remote. The video output is compressed using H.265, H.264, or MJPEG formats, and you can transmit up to two simultaneous streams using SRT, RTSP, and RTMP protocols.
The camera supports external audio input via a 3.5mm stereo line-level jack for embedding audio into your stream. Power is provided by the included AC adapter or via PoE (Power-over-Ethernet) on a supported network.
- Capture up to 1080p60, Auto-Tracking
- 20x Optical Zoom, 16x Digital Zoom
- HDMI, 3G-SDI, USB & IP Output
- Optional Upgrade to NDI|HX Support
- 255 Presets, 3.5mm Stereo Audio In/Out
- 60.7° Angle of View
- High Performance in Low Light
- RS-232, RS-485 & IP Control Support
- Supports H.265/H.264/MJPEG Compression
- DC & PoE Support
Maximum Aperture | f/1.8 to 2.8 |
Video Capture | |
External Recording Modes | SDI/BNC |
HD (1920 x 1080p) at 25/29.97/50/59.94/60.00 fps | |
HD (1280 x 720) at 50/59.94/60.00 fps | |
HDMI / RJ45 / USB | |
HD (1920 x 1080p) at 25/29.97/50/59.94/60.00 fps | |
HD (1280 x 720) at 50/59.94/60.00 fps | |
Audio Recording | AAC Audio |
Broadcast Output | NTSC/PAL |
IP Streaming | H.264, H.265, MJPEG, ONVIF, RTMP, RTMPS, RTSP, SRT, TCP, UDP |
320 x 240 to 1920 x 1080 at 60p (0.03 to 102.4 Mb/s) | |
IP Multi-Stream Support | Simultaneous |
H.264, H.265, MJPEG, RTMP, RTSP: 1080p, 720p, 480p, 360p | |
Control | |
Presets | 255 |
Move Speed | Pan: 1.7 to 100°/sec |
Tilt: 1.7 to 69.9°/sec | |
Movement Range | Tilt: 120° (-30 to 90°) |
Pan: 340° (-170 to 170°) | |
Tally Light | Yes |
Supported Control Protocols | IP |
IR | |
Pelco-D | |
Pelco-P | |
RS-232 | |
RS-485 | |
VISCA | |
Wireless Range | 29.5' / 9 m (IR) |
Max Cable Length | 98.4' / 30 m (RS-232) |
3937' / 1200 m (RS-485) | |
Interface | |
Video I/O | 1 x HDMI 1.4 Output |
1 x BNC (3G-SDI) Output | |
1 x RJ45 (Unspecified Signal) Output | |
1 x USB-C 3.0 / 3.1/3.2 Gen 1 Output | |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input |
1 x 1/8" / 3.5 mm TRS Stereo Line Output | |
Other I/O | 1 x D-Sub 8-Pin (RS-232) Control Input |
1 x D-Sub 8-Pin (RS-232) Control Output | |
1 x Block 2-Pin (RS-485) Control Input/Output | |
1 x USB-A (Firmware) | |
Built-In Speaker | No |
Power | |
PoE Support | PoE 802.3af |
Power I/O | 1 x DC (12VDC) Input |
Power Consumption | Device: 2 A (12 W) |
Environmental | |
Operating Temperature | 14 to 104°F / -10 to 40°C |
Storage Temperature | -40 to 140°F / -40 to 60°C |
Operating Humidity | 10 to 80% |
General | |
Material of Construction | Aluminum, Plastic |
Environmental Protection | No |
OS Compatibility | Windows 7 |
Windows 8.1 | |
Windows 10 | |
Windows 11 | |
macOS | |
Linux | |
*As of November, 2023: Check with manufacturer for the most up-to-date compatibility | |
Certifications | FCC Part 15 Class A |
Security Lock Support | Kensington Lock Slot |
Dimensions (W x H x D) | 6.7 x 6.5 x 5.6" / 169 x 164 x 142 mm (With Tilt Up) |
Weight | 3.00 lb / 1.36 kg |
