RED Compact EVF Pack
by REDThe RED® Compact EVF Pack is compatible with KOMODO-X™ (Firmware support coming Q1 2024), V-RAPTOR®, and V-RAPTOR XL cameras.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.

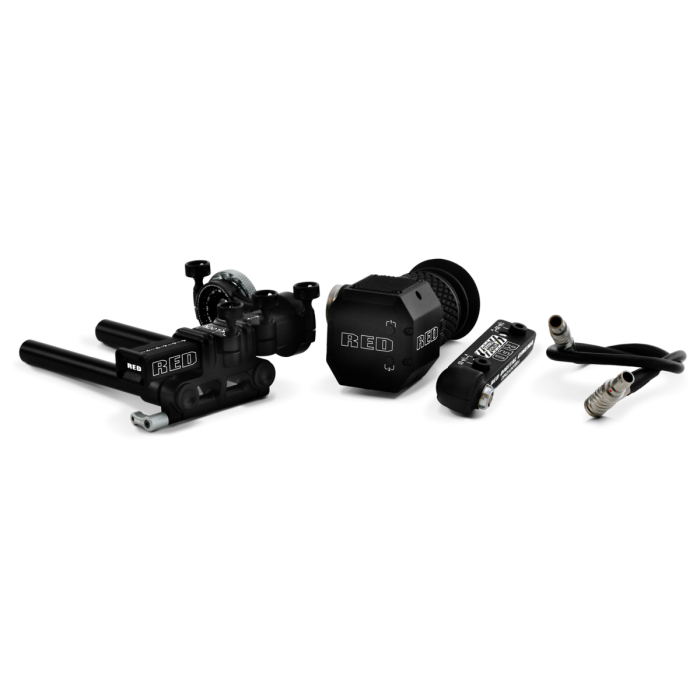

Paket beinhaltet
- RED DIGITAL CINEMA RED Compact EVF
- 1/4"-20 Mount Plate
- RED DIGITAL CINEMA DSMC3 Adapter A for RED Compact EVF
- RED DIGITAL CINEMA RED EVF Mount
- 2 x 15mm Rod (2.3")
- EVF Cable (18")
The RED® Compact EVF Pack is compatible with KOMODO-X™ (Firmware support coming Q1 2024), V-RAPTOR®, and V-RAPTOR XL cameras. The pack includes the RED Compact EVF, a DSMC3™ Adapter A, a RED EVF Mount, and an 18” Right-to-Straight EVF cable.
This pack is ideal for users looking for a highly flexible EVF monitoring solution for their DSMC3 camera system. The EVF Mount allows you to easily position the RED Compact EVF to find your optimal operating configuration. The DSMC3 Adapter A provides a single 16-pin output to supply power, video, and data to the EVF. The RED Compact EVF gives a clear, sharp viewing experience, and allows the operator to control and adjust key camera parameters such as FPS, ISO, and White Balance, or to quickly toggle user-assignable camera features with the integrated rear buttons.
NOTES:
- A 15mm mounting bracket is not included. Refer to RED 15mm Top Handle Bracket and V-RAPTOR XL Top 15 mm LWS Rod Support Bracket for DSMC3 mounting options.
- To prevent damage to the camera, the DSMC3 Adapter A should only be attached or removed while the camera is powered off.
CAMERA COMPATIBILITY
- KOMODO-X
- V-RAPTOR
- V-RAPTOR XL
DIMENSIONS | Height: 2.43 in. (61.7 mm) |
Width: 2.46 in. (62.5 mm) | |
Depth: 4.8 in. (121.9 mm) | |
WEIGHT | 0.8 lbs (360 g) |
MATERIAL | Aluminum |
CAMERA MOUNTING | Via integrated attachment wheel and RED EVF Mount or 1/4-20 mount points on included Mount Plate. |
RESOLUTION | 1920 (width) x 1080 (height) |
BIT DEPTH (COLOR) | 8-bit |
CONTRAST RATIO | > 10000:1 |
DISPLAY RATE | 60 fps |
OPTICS | Fully coated optics with > 32° field of view, infinity focus and eye cup that accommodates standard 1.6” to 1.8” diameter eye cushions |
DIOPTER RANGE | – 2.5 to + 2.5 diopter correction range |
BUTTONS | Two buttons for camera control or user defined buttons |
POWER CONSUMPTION | 2.5 W (max) |
OPERATING TEMPERATURE | 32°F to 104°F (0°C to 40°C) |
STORAGE TEMPERATURE | –4°F to 122°F (–20°C to 50°C) |
OPERATING HUMIDITY | 0% to 85%, non-condensing |
STORAGE HUMIDITY | 0% to 85%, non-condensing |
