RED DSMC3 RED 5-Pin to Dual XLR Adapter
by RED
Verfügbarkeit:
14-20 days delivery
SKU
720-0061
RED DIGITAL CINEMA DSMC3 5-Pin to Dual XLR 3-Pin Adapter
375,00 €
300,00 €
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- RED DIGITAL CINEMA DSMC3 5-Pin to Dual XLR 3-Pin Adapter
- Right-Angle Mounting Bracket
- 2 x 1/4"-20 Mounting Screw

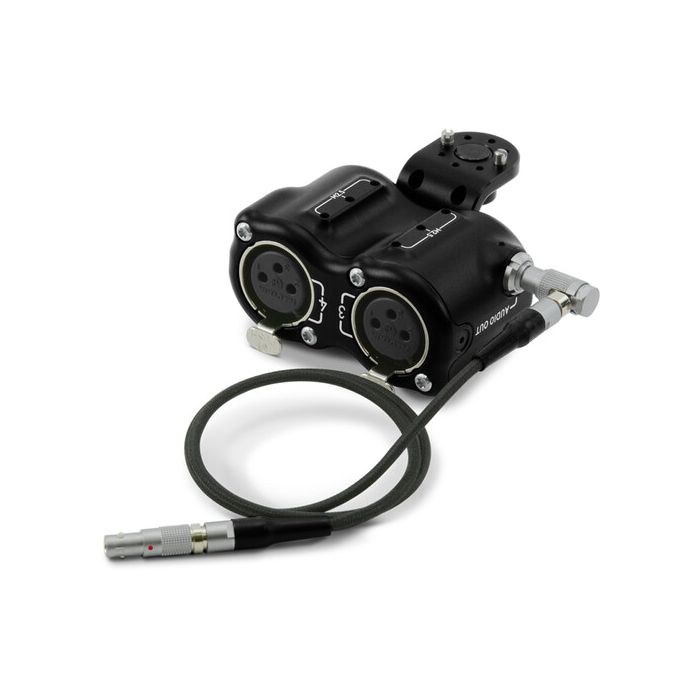

Add two XLR inputs to your V-RAPTOR camera with the RED DSMC3 5-Pin to Dual XLR 3-Pin Adapter. Connect the included 5-pin ODU cable to your camera's ODU port, and the other end of the cable to the adapter's port. The adapter can provide 48V phantom power and supports both mic and line-level inputs. It mounts to the V-Raptor using a 3/8"-26 screw, and has anti-twist pins to prevent it from spinning on your camera. The unit also features 6 x M2.5 screw holes for future accessories.
Key Features
- For RED V-RAPTOR
- Line, Mic, Phantom Power
- 3/8"-16 Mounting with Anti-Twist Pins
General | |
Compatibility | RED V-RAPTOR |
Audio I/O | 2 x XLR 3-Pin Mic/Line Input |
1 x DSMC3 RED 5-Pin Mic/Line Output | |
Power | |
Power Source | Camera |
Environmental | |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 122°F / -20 to 50°C |
Physical | |
Mounting | Bottom: 1 x 3/8"-16 |
Material of Construction | Aluminum, Rubber |
Cable Length | Not Specified by Manufacturer |
Dimensions | 2.54 x 1.7 x 1.31" / 64.52 x 43.18 x 33.27 mm |
Weight | 7.9 oz / 224 g |
Packaging Info | |
Package Weight | 0.55 lb |
Box Dimensions (LxWxH) | 5.4 x 4.2 x 1.7" |
