RED V-RAPTOR XE RF Mount Cine Essentials Pack

RED V-RAPTOR XE RF Mount Cine Essentials Pack

by RED

Verfügbarkeit: 7-10 days delivery

SKU

710-0450

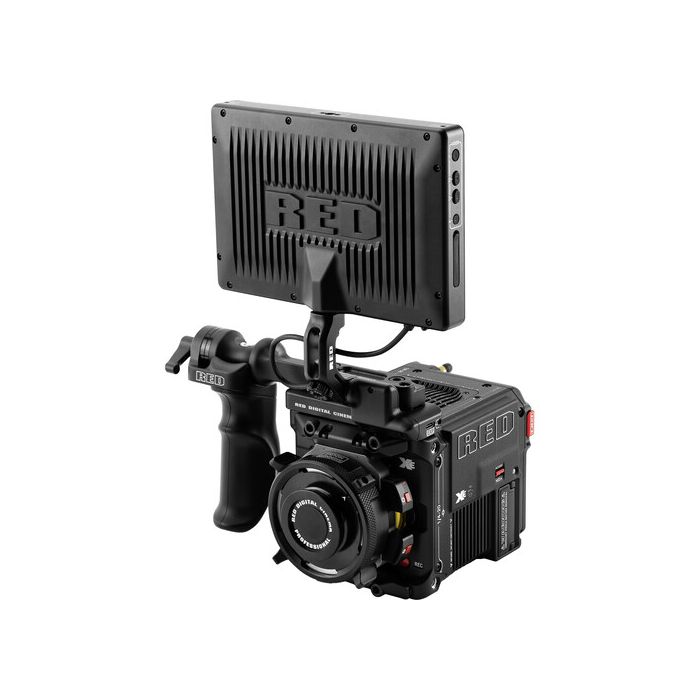

This V-RAPTOR XE Cine Essentials Pack from RED DIGITAL CINEMA pairs their V-RAPTOR XE 8K VV Camera with several essential filmmaking accessories in a cost-effective package.

22.412,50 € 17.930,00 €

Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Paket beinhaltet

RED DIGITAL CINEMA V-RAPTOR XE 8K VV Camera (Canon RF)
DSMC 150W AC Power Adapter
RED DIGITAL CINEMA V-RAPTOR RF to PL Adapter with Electronic ND Filter Pack
Electronic ND Filter
Clear Filter
PL-Mount Shim Set
V-RAPTOR RF to PL Support Bracket Set (2)
RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD with Rigid Hinge
Rigid Hinge Arm
DSMC3 RMI Cable
RED DIGITAL CINEMA KOMODO Outrigger Handle

Details

This V-RAPTOR XE Cine Essentials Pack from RED DIGITAL CINEMA pairs their V-RAPTOR XE 8K VV Camera with several essential filmmaking accessories in a cost-effective package. The pack includes a V-RAPTOR XE, a Nikon Z to ARRI PL lens adapter with a 2- to 7-stop electronic ND filter and support brackets, a DSMC3 RED Touch 7.0" LCD monitor, and a KOMODO Outrigger handle.

RED DIGITAL CINEMA V-RAPTOR XE 8K VV Camera (Nikon Z)

Flagship Image Quality, Streamlined for Essentials

The V-RAPTOR XE 8K VV Camera from RED DIGITAL CINEMA delivers the 8K global shutter and compact design of the V-RAPTOR X, while focusing on the core features essential to modern filmmaking. Built on RED's DSMC3 platform, the XE provides a large-format VV sensor in a lightweight 4 lb body, capturing 8K video in up to 60 fps with 17+ stops of dynamic range. Balancing high-end performance with class-leading value, the XE omits advanced Global Vision features like Phantom Track and Extended Highlights, but retains the same image quality, workflow flexibility, and robust connectivity that define RED's V-RAPTOR line.

Filmmakers benefit from the global shutter's 8 ms shutter scan time, advanced autofocus with face detection, simultaneous ProRes proxy recording, and dual 12G-SDI outputs for discrete monitoring. Compact, rugged, and ready for a variety of rig configurations, the XE is a cost-effective solution for productions requiring RED's flagship sensor technology.

8K VV Sensor with Global Shutter

The 35.4MP large-format VV sensor features a global shutter, eliminating the artifacts produced by rolling shutters in scenes with rapid motion or flashing lights. With a scan time of just 8 ms, the XE ensures distortion-free motion capture while maintaining full detail, contrast, and dynamic range across every frame. The XE provides a multitude of resolution and frame-rate options, capturing 17:9 footage up to 8192 x 4320 when utilizing its entire VV sensor.

8K up to 60 fps
6K up to 80 fps
5K up to 96 fps
4K up to 120 fps
2K up to 240 fps

Intelligent Autofocus

Powered by in-camera processing, on-sensor phase detection, and advanced face detection, the V-RAPTOR XE provides all levels of filmmakers with precise, automatic focus control in a wide range of environments.

Dynamic Range

The V-RAPTOR XE delivers 17+ stops of dynamic range, with REDCODE Raw preserving fine detail in both extreme highlights and deep shadows. With class-leading performance in low light, the XE maintains saturation in shadows while reducing fixed pattern noise.

Flexible Video Recording

Sporting a single CFexpress Type B card slot, the XE records internally to a compatible media card with data rates topping out at 800 MB/s. With support for REDCODE Raw HQ recording, the XE ensures post-production flexibility for color grading, cropping, and visual effects. Simultaneous proxy recording and alternative format options ensure smooth integration with existing workflows.

R3D format ensures maximum latitude and post-production flexibility
Simultaneous ProRes proxy recording for a streamlined editorial process
Dedicated ProRes 4444 XQ recording up to 4K120

Dynamic Range

Flexible Video Recording

R3D format ensures maximum latitude and post-production flexibility
Simultaneous ProRes proxy recording for a streamlined editorial process
Dedicated ProRes 4444 XQ recording up to 4K120

Rugged DSMC3 Design

Sharing the same form factor as the V-RAPTOR X, the XE's lightweight 4 lb aluminum alloy body ensures durability without sacrificing mobility. Its advanced thermal management system maintains the camera's optimal internal temperature, preventing both overheating and overcooling.

RED DIGITAL CINEMA V-RAPTOR Z to PL with Electronic ND Filter Adapter Pack

PL Lens Mount with Variable ND

The V-RAPTOR Z to PL with Electronic ND Filter Adapter Pack from RED lets you use cine-style ARRI PL-mount lenses with your V-RAPTOR Z mount camera and easily adjust your exposure two to seven stops. The titanium-core adapter transmits Cooke /i data and record triggering, can be shimmed, and is temperature resistant.

Robust PL Mount

This robust mount enables consistent, precise back focus whether you're using the ND or the clear filter.
Please note that existing RED V-RAPTOR RF to PL or V-RAPTOR Z to PL adapter users should contact RED directly about purchasing just the Z to PL with ND adapter without the ribs or support brackets.
Please note that this adapter is only compatible with the V-RAPTOR Z mount camera.

Neutral Density and Clear Filters

Use the variable neutral density filter to reduce your exposure by 2 to 7 stops. Adjusting your image brightness can be done independently of your camera and lens.
This enables more flexible exposure and depth of field control while recording video without stopping down on your lens or adjusting your shutter speed.
The ND filter is paired with a clear filter of the same thickness so that your back focus remains the same when you don't need to use the ND.

Support Components

This lens adapter pack also includes PL support brackets.
The brackets add rigidity, providing native mount-like support.

RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD with Rigid Hinge

Add a direct-mount onboard monitor to your DSMC3 camera rig with the DSMC3 RED Touch 7.0" LCD Monitor with Rigid Hinge from RED DIGITAL CINEMA. The RED Touch features daylight viewing, a wide 100% DCI-P3 color gamut, and touchscreen control for DSMC3 cameras, such as the V-RAPTOR 8K VV. The rigid hinge and arm enable you to apply more pressure for positioning the Touch for optimal viewing. The Touch monitor features 1920 x 1200 resolution, a 1250:1 contrast ratio, and 1300 cd/m² brightness for high-quality imaging.

This monitor attaches directly to your DSMC3 BRAIN using its Pogo mount, which provides video, data, and power to the monitor from the camera. If you need to use the Pogo mount for another accessory, the monitor also features a locking USB-C connector that alternately allows you to pass video, data, and power to the camera. Note that the DSMC3 Touch monitor is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.

Daylight Viewable

Designed for daylight viewing with 322 ppi, 1920 x 1200 resolution, and 1800 cd/m² brightness.

Rigid Hinge

A rigid hinge system enables you to apply greater pressure when positioning the Touch for reliable viewing.

DCI-P3 Color Gamut

A 1920 x 1200 resolution and wide 100% DCI-P3 color gamut for optimal imaging.

SmallHD Page OS

Runs SmallHD PageOS software that provides full camera control. Features include waveform, vectorscope, histogram, false color, color picker, pixel zoom, and additional functions.

Pogo Mount

Mounts directly onto the BRAIN using the Pogo mount.

USB-C Connector

USB-C connector is used for video, data, and power.

RED DIGITAL CINEMA KOMODO Outrigger Handle

The KOMODO Outrigger Handle from RED DIGITAL CINEMA provides flexible handling when operating your KOMODO digital cine camera. This low-profile handle is especially suited for keeping one hand on the integrated record/stop button and the other positioned for focus pulls or zooming. The KOMODO Outrigger handle features a rugged build, 360° of swivel rotation for optimal positioning, and two 1/4"-20 accessory threads. Attach it to your camera via its pogo connector or its two captive 1/4"-20 screws.

Mehr Informationen

Imaging
Lens Mount	Canon RF
Lens Communication	Yes
Image Sensor	40.96 x 21.6 mm (VistaVision) CMOS
Sensor Resolution	Effective: 35.4 Megapixel (8192 x 4320)
Image Stabilization	No
Built-In ND Filter	No
Built-In CC Filter	No
Internal Filter Holder	No
Capture Type	Stills & Video
Exposure Control
Shutter Type	Electronic Global Shutter
Advertised Dynamic Range	17 Stops
Focus
Focus Modes	Automatic, Continuous-Servo AF, Manual Focus, Single-Servo AF
Video Capture
Internal Recording	REDCODE RAW
	8192 x 4320 up to 60.00 fps
	6144 x 3240 up to 80 fps
	4096 x 2160 up to 120 fps
	2048 x 1080 up to 240 fps
	*Sensor Crops Video
	ProRes 422/ProRes 422 HQ/ProRes 422LT/ProRes 4444/ProRes 4444XQ
	DCI 4K (4096 x 2160) up to 120 fps
	*Sensor Crops Video
	ProRes 422 HQ Proxy
	2048 x 1080 up to 60.00 fps
	*Sensor Crops Video
	REDCODE HQ
	8192 x 4320 up to 60.00 fps
	6144 x 3240 up to 80 fps
	4096 x 2160 up to 120 fps
	2048 x 1080 up to 240 fps
	*Sensor Crops Video
Video Output	SDI/BNC
	4096 x 2160 up to 60.00 fps
	2048 x 1080p up to 60.00 fps
Fast-/Slow-Motion Support	Yes
Gamma Curve	RED IPP2
Built-In Microphone	Mono
Audio Recording	2-Channel, 24-Bit at 48 kHz
IP Streaming	No
Interface
Media/Memory Card Slot	Single Slot: CFexpress Type B (CFast 2.0)
Internal Storage	No
Video I/O	2x BNC (12G-SDI) Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Headphone Output
	1x 5-Pin LEMO Mic/Line Input (+48 V Phantom Power)
Power I/O	1x LEMO 6-Pin (11 to 17VDC) Input
Other I/O	1x USB-C Control/Data/Video
	1x 9-Pin (Genlock, RS-232) Control/Data Input/Output
	1x 9-Pin (Timecode)
Wireless	Wi-Fi
Mobile App Compatible	No
Global Positioning (GPS, GLONASS, etc.)	No
Monitor
Display Type	Primary Monitor: Fixed 2.4" Non-Touchscreen LCD
Viewfinder
Type	Optional, Not Included
Power
Battery Type	Micro V-Mount
Environmental
Operating Conditions	32 to 104°F / 0 to 40°C
Storage Conditions	-4 to 122°F / -20 to 50°C up to85% Humidity
General
Shoe Mount	No
Tripod Mount	1/4"-20 Female (Bottom)
	3/8"-16 Female (Bottom)
Accessory Mounting Thread	28x 1/4"-20
Material of Construction	Aluminum
Dimensions (W x H x D)	6.1 x 4.5 x 4.3" / 155.5 x 115.5 x 108 mm
Weight	4 lb / 1.8 kg (Body Only)
