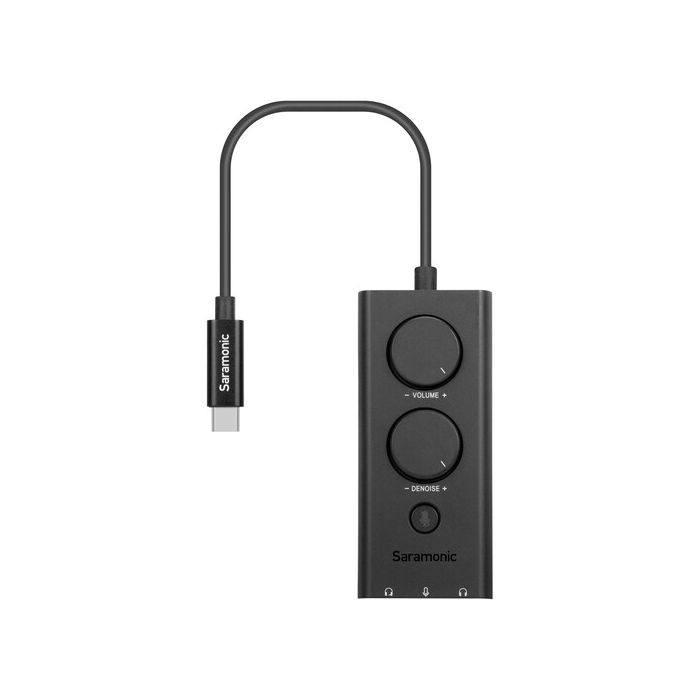

Saramonic SR-EA5 Audio Interface
by SaramonicProvides Clearer Audio with Less Noise
Use with Computers and Mobile Devices
3.5mm Input/Output for Earbuds with Mic
3.5mm Input for Microphone
3.5mm Headphone Output
Noise Reduction Control
Volume Control
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Saramonic SR-EA5 Denoise Sound Card
- USB Type-C to USB Type-A Adapter
Get better quality sound with the SR-EA5 Denoise Sound Card from Saramonic. This portable audio interface features a 3.9" connecting cable with a USB Type-C port and a USB Type-A adapter, allowing you to connect a wide range of mobile devices and computers. Analog connections include a 3.5mm connector that allows you to interface with headphones or wired earbuds with a microphone, another 3.5mm port that supports a TRS microphone connection, and yet another 3.5mm jack designed for monitoring via TRS or TRRS headphones.
The SR-EA5 gets power from the USB connection, requires no drivers, and offers simple and streamlined controls. One knob controls the volume level with a range from 0 to 20 dB, while a second knob lets you adjust the amount of noise cancelling from 0 to -45 dB. A mute button conveniently cuts off input and output audio.
At a Glance
- Adjustable audio sound
- Noise-reduction design
- One mute button
- No driver required
- Compatible with multiple devices
| Channels of I/O |
Analog:
1 Inputs / 2 Output at 48 kHz |
| Maximum Sampling Rate |
48 kHz / 16-Bit
|
| Number of Microphone Inputs |
1
|
| Analog Audio I/O |
1x 1/8" / 3.5 mm TRS Unbalanced Headset In/Out
1x 1/8" / 3.5 mm TRS Balanced Mic Input 1x 1/8" / 3.5 mm TRRS Unbalanced Headphone Output |
| Digital Audio I/O |
No
|
| Host Connection |
1x USB-C
|
| OS Compatibility |
macOS 10.12
Windows 10 |
| Power Requirements |
USB Bus Power
|
| Channels of I/O |
Analog:
1 Inputs / 2 Output at 48 kHz |
| Built-In DSP |
No
|
| Maximum Sampling Rate |
48 kHz / 16-Bit
|
| Number of Microphone Inputs |
1
|
| Built-In Microphone |
No
|
| Pad |
No
|
| Gain/Trim Range |
0 dB 20 dB
|
| Solo/Mute |
Mute per Master
|
| Analog Audio I/O |
1x 1/8" / 3.5 mm TRS Unbalanced Headset In/Out
1x 1/8" / 3.5 mm TRS Balanced Mic Input 1x 1/8" / 3.5 mm TRRS Unbalanced Headphone Output |
| Digital Audio I/O |
No
|
| Host Connection |
1x USB-C
|
| Host Connection Protocol |
Not Specified by Manufacturer
|
| USB (Non-Host) |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| MIDI I/O |
No
|
| Expansion Slots |
No
|
| Wireless |
No
|
| Frequency Response |
20 Hz to 20 kHz
|
| Headphone Output Power |
15 mW
|
| SNR |
> 80 dB
|
| Sample Rates |
48 kHz
|
| Bit Depths |
16-Bit
|
| Sync Sources |
No
|
| Media/Memory Card Slot |
No
|
| OS Compatibility |
macOS 10.12
Windows 10 |
| Mobile App Compatible |
Yes: Android & iOS
|
| Power Requirements |
USB Bus Power
|
| AC/DC Power Adapter |
5 V at 200 mA
|
| Operating Temperature |
-4 to 131°F / -20 to 55°C
|
| Dimensions |
3.1 x 1.4 x 0.6" / 8 x 3.5 x 1.6 cm
|
| Weight |
1.3 oz / 36.5 g (with Accessories)
|
| Package Weight |
0.155 lb
|
| Box Dimensions (LxWxH) |
6.1 x 3.15 x 0.9"
|
