Seetec P173-9HSD-CO SDI monitor

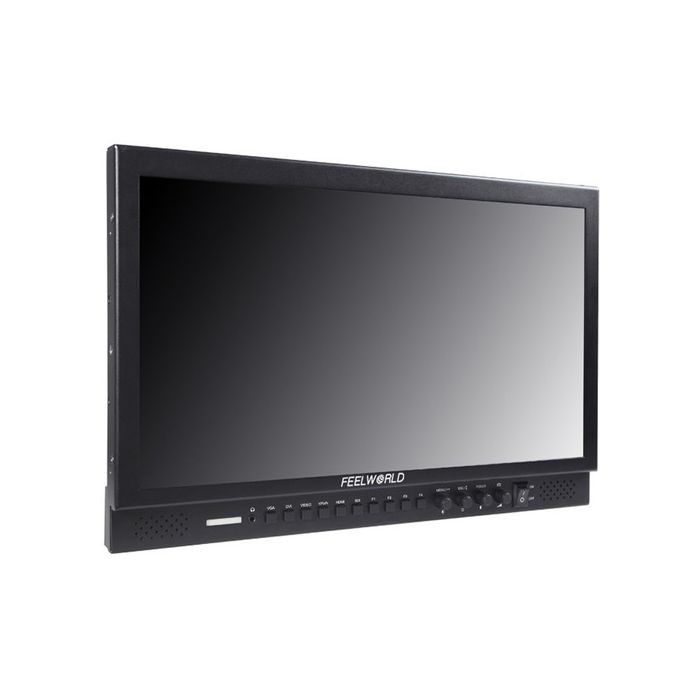

The 17.3" 4K Carry-On Broadcast Monitor from FeelWorld features a 1920 x 1080 display and supports up to UHD 4K30 signals. It comes screwed into a metal case designed to allow for efficient use while ensuring optimal heat dissipation and all-around protection on set. You can set it on the ground, lean it against something, set it down flat on a desktop or similar surface, and carry it from place to place using the top handle. The lid comes off completely when you unlock it at multiple locking points to provide a full view of the screen. Alternatively, the monitor can be unscrewed from the case and installed into a rack via the built-in handles and built-in rack ears.

The monitor offers HDMI, 3G-SDI, and analog inputs and outputs, RCA audio inputs, and a tally port. All these connections, plus an integrated V-mount battery plate and 4-pin XLR and barrel power inputs are accessible via a door on the rear of the case. A headphone jack and built-in speakers are available for audio monitoring, and a 3-color LED tally light is provided on the bottom of the front panel.

Image analysis functions include peaking focus assist, zoom, and pixel-to-pixel, and these are assignable across four function buttons on the front panel. A large collapsible sunshade is included for use outdoors or in bright indoor conditions.

Key Features

• Protective metal case ensures optimal heat dissipation
• Removable from metal case and rack-mountable via built-in rack ears and handles
• 1920 x 1080 resolution display
• Supports up to UHD 4K30 signals
• HDMI, 3G-SDI, component BNC, composite BNC, DVI, and RCA audio inputs
• HDMI, 3G-SDI, component BNC, composite BNC outputs
• 178 / 178° viewing angle
• Color depth: 16.7 million colors
• Tally port
• Built-in red/green/yellow LED tally indicators
• 3.5mm stereo headphone jack
• Built-in speakers
• Integrated V-mount plate
• 300 cd/m² brightness
• Includes collapsible sunshade
• 4-pin XLR and DC barrel power ports

Image Analysis Functions

• Peaking focus assist
• Check field
• Camera mode
• Pixel-to-pixel
• Center marker
• Safe marker (80, 85, 90, 93, 96, 2.35:1)
• Image flip (horizontal, vertical, and horizontal and vertical)
• Image freeze
• Zoom all
• U/D and L/R zoom
