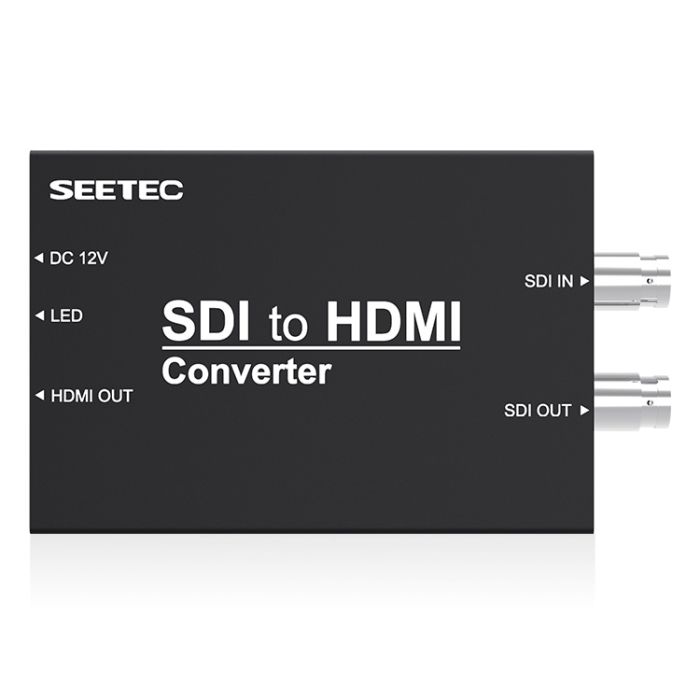

Seetec STH SDI to HDMI Converter
by Seetec● 1 SDI Input, 1 HDMI Output, 1 SDI Loop Output
● Double Power Supply System
● Standard 1/4 Screw Threads
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
1× Power Adapter
1× F970 Battery Plate
1× Operation Manual
SEETEC New Release Mini Converters
The SEETEC Mini Converters are incredibly tiny broadcast quality video converters that come in three models, SDI ⇌ HDMI Cross Converter, SDI to HDMI Converter , HDMI to SDI Converter.
Standard “1/4-20”screw threads for flexible installing. You get HDMI and professional 3G-SDI connections for working with almost SD and HD formats. Flexible double power supply System that supports F970, D28S, E6, battery plate and also power adapter.
SDI to HDMI Converters
1X SDI input
1X HDMI output
1X SDI output
Use Anywhere
Mini size broadcast quality converters!
SEETEC Mini Converters are so small you can use them anywhere! Whether you're carrying one in your laptop bag or in your outside broadcast van and road cases. They're perfect for use on set in broadcast news, at live events that have screens and cameras all around, or even in episodic television shows feeding big screen televisions that are part of the set!
Enjoy Perfect Visual Experience
High-performance digital chip, 1080P HD resolution, perfect show, make sure that the screen-definition picture quality without distortion.
Full Size Connections
Works with the cables you already have!
SEETEC Mini Converter feature full size 3G-SDI and HDMI connections! The SDI connections are multi-rate, compatible with SD and HD-SDI equipment. Mini Converter SDI to HDMI features One SDI input, One SDI loop-out, One HDMI output so you can connect it to multiple devices such as switchers, routers, monitors and more!
Flexible Double Power Supply System
The Mini Converter can be powered in two ways: with an DC adapter or lithium batteries. With F970 battery plate, lithium batteries are commonly used and are easy to find and replace, it's the best choice for outdoor operation.
Simple, Compact and Rugged
Built for any environment!
SEETEC Mini Converters are designed to be used anywhere, machined out of a solid block of metal! You can put them in equipment racks in the studio, on news trucks, or use them outside for live sports and other events.
Flexible Installing
Standard “1/4-20”screw threads for flexible installing.
Model
STH (SDI to HDMI Converter)
Input
|
1 X BNC |
3G/HD/SD-SDI |
Output
|
1 X BNC |
3G/HD/SD-SDI |
|
1 X HDMI |
HDMI |
SDI Support Format
|
3G-SDI:1080P(60/59.94/50) |
|
HD-SDI:1080P(30/29.97/25/24) |
|
1080I(60/59.94/50) |
|
1080PsF24 |
|
720P(60/59.94/50/30/29.97/25/24) |
HDMI Support Format
|
1080P(60/59.94/50/30/29.97/25/24) |
|
1080I(60/59.94/50) |
|
1080PsF24 |
|
720P(60/59.94/50/30/29.97/25/24) |
General
|
Power Consumption |
≤3W |
|
Input Voltage |
DC 5～24V |
|
Connector |
DC 12V |
|
Battery Plate |
F970 (Standard); D28S, E6 (Optional) |
|
Install Way |
1/4"-20 Thread Socket |
|
Working Temperature |
-20°C~60°C |
|
Storage Temperature |
-30°C~70°C |
|
Unit Size (mm) |
98.8L×67.4H×22.8D mm |
|
Unit Weight |
180g/210g (With F970 Plate) |
