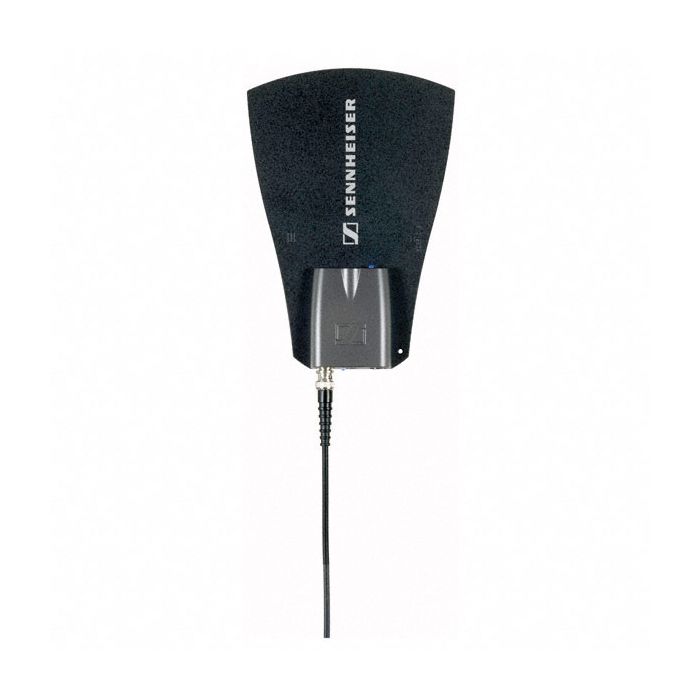

Sennheiser A 3700

by Sennheiser
Verfügbarkeit: 7-10 days delivery
SKU
SEN-502195

Omnidirectional antenna with integrated AB3700 for EM3731/3732 series and EM2000/2050 receivers only.

948,75 € 759,00 €

Paket beinhaltet

  • Sennheiser A 3700

The SennheiserA 3700 Omnidirectional Antenna with Booster is an RF antenna for the Sennheiser EM3731, EM3732 and EM3732 Command receivers. The antenna significantly boosts RF strength and gain during long BNC cable runs. The A 3700 features up to 15dB of amplification.

Frequency Range 470-866 MHz
Polar Pattern Omnidirectional
Gain typ: bypass (-3 dB), 5dB, 10dB, 15dB adjustable
Without remote power suply: -6dB
Impedance 50 Ohms
OIP3: > = 32dBm
Connections 1 x BNC
Power Supply 9-15 V DC / 160-100 mA
Thread 3/8" or 5/8"
Dimensions 9.84 x 6.49 x 0.90" (250 x 165 x 23mm)
Weight 13.75 oz (390 g)
