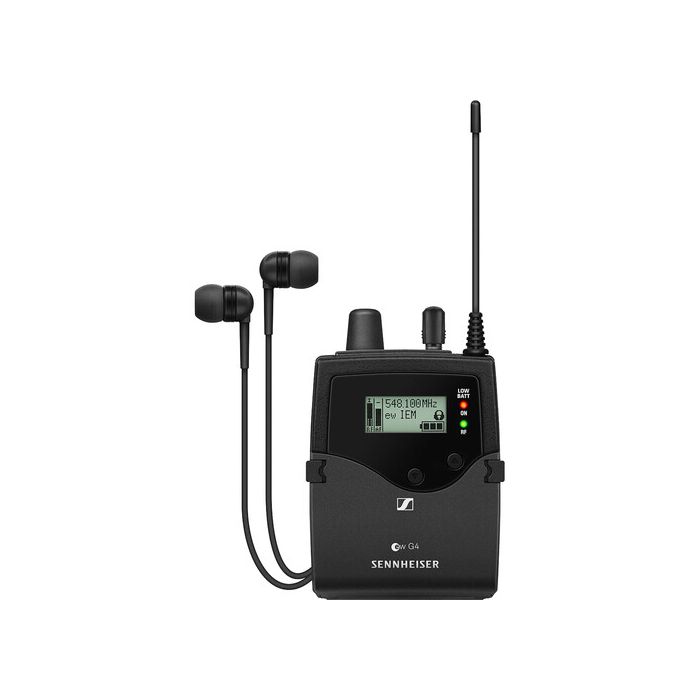

Sennheiser EK IEM G4-GB
by Sennheiser
Verfügbarkeit:
14-20 days delivery
SKU
SEN-509911
Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.
520,00 €
416,00 €
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- 1x EK IEM G4 stereo receiver
- 2x AA batteries
- 1x IE 4 earphones
- 1x Quick guide
- 1x Safety guide
- 1x Manufacturer declaration sheet
Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage.
Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.
- Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Compatible with Sennheiser WSM control software for flexible frequency allocation
- Up to 16 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 50 mW) depending on country regulations
| Modulation | Wideband FM stereo |
| (MPX pilot tone) | |
| Frequency range | GB: 606 - 648 MHz |
| Receiving frequencies | Max. 1680 frequencies, adjustable in 25 kHz steps |
| 20 frequency banks, each with up to 16 factory- preset channels, no intermodulation | |
| 6 frequency banks with up to 16 programmable channels | |
| Switching bandwidth | up to 42 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| MPX pilot tone (frequency/deviation) | 19 kHz/±5 kHz |
| Frequency stability | ±10 ppm |
| Antenna output | BNC socket, 50 Ω |
| RF output power at 50 Ω | switchable: |
| Low: typ. 10 mW | |
| Standard: typ. 30 mW | |
| High: typ. 50 mW | |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| AF frequency response | 25 Hz to 15 kHz |
| AF input BAL AF IN L (I) + MONO/ BAL AF IN R (II) | 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced |
| Max. input level | +22 dBu |
| Total harmonic distortion | <0.9 % |
| Signal-to-noise ratio (at nominal load and peak deviation) | >90 dB |
| AF output LOOP OUT BAL L (I)/ LOOP OUT BAL R (II) | ¼" (6.3 mm) stereo jack socket, balanced |
| Overall device | |
| Temperature range | -10 °C to +55 °C |
| Power supply | 12 V DC |
| Current consumption | max. 350 mA |
| Dimensions | Approx. 202 x 212 x 43 mm |
| Weight | Approx. 980 g |
| EK IEM G4 | |
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency range | GB: 606 - 648 MHz |
| Receiving frequencies | Max. 1680 frequencies, adjustable in 25 kHz steps |
| 20 frequency banks, each with up to 16 factory- preset channels, no intermodulation | |
| 6 frequency banks with up to 16 programmable channels | |
| Switching bandwidth | up to 42 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Receiver principle | Adaptive diversity |
| Sensitivity (with HDX, peak deviation) | < 4 μV, typ. 1.6 μV for 52 dBA |
| Adjacent channel selection | Typically ≥ 65 dB |
| Intermodulation attenuation | Typically ≥ 70 dB |
| Blocking ≥ 80 dB | |
| Squelch 5 to 25 dBµV, adjustable in steps of 2 dB | |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| Signal-to-noise ratio (1 mV, peak deviation) | approx. 90 dBA |
| Total harmonic distortion | ≤ 0.9 % |
| Output power at 2.4 V, 5 % THD, nominal deviation | 2 x 100 mW at 32 Ω |
| High Boost | +8 dB at 80 kHz |
| Limiter | –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off |
| Overall device | |
| Temperature range | -10 °C to +55 °C |
| Power supply | 2 AA batteries, 1.5 V or |
| BA 2015 accupack | |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: approx. 140 mA |
| with transmitter switched off: ≤ 25 µA | |
| Operating time | approx. 4 to 6 hours (depending on volume level) |
| Dimensions | Approx. 82 x 64 x 24 mm |
| Weight | (incl. batteries) approx. 125 g |
