Sennheiser EW-D ME3 SET (U1/5)

Verfügbarkeit: 7-10 days delivery

SKU

SEN-508716

134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
2,240 selectable frequencies allow for fine tuning

780,25 € 624,20 €

Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

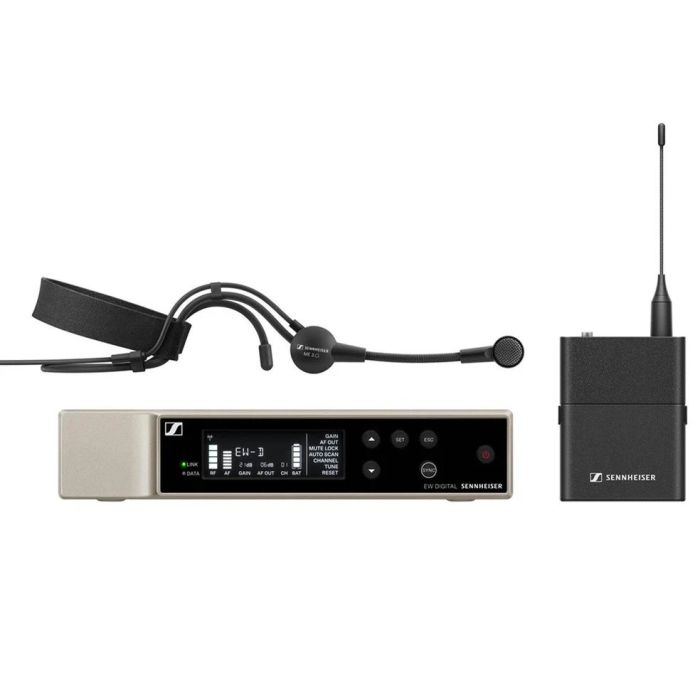

Paket beinhaltet

EW-D EM rack receiver
EW-D SK bodypack transmitter
ME 3 headset microphone (cardioid)
2 rod antennas
power supply with country adapters
rackmount set
4 rubber feet
quick guide
safety guide
manufacturer declaration sheet

Details

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market.

Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems.

Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other.

This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

Versatile and feature-rich digital wireless system for those who speak or presentt that allows for seamless product pairing and management via the EW-D Smart Assist App.

With a metal housing, the robust bodypack transmitter and unobstrusive clip-on microphone ME 3 (cardioid) with high speech intelligibility suit perfectly for daily use on stage.

Mehr Informationen

Frequency range	823.2 - 831.8 MHz & 863.2 - 864.8 MHz
THD, total harmonic distortion	≤ -60 dB for 1 kHz @ -3 dBfs input level
Operating temperature	-10 °C - +55 °C (14 °F - 131 °F)
Audio frequency response	20 Hz - 20 kHz (-3 dB) @ 3 dBfs
System Latency	1.9 ms
Operating relative humidity	5 - 95 % (non-condensing)
Dimensions	212 x 44 x 189 mm
Weight	approx. 1000 g (without antennas and power supply)
Current consumption	≤ 300 mA
Input voltage range	11 - 13 V ⎓
Audio output level	18 dBu max.
Transmission power	BLE: max. 10 mW EIRP
Connector	3.5 mm jack
Frequency response	50 to 18,000 Hz
Max. sound pressure level	150 dB
Cable length	approx. 1.60 m
Pick-up pattern	cardioid
Sensitivity in free field, no load (1kHz)	1.6 mV/Pa
Transducer principle	pre-polarized condensor microphone
Dimensions	63 x 80 x 20 mm (without antenna)
Weight	approx. 120 g
Power supply	2 AA batteries 1.5 V (alkaline manganese)
	or BA 70 rechargeable battery pack
Current consumption	< 300 mA
Input voltage range	2.0 - 4.35 V
Transmission power	Audio link: 10 mW
	ERP (Range Y1-3): 12 mW ERP
	BLE: max. 10 mW EIRP
